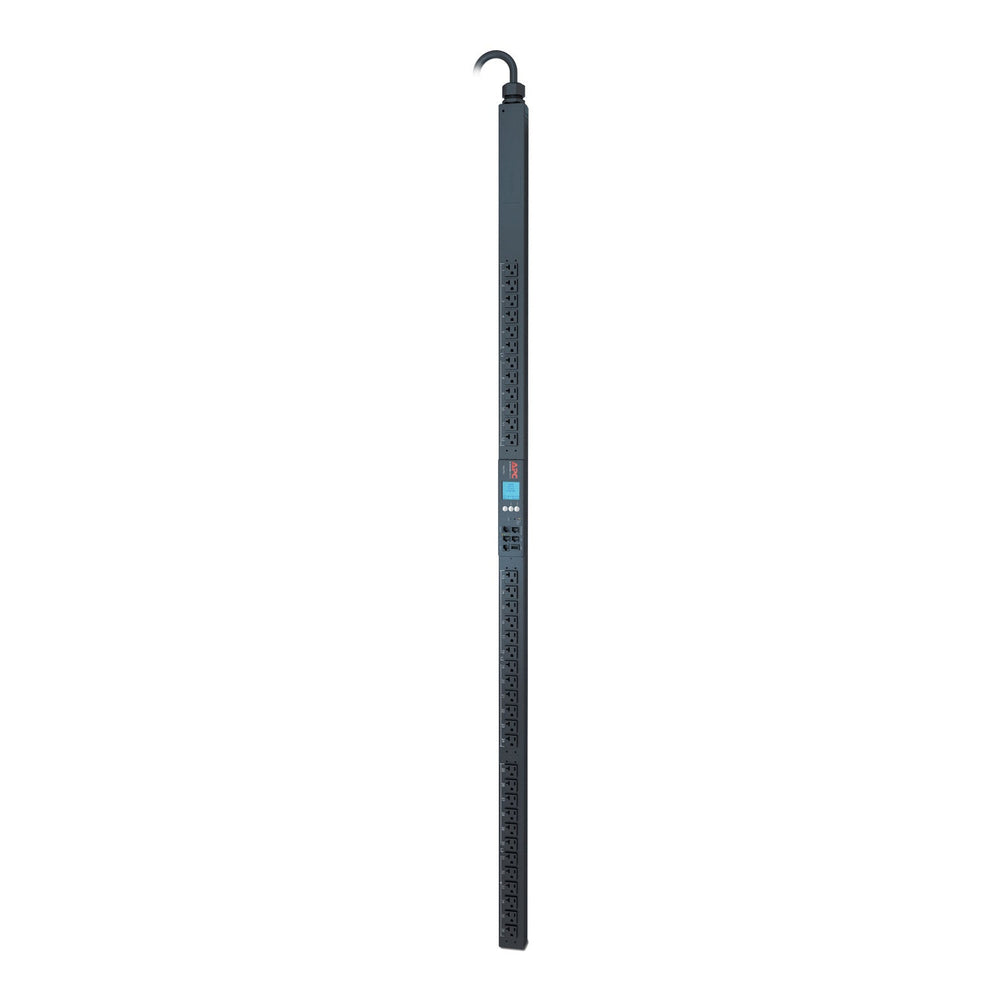

APC AP8862 - NetShelter 0U 5.8kW Metered Rack PDU
APC AP8862 - NetShelter 0U 5.8kW Metered Rack PDU

APC AP8862 - NetShelter 0U 5.8kW Metered Rack PDU

por APC
Desconto de 38%
R$ 17.820,00
R$ 11.100,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 5.8kW / 120/208V 3-Phase, 36x NEMA 5-20R Outlets, 0U Vertical, Real-Time Metered Power Monitoring [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8862
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.51" x 2.17" x 1.73" (1791 x 55 x 44 mm)
Weight 13.32 lb (6.04 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)
[/properties]

[specifications]

PDU Type Metered
Input Voltage 208 V (3 Phase)
Output Voltage 120 V
Input Plug Type NEMA L21-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A
Input Current Limit 20 A
Load Capacity 5760 VA
Outlets 36 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet, InfraStruxure integration
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1
Warranty 2 years repair or replace
[/specifications]

[accesories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]

The APC AP8862 is a NetShelter metered rack PDU engineered for enterprise-class data centers and IT environments. Delivering 5.8kW capacity at 120/208V 3-phase, this 0U vertical PDU features 36 NEMA 5-20R outlets, active metering, and secure remote management. Designed for circuit protection and energy optimization, it provides real-time load visibility, helping IT teams balance loads, prevent overloads, and optimize infrastructure efficiency.

  • Active Metering: Provides real-time monitoring of power usage, enabling smarter capacity planning and load balancing.
  • High Outlet Density: Equipped with 36 NEMA 5-20R outlets to power large rack deployments.
  • 0U Vertical Design: Maximizes rack space while delivering centralized and efficient power distribution.
  • Secure Remote Access: Configurable via Web, SNMP, or Telnet, fully integrated with APC InfraStruxure platforms.
  • Environmental Monitoring: Includes a temperature/humidity sensor port for proactive risk management.
  • Robust Safety Features: Locking IEC receptacles and ultra-low-profile circuit breakers enhance operational reliability.

The AP8862 incorporates second-generation metered PDU technology, enabling precise visibility into real power consumption at the rack level. User-defined alarm thresholds trigger real-time alerts when approaching circuit limits, significantly reducing the risk of unplanned downtime.

With 36 NEMA 5-20R outlets, this PDU supports large-scale IT deployments, powering servers, storage arrays, and network hardware from a single high-capacity unit. Its 0U vertical form factor mounts neatly alongside racks, conserving critical rack space for core IT equipment.

Engineered with a 3-phase 208V input and rated at 20A, the unit delivers up to 5.8kW of load capacity. Integration with APC’s InfraStruxure Central, Operations, and Capacity Manager platforms ensures centralized monitoring, making the AP8862 a reliable component in high-density enterprise environments.

  • Enterprise and hyperscale data centers with high outlet requirements
  • Colocation facilities supporting multi-tenant hardware
  • Network closets with diverse device power needs
  • IT environments needing circuit overload prevention and monitoring

Q1: How is the AP8862 installed?
A: It is a 0U vertical rack PDU with included brackets, designed for side mounting in standard racks without consuming rack units.

Q2: What performance can I expect?
A: The unit delivers 5.8kW at 120/208V 3-phase with 36 outlets. Performance depends on load distribution and environmental conditions.

Q3: How is the PDU managed remotely?
A: The AP8862 supports secure Web, SNMP, and Telnet interfaces, and integrates with APC InfraStruxure Central for centralized visibility and control.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 5.8kW / 120/208V 3-Phase, 36x NEMA 5-20R Outlets, 0U Vertical, Real-Time Metered Power Monitoring [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8862
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.51" x 2.17" x 1.73" (1791 x 55 x 44 mm)
Weight 13.32 lb (6.04 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)
[/properties]

[specifications]

PDU Type Metered
Input Voltage 208 V (3 Phase)
Output Voltage 120 V
Input Plug Type NEMA L21-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A
Input Current Limit 20 A
Load Capacity 5760 VA
Outlets 36 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet, InfraStruxure integration
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1
Warranty 2 years repair or replace
[/specifications]

[accesories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC AP8862 is a NetShelter metered rack PDU engineered for enterprise-class data centers and IT environments. Delivering 5.8kW capacity at 120/208V 3-phase, this 0U vertical PDU features 36 NEMA 5-20R outlets, active metering, and secure remote management. Designed for circuit protection and energy optimization, it provides real-time load visibility, helping IT teams balance loads, prevent overloads, and optimize infrastructure efficiency.

Key Features & Benefits
  • Active Metering: Provides real-time monitoring of power usage, enabling smarter capacity planning and load balancing.
  • High Outlet Density: Equipped with 36 NEMA 5-20R outlets to power large rack deployments.
  • 0U Vertical Design: Maximizes rack space while delivering centralized and efficient power distribution.
  • Secure Remote Access: Configurable via Web, SNMP, or Telnet, fully integrated with APC InfraStruxure platforms.
  • Environmental Monitoring: Includes a temperature/humidity sensor port for proactive risk management.
  • Robust Safety Features: Locking IEC receptacles and ultra-low-profile circuit breakers enhance operational reliability.
Technical Deep Dive

The AP8862 incorporates second-generation metered PDU technology, enabling precise visibility into real power consumption at the rack level. User-defined alarm thresholds trigger real-time alerts when approaching circuit limits, significantly reducing the risk of unplanned downtime.

With 36 NEMA 5-20R outlets, this PDU supports large-scale IT deployments, powering servers, storage arrays, and network hardware from a single high-capacity unit. Its 0U vertical form factor mounts neatly alongside racks, conserving critical rack space for core IT equipment.

Engineered with a 3-phase 208V input and rated at 20A, the unit delivers up to 5.8kW of load capacity. Integration with APC’s InfraStruxure Central, Operations, and Capacity Manager platforms ensures centralized monitoring, making the AP8862 a reliable component in high-density enterprise environments.

Ideal Applications
  • Enterprise and hyperscale data centers with high outlet requirements
  • Colocation facilities supporting multi-tenant hardware
  • Network closets with diverse device power needs
  • IT environments needing circuit overload prevention and monitoring
Frequently Asked Questions (FAQs)

Q1: How is the AP8862 installed?
A: It is a 0U vertical rack PDU with included brackets, designed for side mounting in standard racks without consuming rack units.

Q2: What performance can I expect?
A: The unit delivers 5.8kW at 120/208V 3-phase with 36 outlets. Performance depends on load distribution and environmental conditions.

Q3: How is the PDU managed remotely?
A: The AP8862 supports secure Web, SNMP, and Telnet interfaces, and integrates with APC InfraStruxure Central for centralized visibility and control.
