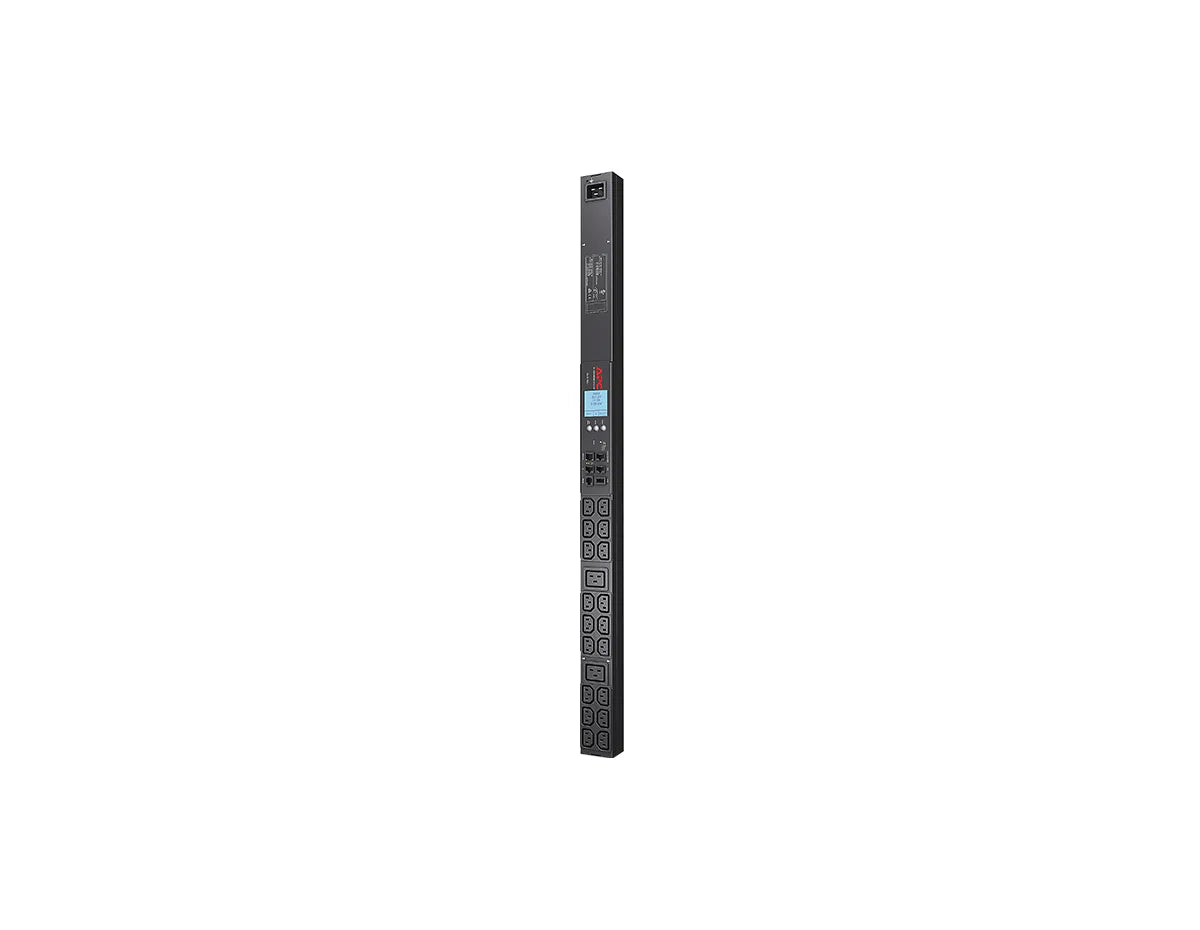

APC AP8858NA3 - Metered Rack PDU 20A 208V 0U with 18 C13 & 2 C19 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8858NA3 - Metered Rack PDU 20A 208V 0U with 18 C13 & 2 C19 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8858NA3 - Metered Rack PDU 20A 208V 0U with 18 C13 & 2 C19 Outlets
APC AP8858NA3 - Metered Rack PDU 20A 208V 0U with 18 C13 & 2 C19 Outlets

APC AP8858NA3 - Metered Rack PDU 20A 208V 0U with 18 C13 & 2 C19 Outlets

por APC
Desconto de 37%
R$ 14.100,00
R$ 8.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

20A / 208V, 0U Vertical PDU, 18x C13 & 2x C19 Outlets, NEMA L6-20P Input, Real Power Monitoring, Web/SNMP/Telnet Access

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8858NA3
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 35.5" x 2.20" x 1.70" (902 x 56 x 44 mm)
Weight 6.46 lb (2.93 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)
[/properties]

[specifications]

PDU Type Metered
Input Voltage 200 V / 208 V / 230 V / 240 V
Output Voltage 208 V
Input Plug Type NEMA L6-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 3300 VA
Outlets 18 × IEC C13, 2 × IEC C19
Communication Ports Web, SNMP, Telnet
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance METI Denan, VDE, CSA C22.2 No. 60950, IEC 60950, UL 60950-1
Warranty 2 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box

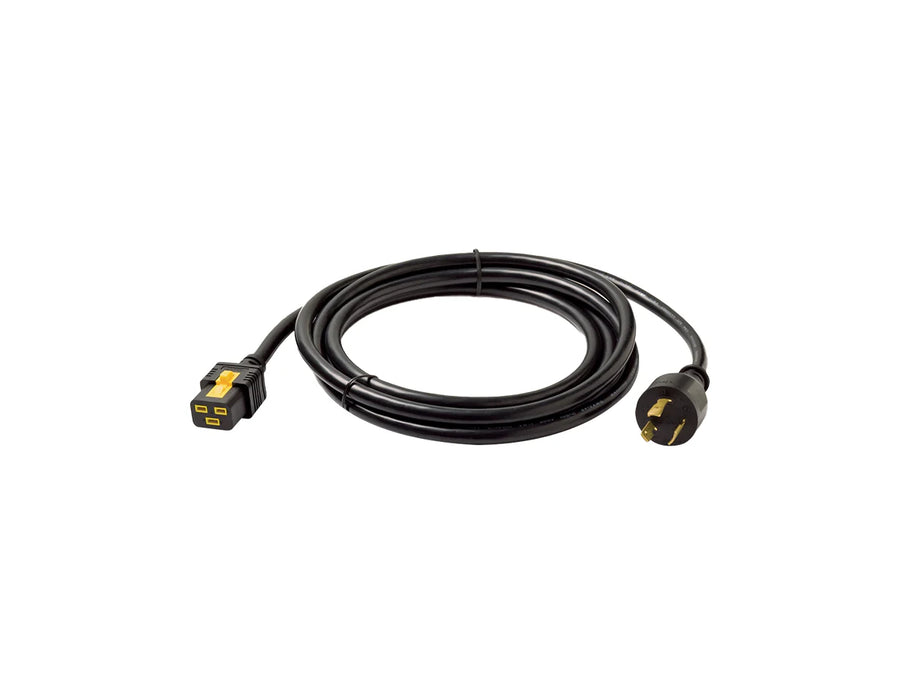

Locking Input Power Cord Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]

The APC AP8858NA3 Metered Rack PDU is engineered to provide reliable, metered power distribution in high-density IT racks. Delivering 20A at 208V in a 0U vertical form factor, it combines energy optimization with advanced monitoring. Featuring locking IEC outlets, ultra-low profile circuit breakers, and user-defined alarm thresholds, this PDU helps prevent overloads while streamlining power management across network hardware.

  • Active Metering: Real-time monitoring enables precise load balancing and improved energy efficiency.
  • Outlet Configuration: 18 IEC C13 and 2 IEC C19 outlets support diverse IT equipment.
  • Secure Remote Access: Manage via Web, SNMP, or Telnet interfaces for centralized control.
  • Locking IEC Outlets: Prevent accidental disconnects, ensuring continuous uptime.
  • Temperature/Humidity Sensor Port: Supports environmental monitoring for proactive management.

The AP8858NA3 leverages APC’s advanced 2G metering technology to provide accurate real power measurements across its 20A, 208V input. This ensures precise energy usage reporting, giving data center managers actionable insights for right-sizing power and reducing costs.

Equipped with ultra-low profile circuit breakers, the unit maximizes usable rack space while delivering protection against overloads. Locking IEC outlets further reinforce reliability by securing connections during high-density deployments.

Remote access via Web, SNMP, or Telnet integrates seamlessly with APC’s centralized platforms such as InfraStruxure Operations and Capacity. This makes the AP8858NA3 ideal for enterprises requiring scalable, network-managed PDUs.

  • High-density data centers requiring metered rack PDUs
  • Enterprise server racks with mixed IEC outlet needs
  • Colocation facilities with strict energy usage tracking
  • Network closets and edge environments with remote management

Q1: How is the AP8858NA3 installed?
A: It mounts vertically in a 0U configuration with included brackets, fitting seamlessly into standard racks.

Q2: What performance can I expect?
A: The unit supports 20A at 208V with a load capacity of 3300VA. Runtime is dependent on connected devices and load distribution.

Q3: How can this PDU be managed?
A: It supports secure Web, SNMP, and Telnet interfaces, along with compatibility for APC’s centralized management platforms.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

20A / 208V, 0U Vertical PDU, 18x C13 & 2x C19 Outlets, NEMA L6-20P Input, Real Power Monitoring, Web/SNMP/Telnet Access

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8858NA3
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 35.5" x 2.20" x 1.70" (902 x 56 x 44 mm)
Weight 6.46 lb (2.93 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)
[/properties]

[specifications]

PDU Type Metered
Input Voltage 200 V / 208 V / 230 V / 240 V
Output Voltage 208 V
Input Plug Type NEMA L6-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 3300 VA
Outlets 18 × IEC C13, 2 × IEC C19
Communication Ports Web, SNMP, Telnet
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance METI Denan, VDE, CSA C22.2 No. 60950, IEC 60950, UL 60950-1
Warranty 2 years repair or replace
[/specifications]

[accessories]

Installation Guide Included in the box
Locking Input Power Cord Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
[/accesories]
Overview

The APC AP8858NA3 Metered Rack PDU is engineered to provide reliable, metered power distribution in high-density IT racks. Delivering 20A at 208V in a 0U vertical form factor, it combines energy optimization with advanced monitoring. Featuring locking IEC outlets, ultra-low profile circuit breakers, and user-defined alarm thresholds, this PDU helps prevent overloads while streamlining power management across network hardware.

Key Features & Benefits
  • Active Metering: Real-time monitoring enables precise load balancing and improved energy efficiency.
  • Outlet Configuration: 18 IEC C13 and 2 IEC C19 outlets support diverse IT equipment.
  • Secure Remote Access: Manage via Web, SNMP, or Telnet interfaces for centralized control.
  • Locking IEC Outlets: Prevent accidental disconnects, ensuring continuous uptime.
  • Temperature/Humidity Sensor Port: Supports environmental monitoring for proactive management.
Technical Deep Dive

The AP8858NA3 leverages APC’s advanced 2G metering technology to provide accurate real power measurements across its 20A, 208V input. This ensures precise energy usage reporting, giving data center managers actionable insights for right-sizing power and reducing costs.

Equipped with ultra-low profile circuit breakers, the unit maximizes usable rack space while delivering protection against overloads. Locking IEC outlets further reinforce reliability by securing connections during high-density deployments.

Remote access via Web, SNMP, or Telnet integrates seamlessly with APC’s centralized platforms such as InfraStruxure Operations and Capacity. This makes the AP8858NA3 ideal for enterprises requiring scalable, network-managed PDUs.

Ideal Applications
  • High-density data centers requiring metered rack PDUs
  • Enterprise server racks with mixed IEC outlet needs
  • Colocation facilities with strict energy usage tracking
  • Network closets and edge environments with remote management
Frequently Asked Questions (FAQs)

Q1: How is the AP8858NA3 installed?
A: It mounts vertically in a 0U configuration with included brackets, fitting seamlessly into standard racks.

Q2: What performance can I expect?
A: The unit supports 20A at 208V with a load capacity of 3300VA. Runtime is dependent on connected devices and load distribution.

Q3: How can this PDU be managed?
A: It supports secure Web, SNMP, and Telnet interfaces, along with compatibility for APC’s centralized management platforms.
