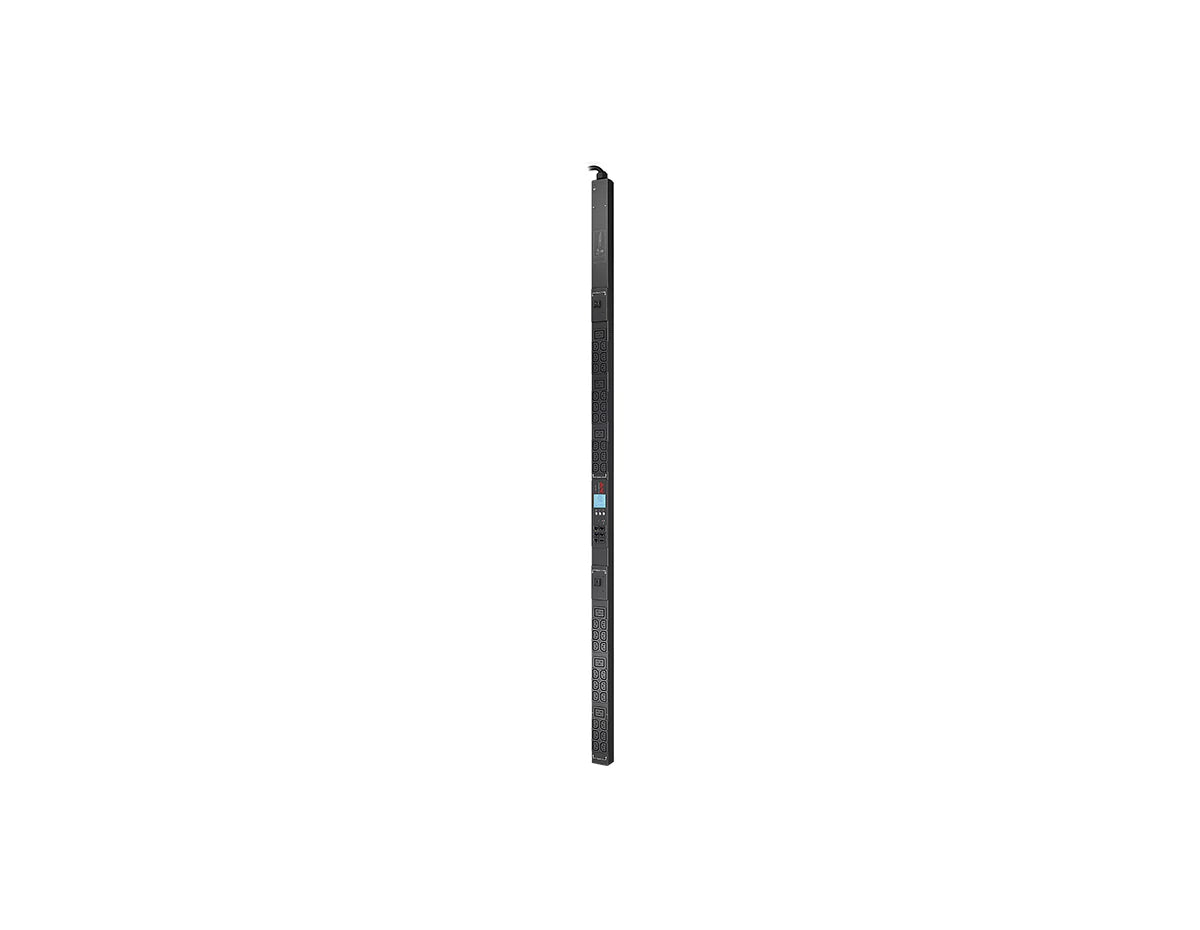

APC AP8841 - 5.0kW Metered Rack PDU 0U 30A with 36 C13 & 6 C19 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8841 - 5.0kW Metered Rack PDU 0U 30A with 36 C13 & 6 C19 Outlets
APC AP8841 - 5.0kW Metered Rack PDU 0U 30A with 36 C13 & 6 C19 Outlets

APC AP8841 - 5.0kW Metered Rack PDU 0U 30A with 36 C13 & 6 C19 Outlets

por APC
Desconto de 33%
R$ 18.120,00
R$ 12.060,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

5.0kW Load Capacity, 0U Vertical Rackmount, 30A NEMA L6-30P Input, 36 C13 & 6 C19 Outlets, Real-Time Metered Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8841
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.5" x 2.20" x 1.70" (1791 x 56 x 44 mm)
Weight 15.08 lb (6.84 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)

[/properties]

[specifications]

PDU Type Metered
Input Voltage 200 V / 208 V
Output Voltage 200 V / 208 V
Input Plug Type NEMA L6-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 4992 VA
Outlets 36 × IEC C13, 6 × IEC C19
Communication Ports Web, SNMP, CLI, Serial configuration
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance METI Denan, PSE, VDE, CSA C22.2 No. 60950, IEC 60950, UL 60950-1
Warranty 2 years repair or replace

[/specifications]

[accesories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box

[/accesories]

The APC NetShelter AP8841 is a metered rack PDU engineered to deliver reliable 5.0kW power distribution for enterprise racks and enclosures. Featuring a space-saving 0U vertical form factor, it provides high-density connectivity with real-time monitoring to prevent overloads and optimize power usage. Designed for data centers and IT facilities, it integrates seamlessly with APC NetShelter enclosures for quick deployment and robust performance.

  • High Density Outlets: 36 x C13 and 6 x C19 ports supply multiple devices in a single rack.
  • Real-Time Metering: View volts, amps, and kWh to monitor energy consumption and prevent overloads.
  • Remote Management: Web, SNMP, and CLI access ensures flexible integration into IT monitoring systems.
  • Locking Receptacles: Secure IEC connections reduce accidental disconnections.
  • Zero-U Design: Maximizes rack space, leaving room for additional hardware.
  • Environmental Port: Supports external sensors (AP9335T/TH) for temperature and humidity tracking.

The AP8841 employs a 30A NEMA L6-30P plug with a 9.5 ft (2.9 m) cord, providing stable 200/208V distribution at up to 4992VA. Its 0U vertical architecture ensures no rack space is sacrificed, an essential factor for high-density IT deployments. Locking C13 and C19 outlets are compatible with locking power cords, preventing power drops from loose connections during maintenance or operation.

Advanced metering technology captures volts, amps, kW, and cumulative kWh data. This helps IT administrators track usage trends, manage power budgets, and reduce downtime caused by overloads. The embedded memory further supports historical data logging for compliance and long-term energy optimization.

Remote connectivity through Web, SNMP, or CLI streamlines monitoring from centralized platforms. Combined with support for environmental monitoring sensors, it provides a complete view of both power and conditions inside the rack.

  • Enterprise data center racks and blade server enclosures
  • Telecom and network distribution rooms
  • High-density IT environments requiring granular power control
  • Colocation facilities with multi-tenant power management

Q1: How is the AP8841 installed?
A: The unit is designed for vertical 0U mounting in APC NetShelter racks, with included brackets and no extra tools required.

Q2: What performance can I expect?
A: It supports up to 5.0kW (4992VA) across 36 C13 and 6 C19 outlets. Runtime depends on connected devices and load profile.

Q3: How can this PDU be managed?
A: Management is enabled via Web, SNMP, and CLI, plus optional sensors for temperature and humidity provide environmental insights.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

5.0kW Load Capacity, 0U Vertical Rackmount, 30A NEMA L6-30P Input, 36 C13 & 6 C19 Outlets, Real-Time Metered Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP8841
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.5" x 2.20" x 1.70" (1791 x 56 x 44 mm)
Weight 15.08 lb (6.84 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)

[/properties]

[specifications]

PDU Type Metered
Input Voltage 200 V / 208 V
Output Voltage 200 V / 208 V
Input Plug Type NEMA L6-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 4992 VA
Outlets 36 × IEC C13, 6 × IEC C19
Communication Ports Web, SNMP, CLI, Serial configuration
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance METI Denan, PSE, VDE, CSA C22.2 No. 60950, IEC 60950, UL 60950-1
Warranty 2 years repair or replace

[/specifications]

[accesories]

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box

[/accesories]

Overview

The APC NetShelter AP8841 is a metered rack PDU engineered to deliver reliable 5.0kW power distribution for enterprise racks and enclosures. Featuring a space-saving 0U vertical form factor, it provides high-density connectivity with real-time monitoring to prevent overloads and optimize power usage. Designed for data centers and IT facilities, it integrates seamlessly with APC NetShelter enclosures for quick deployment and robust performance.

Key Features & Benefits
  • High Density Outlets: 36 x C13 and 6 x C19 ports supply multiple devices in a single rack.
  • Real-Time Metering: View volts, amps, and kWh to monitor energy consumption and prevent overloads.
  • Remote Management: Web, SNMP, and CLI access ensures flexible integration into IT monitoring systems.
  • Locking Receptacles: Secure IEC connections reduce accidental disconnections.
  • Zero-U Design: Maximizes rack space, leaving room for additional hardware.
  • Environmental Port: Supports external sensors (AP9335T/TH) for temperature and humidity tracking.
Technical Deep Dive

The AP8841 employs a 30A NEMA L6-30P plug with a 9.5 ft (2.9 m) cord, providing stable 200/208V distribution at up to 4992VA. Its 0U vertical architecture ensures no rack space is sacrificed, an essential factor for high-density IT deployments. Locking C13 and C19 outlets are compatible with locking power cords, preventing power drops from loose connections during maintenance or operation.

Advanced metering technology captures volts, amps, kW, and cumulative kWh data. This helps IT administrators track usage trends, manage power budgets, and reduce downtime caused by overloads. The embedded memory further supports historical data logging for compliance and long-term energy optimization.

Remote connectivity through Web, SNMP, or CLI streamlines monitoring from centralized platforms. Combined with support for environmental monitoring sensors, it provides a complete view of both power and conditions inside the rack.

Ideal Applications
  • Enterprise data center racks and blade server enclosures
  • Telecom and network distribution rooms
  • High-density IT environments requiring granular power control
  • Colocation facilities with multi-tenant power management
Frequently Asked Questions (FAQs)

Q1: How is the AP8841 installed?
A: The unit is designed for vertical 0U mounting in APC NetShelter racks, with included brackets and no extra tools required.

Q2: What performance can I expect?
A: It supports up to 5.0kW (4992VA) across 36 C13 and 6 C19 outlets. Runtime depends on connected devices and load profile.

Q3: How can this PDU be managed?
A: Management is enabled via Web, SNMP, and CLI, plus optional sensors for temperature and humidity provide environmental insights.
