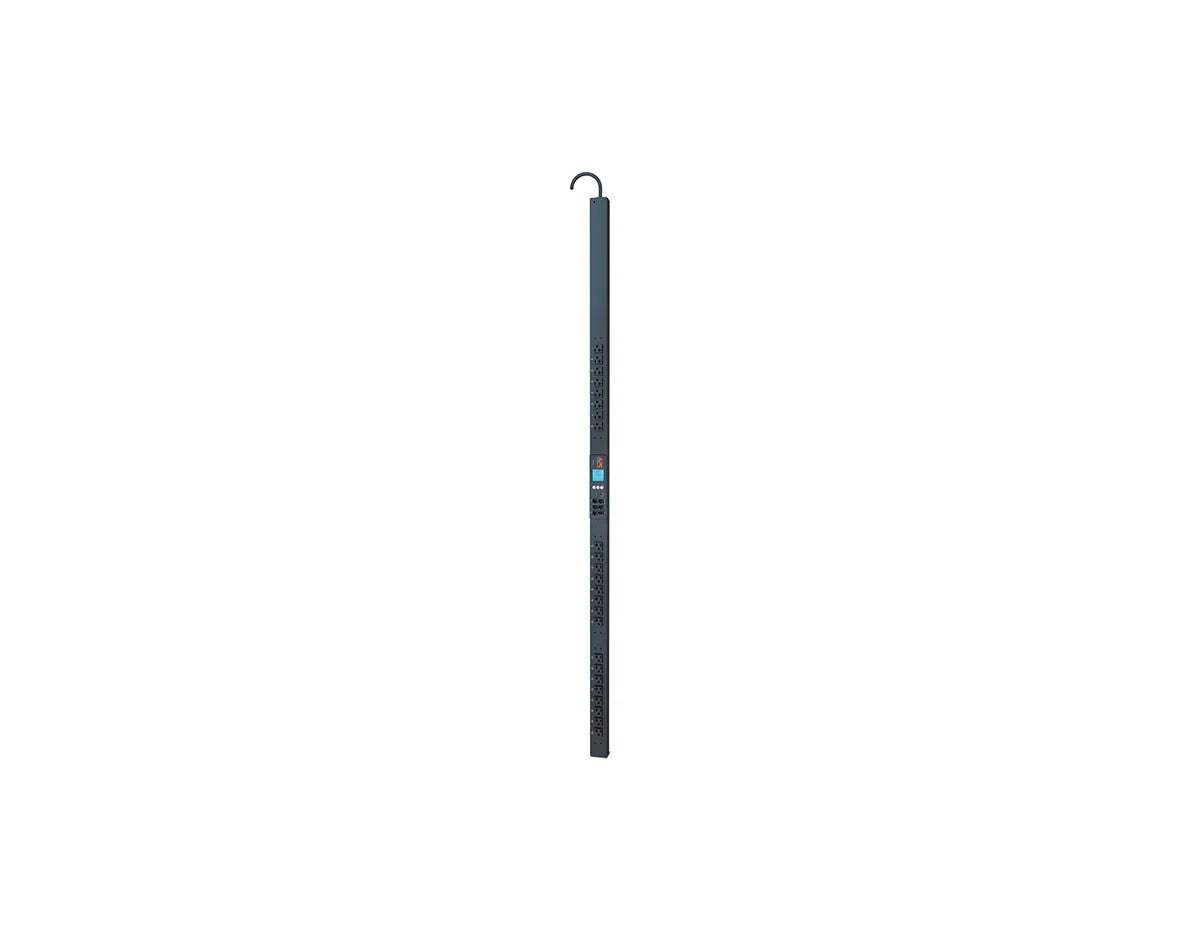

APC AP8830 - Metered Rack PDU 20A 0U with 24 NEMA 5-20R Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP8830 - Metered Rack PDU 20A 0U with 24 NEMA 5-20R Outlets
APC AP8830 - Metered Rack PDU 20A 0U with 24 NEMA 5-20R Outlets

PDU/Régua de Força APC Metered 0U 20A, 24 Tomadas NEMA 5-20R (AP8830)

por APC
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x



20A Input, 0U Vertical Mounting, 24 NEMA 5-20R Outlets, Active Metering, Remote Management via Web/SNMP/Telnet

Brand APC by Schneider Electric
Model AP8830
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.5" x 2.2" x 1.7" (1791 x 55 x 44 mm)
Weight 12.32 lb (5.59 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)
Cooling Not specified
PDU Type Metered
Input Voltage 100 V / 120 V
Output Voltage 100 V / 120 V
Input Plug Type NEMA L5-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Input current limit 20 A)
Load Capacity 1920 VA
Outlets 24 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, RoHS, REACh
Warranty 2 years repair or replace

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box

The APC AP8830 Metered Rack PDU is designed for efficient power distribution in demanding IT environments. Featuring active metering, local and remote monitoring, and 24 NEMA 5-20R outlets, it enables precise energy optimization and proactive circuit protection. Its 0U vertical form factor saves valuable rack space while supporting reliable power for dense server and network deployments.

  • Active Metering: Provides real-time power data for improved load balancing and energy management.
  • User-Defined Alarms: Alerts administrators of potential overloads to prevent downtime.
  • 24 NEMA 5-20R Outlets: High outlet density ensures connectivity for multiple rack-mounted devices.
  • Remote Access: Secure Web, SNMP, and Telnet interfaces streamline monitoring and configuration.
  • Low-Profile Circuit Breakers: Safeguards equipment without sacrificing rack space efficiency.

The AP8830 operates on a 20A input at 100–120V, delivering up to 1920 VA of load capacity. Its integrated active metering continuously monitors power consumption, enabling data-driven insights into rack-level energy use. This functionality assists data center managers in right-sizing IT equipment and optimizing total cost of ownership.

The inclusion of secure remote interfaces—Web, SNMP, and Telnet—allows administrators to access and configure the PDU from anywhere. Combined with APC’s centralized management platforms such as InfraStruxure Central, Operations, Capacity, and Energy Efficiency, this ensures full visibility of power usage and system health.

Equipped with 24 NEMA 5-20R outlets, the PDU maintains secure connectivity while reducing the risk of accidental disconnections. Its ultra-low-profile breakers provide additional protection with minimal rack footprint.

  • Data center racks with dense server deployments
  • Network closets and distribution environments
  • Branch offices requiring energy monitoring
  • IT managers seeking advanced load management

Q1: How is the AP8830 installed?
A: It mounts vertically in a 0U configuration, with included brackets for flexible rack placement.

Q2: What is its load capacity?
A: The AP8830 delivers up to 1920 VA at 20A input. Runtime depends on load and operational environment.

Q3: How can the unit be managed?
A: It supports secure Web, SNMP, and Telnet interfaces and integrates with APC’s InfraStruxure Central for centralized management.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto



20A Input, 0U Vertical Mounting, 24 NEMA 5-20R Outlets, Active Metering, Remote Management via Web/SNMP/Telnet

Brand APC by Schneider Electric
Model AP8830
Product Type NetShelter Metered Rack PDU
Form Factor 0U Vertical
Dimensions (H x W x D) 70.5" x 2.2" x 1.7" (1791 x 55 x 44 mm)
Weight 12.32 lb (5.59 kg)
Color Black
Number of Rack Units 0U
Mounting Mode Rack-mounted (Vertical, Side Mountable)
Cooling Not specified
PDU Type Metered
Input Voltage 100 V / 120 V
Output Voltage 100 V / 120 V
Input Plug Type NEMA L5-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Input current limit 20 A)
Load Capacity 1920 VA
Outlets 24 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet
Operating Temperature 23–140 °F (-5–60 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, RoHS, REACh
Warranty 2 years repair or replace

Installation Guide Included in the box
Rack Mounting Brackets Included in the box
Serial Configuration Cable Included in the box
Safety Guide Included in the box
Overview

The APC AP8830 Metered Rack PDU is designed for efficient power distribution in demanding IT environments. Featuring active metering, local and remote monitoring, and 24 NEMA 5-20R outlets, it enables precise energy optimization and proactive circuit protection. Its 0U vertical form factor saves valuable rack space while supporting reliable power for dense server and network deployments.

Key Features & Benefits
  • Active Metering: Provides real-time power data for improved load balancing and energy management.
  • User-Defined Alarms: Alerts administrators of potential overloads to prevent downtime.
  • 24 NEMA 5-20R Outlets: High outlet density ensures connectivity for multiple rack-mounted devices.
  • Remote Access: Secure Web, SNMP, and Telnet interfaces streamline monitoring and configuration.
  • Low-Profile Circuit Breakers: Safeguards equipment without sacrificing rack space efficiency.
Technical Deep Dive

The AP8830 operates on a 20A input at 100–120V, delivering up to 1920 VA of load capacity. Its integrated active metering continuously monitors power consumption, enabling data-driven insights into rack-level energy use. This functionality assists data center managers in right-sizing IT equipment and optimizing total cost of ownership.

The inclusion of secure remote interfaces—Web, SNMP, and Telnet—allows administrators to access and configure the PDU from anywhere. Combined with APC’s centralized management platforms such as InfraStruxure Central, Operations, Capacity, and Energy Efficiency, this ensures full visibility of power usage and system health.

Equipped with 24 NEMA 5-20R outlets, the PDU maintains secure connectivity while reducing the risk of accidental disconnections. Its ultra-low-profile breakers provide additional protection with minimal rack footprint.

Ideal Applications
  • Data center racks with dense server deployments
  • Network closets and distribution environments
  • Branch offices requiring energy monitoring
  • IT managers seeking advanced load management
Frequently Asked Questions (FAQs)

Q1: How is the AP8830 installed?
A: It mounts vertically in a 0U configuration, with included brackets for flexible rack placement.

Q2: What is its load capacity?
A: The AP8830 delivers up to 1920 VA at 20A input. Runtime depends on load and operational environment.

Q3: How can the unit be managed?
A: It supports secure Web, SNMP, and Telnet interfaces and integrates with APC’s InfraStruxure Central for centralized management.
