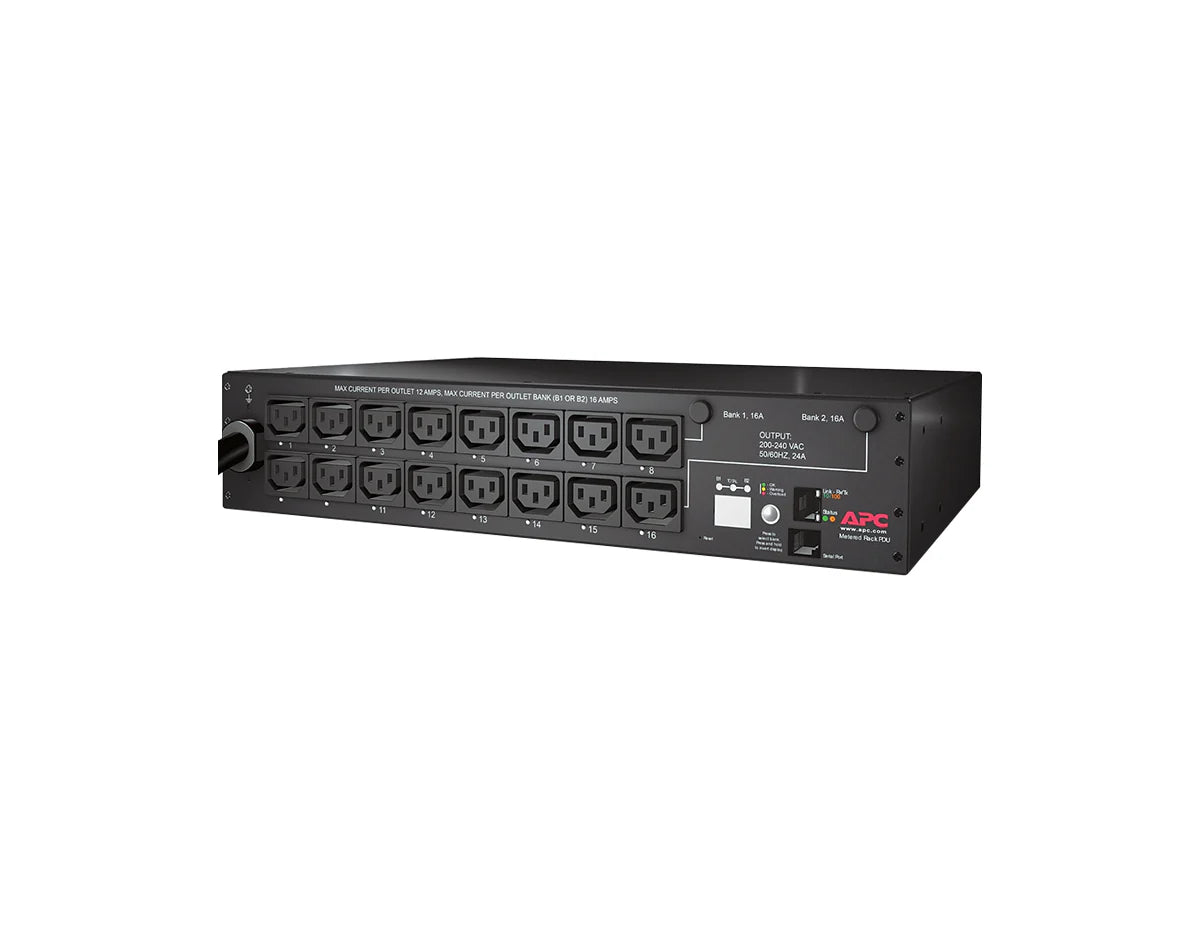

APC AP7911B - Switched Rack PDU 2U 30A 208V 16 C13
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7911B - Switched Rack PDU 2U 30A 208V 16 C13
APC AP7911B - Switched Rack PDU 2U 30A 208V 16 C13

APC AP7911B - Switched Rack PDU 2U 30A 208V 16 C13

por APC
Desconto de 35%
R$ 26.940,00
R$ 17.592,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

2U Switched Rack PDU, 30A Input, 208V Output, 16x IEC C13 Outlets, Horizontal Rack-Mount Design

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7911B
Product Type NetShelter Switched Rack PDU
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.5" x 17.5" x 10.0" (89 x 445 x 254 mm)
Weight 13.93 lb (6.32 kg)
Color Black
Number of Rack Units 2U
Mounting Mode Rack-mounted (Horizontal)
[/properties]

[specifications]

PDU Type Switched
Input Voltage 200 V / 208 V / 230 V
Output Voltage 208 V
Input Plug Type NEMA L6-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 4992 VA
Outlets 16 × IEC C13
Communication Ports Web, SNMP, Telnet
Operating Temperature 32–113 °F (0–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 0–95% non-condensing
Storage Humidity 0–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, Industry Canada, PSE, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950
Warranty 2 years repair or replace
[/specifications]

[accessories]

Documentation CD Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
[/accesories]

The APC AP7911B is a switched rack power distribution unit (PDU) engineered for efficient power delivery in enterprise and data center environments. Featuring 2U horizontal rackmount design, it provides 208V output through 16 C13 outlets with a robust 30A input capacity, ensuring stable and secure power distribution to critical network and IT hardware.

  • Switched PDU: Remote outlet-level control for optimized power management.
  • High Capacity: 30A input supporting up to 4992 VA load for dense rack deployments.
  • 16 C13 Outlets: Compatible with a wide range of IT devices.
  • 2U Rack Design: Space-efficient horizontal mount with front or rear installation flexibility.
  • Reliable Connections: NEMA L6-30P input plug ensures secure high-voltage delivery.

The AP7911B operates on a 200–240V input range with a rated current of 24A, making it ideal for high-demand rack environments. Its switched PDU capability enables IT managers to remotely power-cycle individual outlets, reducing downtime and improving troubleshooting response.

Each of the 16 IEC C13 outlets is engineered for compatibility with servers, switches, and storage units. The unit’s robust load capacity of 4992 VA ensures it can handle dense rack deployments, while its line-rated design provides stability across variable loads.

Constructed with enterprise-grade reliability, the AP7911B meets UL, CSA, and FCC standards, ensuring compliance and consistent performance under demanding conditions.

  • Enterprise server racks
  • Data centers with high-density power needs
  • Network closets requiring remote outlet management
  • Colocation facilities and hosted IT environments

Q1: How is the AP7911B installed?
A: It mounts horizontally in 2U rack space and includes brackets for front or rear installation.

Q2: What performance should I expect?
A: It supports up to 4992 VA with 208V output across 16 C13 outlets. Load capacity varies by connected devices and operating conditions.

Q3: Can the unit be managed remotely?
A: Yes, the switched PDU functionality allows remote outlet control and monitoring, helping improve efficiency and reduce downtime.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

2U Switched Rack PDU, 30A Input, 208V Output, 16x IEC C13 Outlets, Horizontal Rack-Mount Design

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7911B
Product Type NetShelter Switched Rack PDU
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.5" x 17.5" x 10.0" (89 x 445 x 254 mm)
Weight 13.93 lb (6.32 kg)
Color Black
Number of Rack Units 2U
Mounting Mode Rack-mounted (Horizontal)
[/properties]

[specifications]

PDU Type Switched
Input Voltage 200 V / 208 V / 230 V
Output Voltage 208 V
Input Plug Type NEMA L6-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 4992 VA
Outlets 16 × IEC C13
Communication Ports Web, SNMP, Telnet
Operating Temperature 32–113 °F (0–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 0–95% non-condensing
Storage Humidity 0–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, Industry Canada, PSE, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950
Warranty 2 years repair or replace
[/specifications]

[accessories]

Documentation CD Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
[/accesories]
Overview

The APC AP7911B is a switched rack power distribution unit (PDU) engineered for efficient power delivery in enterprise and data center environments. Featuring 2U horizontal rackmount design, it provides 208V output through 16 C13 outlets with a robust 30A input capacity, ensuring stable and secure power distribution to critical network and IT hardware.

Key Features & Benefits
  • Switched PDU: Remote outlet-level control for optimized power management.
  • High Capacity: 30A input supporting up to 4992 VA load for dense rack deployments.
  • 16 C13 Outlets: Compatible with a wide range of IT devices.
  • 2U Rack Design: Space-efficient horizontal mount with front or rear installation flexibility.
  • Reliable Connections: NEMA L6-30P input plug ensures secure high-voltage delivery.
Technical Deep Dive

The AP7911B operates on a 200–240V input range with a rated current of 24A, making it ideal for high-demand rack environments. Its switched PDU capability enables IT managers to remotely power-cycle individual outlets, reducing downtime and improving troubleshooting response.

Each of the 16 IEC C13 outlets is engineered for compatibility with servers, switches, and storage units. The unit’s robust load capacity of 4992 VA ensures it can handle dense rack deployments, while its line-rated design provides stability across variable loads.

Constructed with enterprise-grade reliability, the AP7911B meets UL, CSA, and FCC standards, ensuring compliance and consistent performance under demanding conditions.

Ideal Applications
  • Enterprise server racks
  • Data centers with high-density power needs
  • Network closets requiring remote outlet management
  • Colocation facilities and hosted IT environments
Frequently Asked Questions (FAQs)

Q1: How is the AP7911B installed?
A: It mounts horizontally in 2U rack space and includes brackets for front or rear installation.

Q2: What performance should I expect?
A: It supports up to 4992 VA with 208V output across 16 C13 outlets. Load capacity varies by connected devices and operating conditions.

Q3: Can the unit be managed remotely?
A: Yes, the switched PDU functionality allows remote outlet control and monitoring, helping improve efficiency and reduce downtime.
