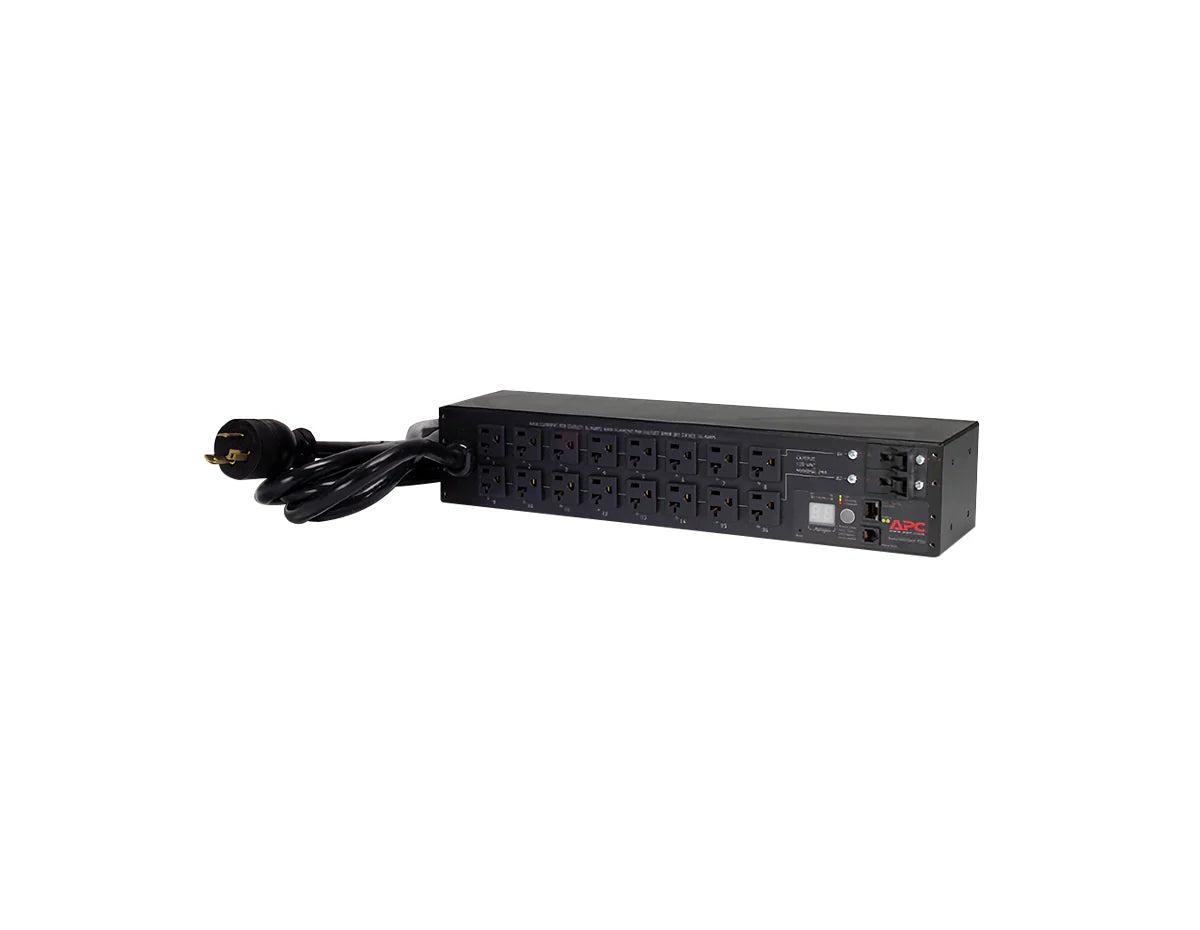

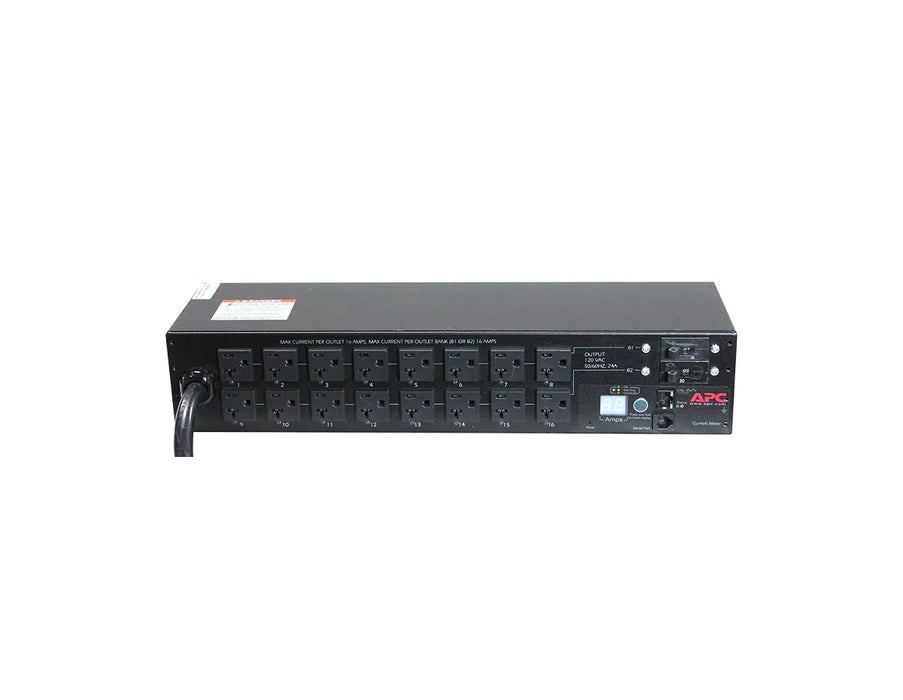

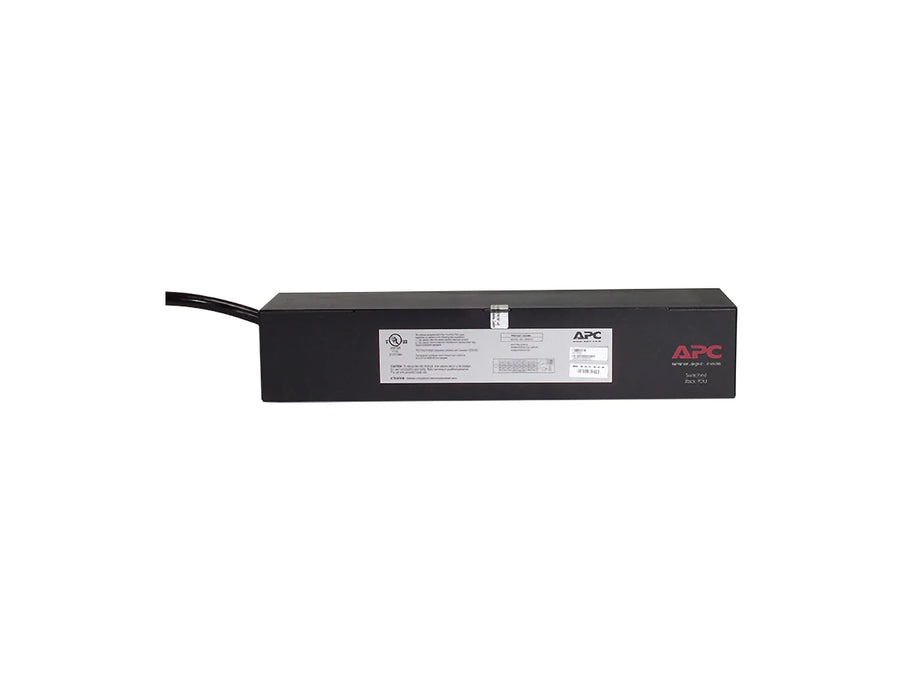

APC AP7902B - Switched Rack PDU 2U 30A 120V with 16 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7902B - Switched Rack PDU 2U 30A 120V with 16 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7902B - Switched Rack PDU 2U 30A 120V with 16 Outlets
APC AP7902B - Switched Rack PDU 2U 30A 120V with 16 Outlets

APC AP7902B - Switched Rack PDU 2U 30A 120V with 16 Outlets

por APC
Desconto de 36%
R$ 27.540,00
R$ 17.640,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

2U Switched PDU, 30A 120V Input, 16 NEMA 5-20R Outlets, Horizontal Mount, Remote Control & Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7902B
Product Type NetShelter Switched Rack PDU
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.5" x 17.5" x 4.5" (89 x 445 x 114 mm)
Weight 9.9 lb (4.5 kg)
Color Black
Number of Rack Units 2U
Mounting Mode Rack-mounted (Horizontal)
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched
Input Voltage 100–120 V
Output Voltage 120 V
Input Plug Type NEMA L5-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 2880 VA
Outlets 16 × NEMA 5-20R
Communication Ports Not specified
Operating Temperature 32–113 °F (0–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 0–95%
Storage Humidity 0–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, Industry Canada, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Horizontal Mounting Brackets Included in the box
User Manual Included in the box
Installation Guide Included in the box
[/accesories]

The APC AP7902B Switched Rack PDU is designed to provide reliable, high-density power distribution with remote on/off outlet control. Built for demanding IT environments, this 2U horizontal PDU supports up to 30A at 120V with 16 managed outlets. Engineered for efficiency, it allows administrators to monitor load levels, optimize usage, and control devices remotely for maximum uptime and operational flexibility.

  • Switched Control: Individual outlet management enables remote power cycling and equipment reboot.
  • High Capacity Design: 30A, 120V input delivers 2880 VA load capacity to critical equipment.
  • 16 NEMA 5-20R Outlets: Supports multiple servers, storage, and networking devices in a rack.
  • Rack-Mount Form Factor: 2U horizontal design fits seamlessly into standard enclosures.
  • Load Monitoring: Provides real-time visibility into current draw for capacity planning.
  • Robust Build: Durable APC construction with cord retention and mounting brackets included.

The AP7902B utilizes switched PDU technology, giving IT managers granular control over each connected load. This functionality is crucial for reducing downtime, as individual outlets can be power-cycled remotely without sending staff on-site.

Its 30A input capacity, combined with 16 NEMA 5-20R outlets, supports diverse rack equipment while ensuring balanced load distribution. Integrated current monitoring helps avoid circuit overload and enables proactive management of rack power usage.

The 2U rackmount design simplifies integration into existing infrastructure, while APC’s engineering standards guarantee consistent, dependable operation across enterprise IT, colocation, and edge environments.

  • Enterprise server racks and IT closets
  • Network and telecom infrastructure
  • Colocation and data center power distribution
  • Edge computing deployments requiring remote management

Q1: How is the AP7902B installed?
A: It mounts horizontally in a 2U rack space using included brackets, with flexible front or rear positioning.

Q2: What performance can I expect?
A: The PDU supports up to 30A at 120V with 2880 VA load capacity across 16 outlets. Runtime depends on connected UPS capacity.

Q3: How can it be managed?
A: Outlets are switchable via remote interfaces, allowing remote reboot, sequencing, and monitoring of connected devices.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

2U Switched PDU, 30A 120V Input, 16 NEMA 5-20R Outlets, Horizontal Mount, Remote Control & Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7902B
Product Type NetShelter Switched Rack PDU
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.5" x 17.5" x 4.5" (89 x 445 x 114 mm)
Weight 9.9 lb (4.5 kg)
Color Black
Number of Rack Units 2U
Mounting Mode Rack-mounted (Horizontal)
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched
Input Voltage 100–120 V
Output Voltage 120 V
Input Plug Type NEMA L5-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Max 30 A)
Load Capacity 2880 VA
Outlets 16 × NEMA 5-20R
Communication Ports Not specified
Operating Temperature 32–113 °F (0–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 0–95%
Storage Humidity 0–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, Industry Canada, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Horizontal Mounting Brackets Included in the box
User Manual Included in the box
Installation Guide Included in the box
[/accesories]
Overview

The APC AP7902B Switched Rack PDU is designed to provide reliable, high-density power distribution with remote on/off outlet control. Built for demanding IT environments, this 2U horizontal PDU supports up to 30A at 120V with 16 managed outlets. Engineered for efficiency, it allows administrators to monitor load levels, optimize usage, and control devices remotely for maximum uptime and operational flexibility.

Key Features & Benefits
  • Switched Control: Individual outlet management enables remote power cycling and equipment reboot.
  • High Capacity Design: 30A, 120V input delivers 2880 VA load capacity to critical equipment.
  • 16 NEMA 5-20R Outlets: Supports multiple servers, storage, and networking devices in a rack.
  • Rack-Mount Form Factor: 2U horizontal design fits seamlessly into standard enclosures.
  • Load Monitoring: Provides real-time visibility into current draw for capacity planning.
  • Robust Build: Durable APC construction with cord retention and mounting brackets included.
Technical Deep Dive

The AP7902B utilizes switched PDU technology, giving IT managers granular control over each connected load. This functionality is crucial for reducing downtime, as individual outlets can be power-cycled remotely without sending staff on-site.

Its 30A input capacity, combined with 16 NEMA 5-20R outlets, supports diverse rack equipment while ensuring balanced load distribution. Integrated current monitoring helps avoid circuit overload and enables proactive management of rack power usage.

The 2U rackmount design simplifies integration into existing infrastructure, while APC’s engineering standards guarantee consistent, dependable operation across enterprise IT, colocation, and edge environments.

Ideal Applications
  • Enterprise server racks and IT closets
  • Network and telecom infrastructure
  • Colocation and data center power distribution
  • Edge computing deployments requiring remote management
Frequently Asked Questions (FAQs)

Q1: How is the AP7902B installed?
A: It mounts horizontally in a 2U rack space using included brackets, with flexible front or rear positioning.

Q2: What performance can I expect?
A: The PDU supports up to 30A at 120V with 2880 VA load capacity across 16 outlets. Runtime depends on connected UPS capacity.

Q3: How can it be managed?
A: Outlets are switchable via remote interfaces, allowing remote reboot, sequencing, and monitoring of connected devices.
