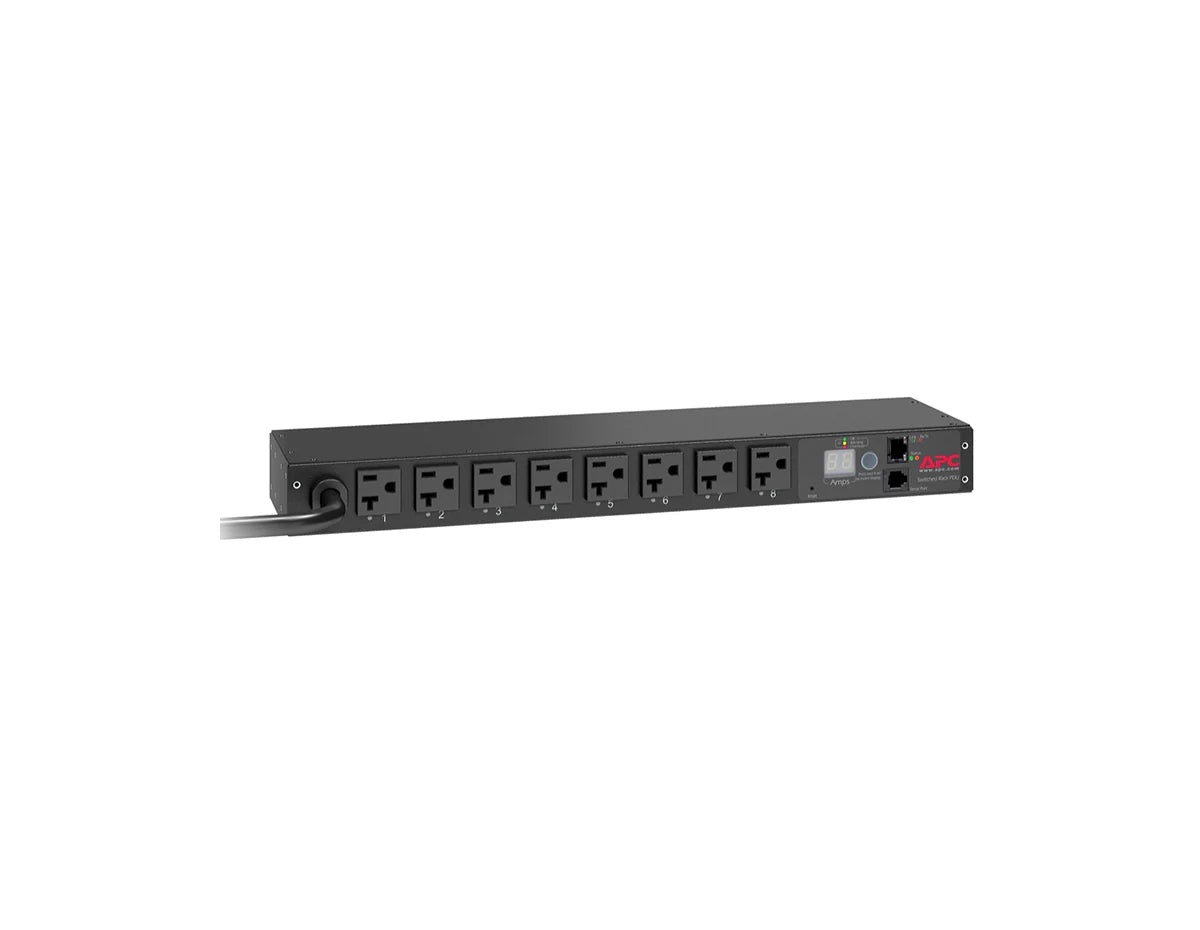

APC AP7901B - 1U Switched Rack PDU 20A 120V with 8 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7901B - 1U Switched Rack PDU 20A 120V with 8 Outlets
APC AP7901B - 1U Switched Rack PDU 20A 120V with 8 Outlets

APC AP7901B - 1U Switched Rack PDU 20A 120V with 8 Outlets

por APC
Desconto de 36%
R$ 19.500,00
R$ 12.432,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

1U Switched Rack PDU, 20A Input, 120V Output, 8 NEMA 5-20R Outlets, NEMA L5-20P Plug, Remote Power Management

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7901B
Product Type NetShelter Switched Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.7" x 17.5" x 4.3" (44 x 445 x 108 mm)
Weight 5.0 lb (2.27 kg)
Color Black
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal)
[/properties]

[specifications]

PDU Type Switched
Input Voltage 100–120 V
Output Voltage 120 V
Input Plug Type NEMA L5-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 1920 VA
Outlets 8 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet
Operating Temperature 32–113 °F (0–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 0–95% non-condensing
Storage Humidity 0–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, Industry Canada, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Horizontal Mounting Brackets Included in the box
User Manual Included in the box
Installation Guide Included in the box
[/accesories]

The APC AP7901B is a rack-mountable switched PDU designed for high-availability IT environments. With 20A input capacity, 120V distribution, and eight controllable outlets, it enables precise power management for servers and network devices. Its 1U horizontal form factor ensures efficient use of rack space while maintaining reliability and flexibility.

  • Switched Control: Enables remote on/off functionality for individual outlets, supporting advanced power management.
  • 1U Rackmount Design: Compact horizontal unit fits seamlessly in standard IT racks.
  • High Load Capacity: Delivers up to 1920 VA across 8 NEMA 5-20R outlets.
  • Durable Build: Engineered with robust design for continuous data center operations.
  • Remote Power Access: Ideal for managing distributed IT deployments with minimal on-site intervention.

The AP7901B utilizes switched PDU architecture, providing granular control over each of its 8 outlets. This allows IT teams to remotely reboot unresponsive hardware without dispatching on-site technicians, reducing downtime and costs.

Its NEMA L5-20P plug and 20A rated input ensure reliable connectivity to facility power. With 100–120V operating range and 50/60Hz frequency support, it integrates smoothly into diverse North American data center and network environments.

The compact 1U design maximizes rack density while maintaining accessibility. By combining high-current delivery with intelligent switching, it balances efficiency with reliability for mission-critical workloads.

  • Small to medium data centers requiring remote outlet control
  • Server racks supporting virtualization and high-density compute
  • Network closets distributing managed power to switches and routers
  • Branch offices with limited IT staff presence

Q1: How is the AP7901B installed?
A: It is a 1U rack-mounted PDU with included horizontal brackets, suitable for front or rear installation.

Q2: What performance can I expect?
A: It supports up to 1920 VA load capacity with 20A input. Runtime depends on upstream UPS or power source and load configuration.

Q3: How is the unit managed?
A: Each of the 8 outlets can be switched remotely, enabling power cycling, load management, and improved operational efficiency.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

1U Switched Rack PDU, 20A Input, 120V Output, 8 NEMA 5-20R Outlets, NEMA L5-20P Plug, Remote Power Management

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7901B
Product Type NetShelter Switched Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.7" x 17.5" x 4.3" (44 x 445 x 108 mm)
Weight 5.0 lb (2.27 kg)
Color Black
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal)
[/properties]

[specifications]

PDU Type Switched
Input Voltage 100–120 V
Output Voltage 120 V
Input Plug Type NEMA L5-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 1920 VA
Outlets 8 × NEMA 5-20R
Communication Ports Web, SNMP, Telnet
Operating Temperature 32–113 °F (0–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 0–95% non-condensing
Storage Humidity 0–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, Industry Canada, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Horizontal Mounting Brackets Included in the box
User Manual Included in the box
Installation Guide Included in the box
[/accesories]
Overview

The APC AP7901B is a rack-mountable switched PDU designed for high-availability IT environments. With 20A input capacity, 120V distribution, and eight controllable outlets, it enables precise power management for servers and network devices. Its 1U horizontal form factor ensures efficient use of rack space while maintaining reliability and flexibility.

Key Features & Benefits
  • Switched Control: Enables remote on/off functionality for individual outlets, supporting advanced power management.
  • 1U Rackmount Design: Compact horizontal unit fits seamlessly in standard IT racks.
  • High Load Capacity: Delivers up to 1920 VA across 8 NEMA 5-20R outlets.
  • Durable Build: Engineered with robust design for continuous data center operations.
  • Remote Power Access: Ideal for managing distributed IT deployments with minimal on-site intervention.
Technical Deep Dive

The AP7901B utilizes switched PDU architecture, providing granular control over each of its 8 outlets. This allows IT teams to remotely reboot unresponsive hardware without dispatching on-site technicians, reducing downtime and costs.

Its NEMA L5-20P plug and 20A rated input ensure reliable connectivity to facility power. With 100–120V operating range and 50/60Hz frequency support, it integrates smoothly into diverse North American data center and network environments.

The compact 1U design maximizes rack density while maintaining accessibility. By combining high-current delivery with intelligent switching, it balances efficiency with reliability for mission-critical workloads.

Ideal Applications
  • Small to medium data centers requiring remote outlet control
  • Server racks supporting virtualization and high-density compute
  • Network closets distributing managed power to switches and routers
  • Branch offices with limited IT staff presence
Frequently Asked Questions (FAQs)

Q1: How is the AP7901B installed?
A: It is a 1U rack-mounted PDU with included horizontal brackets, suitable for front or rear installation.

Q2: What performance can I expect?
A: It supports up to 1920 VA load capacity with 20A input. Runtime depends on upstream UPS or power source and load configuration.

Q3: How is the unit managed?
A: Each of the 8 outlets can be switched remotely, enabling power cycling, load management, and improved operational efficiency.
