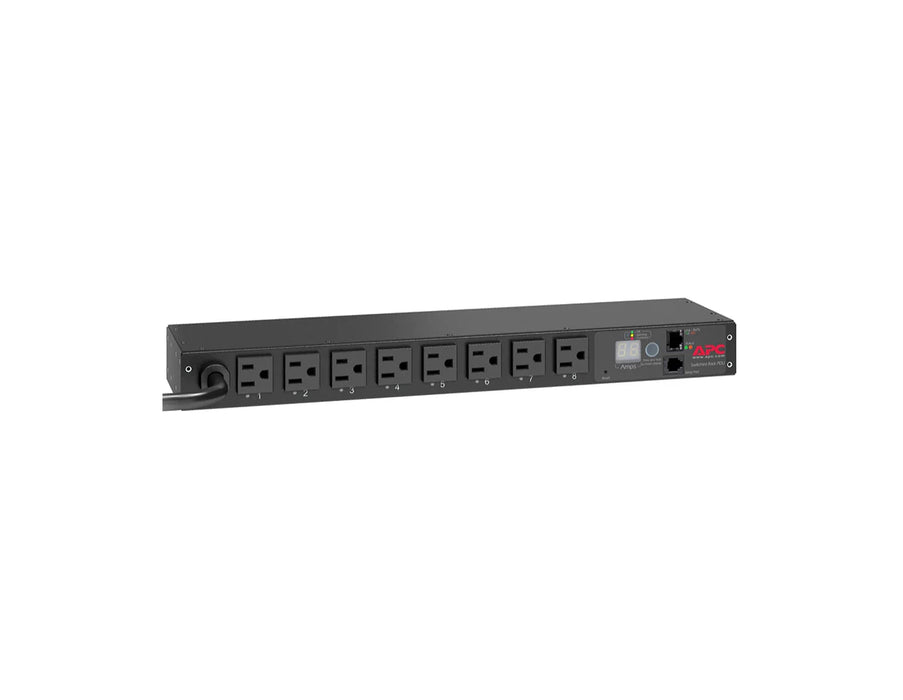

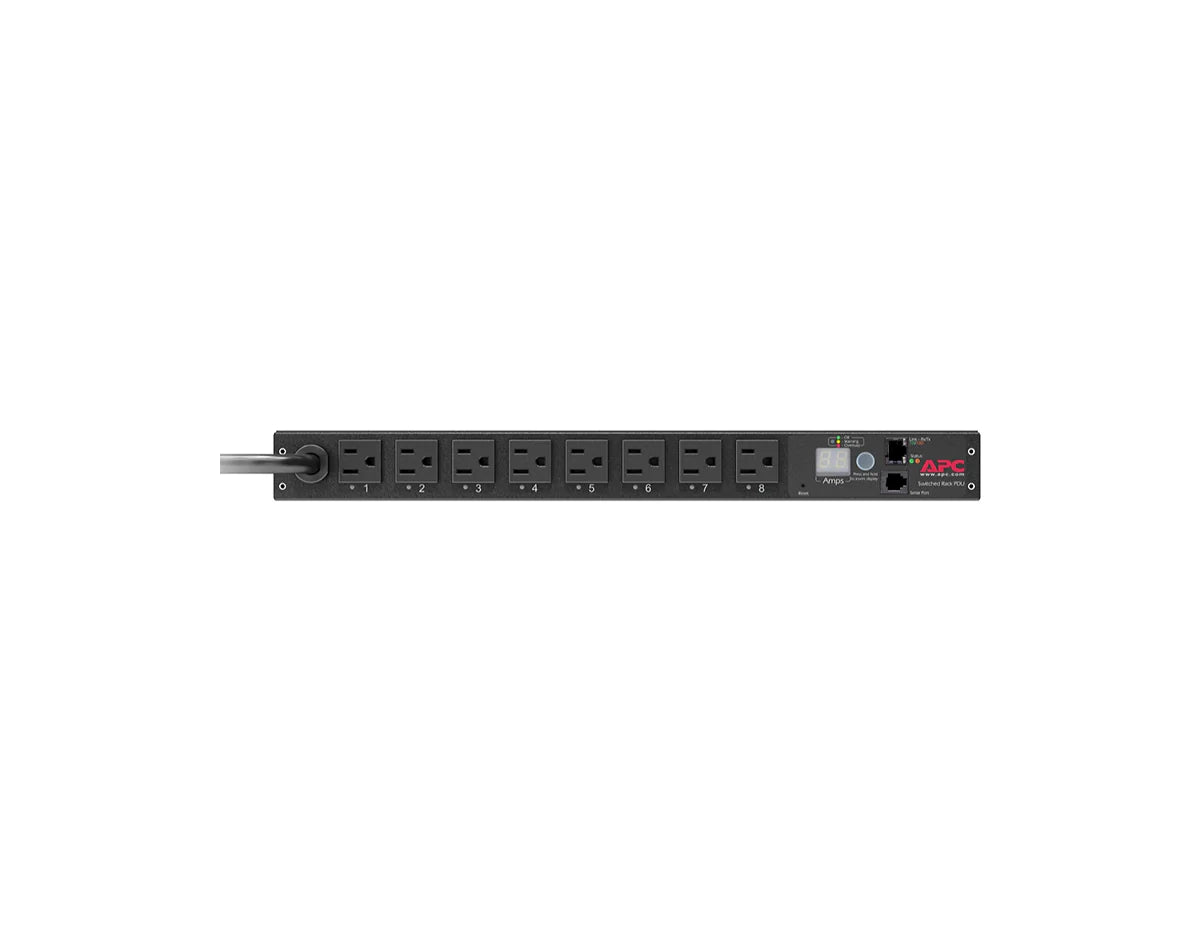

APC AP7900B - Switched Rack PDU 1U 1.4kW 120V 15A 8 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7900B - Switched Rack PDU 1U 1.4kW 120V 15A 8 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7900B - Switched Rack PDU 1U 1.4kW 120V 15A 8 Outlets
APC AP7900B - Switched Rack PDU 1U 1.4kW 120V 15A 8 Outlets

APC AP7900B - Switched Rack PDU 1U 1.4kW 120V 15A 8 Outlets

por APC
Desconto de 36%
R$ 17.280,00
R$ 11.040,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

1.4kW / 120V / 15A, 1U Switched Rack PDU, 8 NEMA 5-15R Outlets, Remote Monitoring & Outlet Control

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7900B
Product Type NetShelter Switched Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.7" x 17.5" x 4.3" (44 x 445 x 108 mm)
Weight 5.004 lb (2.27 kg)
Color Black
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal)
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched
Input Voltage 100–120 V
Output Voltage 120 V
Input Plug Type NEMA 5-15P
Input Frequency 50/60 Hz
Line Rated Current 12 A (Max 15 A)
Load Capacity 1440 VA
Outlets 8 × NEMA 5-15R
Communication Ports Network Management (Remote monitoring & control)
Operating Temperature 32–113 °F (0–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 0–95%
Storage Humidity 0–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Horizontal Mounting Brackets Included in the box
User Manual Included in the box
Installation Guide Included in the box
[/accesories]

[specifications]

[/specifications]

The APC AP7900B is a 1U switched rack power distribution unit designed for efficient and secure power management in IT environments. Delivering 1.4kW of capacity with 8 NEMA 5-15R outlets, it provides advanced control features such as remote monitoring, outlet-level switching, and local current metering to help prevent overloads and streamline operations.

  • Remote Outlet Control: Power cycle, sequence, or shut down outlets from anywhere.
  • Local Current Monitoring: Prevent overloads with real-time load visibility via front display.
  • Multi-Tier User Access: Restrict outlet control to authorized personnel only.
  • Compact 1U Design: Maximizes rack space with horizontal mounting options.
  • Secure Installation: Includes cord retention and mounting hardware for stability.

The AP7900B operates within a 100–120V input range and supports a 15A load with a 1.4kW capacity. This ensures reliable distribution of conditioned power across critical IT hardware without risk of downtime caused by overload.

Integrated remote management enables administrators to monitor and control each of the 8 outlets individually. This allows load balancing, scheduled power cycling, and fast remote rebooting of servers and network devices without onsite intervention.

The built-in current meter offers immediate visual alerts in case of excessive load, supporting proactive maintenance and operational resilience in dense rack environments.

  • Small to mid-size server racks
  • Network closets and branch office IT
  • Edge computing and distributed infrastructure
  • Enterprise labs and test environments

Q1: How is the AP7900B installed?
A: It is a 1U horizontal rackmount PDU and comes with brackets and cord retention hardware for flexible mounting.

Q2: What performance can I expect?
A: It delivers up to 1.4kW at 120V with 8 NEMA 5-15R outlets. Runtime depends on connected UPS systems and load levels.

Q3: How can the PDU be managed?
A: It supports remote network-based management for outlet-level control and includes a local LCD for live current monitoring.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

1.4kW / 120V / 15A, 1U Switched Rack PDU, 8 NEMA 5-15R Outlets, Remote Monitoring & Outlet Control

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7900B
Product Type NetShelter Switched Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.7" x 17.5" x 4.3" (44 x 445 x 108 mm)
Weight 5.004 lb (2.27 kg)
Color Black
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal)
Cooling Not specified
[/properties]

[specifications]

PDU Type Switched
Input Voltage 100–120 V
Output Voltage 120 V
Input Plug Type NEMA 5-15P
Input Frequency 50/60 Hz
Line Rated Current 12 A (Max 15 A)
Load Capacity 1440 VA
Outlets 8 × NEMA 5-15R
Communication Ports Network Management (Remote monitoring & control)
Operating Temperature 32–113 °F (0–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 0–95%
Storage Humidity 0–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Horizontal Mounting Brackets Included in the box
User Manual Included in the box
Installation Guide Included in the box
[/accesories]

[specifications]

[/specifications]

Overview

The APC AP7900B is a 1U switched rack power distribution unit designed for efficient and secure power management in IT environments. Delivering 1.4kW of capacity with 8 NEMA 5-15R outlets, it provides advanced control features such as remote monitoring, outlet-level switching, and local current metering to help prevent overloads and streamline operations.

Key Features & Benefits
  • Remote Outlet Control: Power cycle, sequence, or shut down outlets from anywhere.
  • Local Current Monitoring: Prevent overloads with real-time load visibility via front display.
  • Multi-Tier User Access: Restrict outlet control to authorized personnel only.
  • Compact 1U Design: Maximizes rack space with horizontal mounting options.
  • Secure Installation: Includes cord retention and mounting hardware for stability.
Technical Deep Dive

The AP7900B operates within a 100–120V input range and supports a 15A load with a 1.4kW capacity. This ensures reliable distribution of conditioned power across critical IT hardware without risk of downtime caused by overload.

Integrated remote management enables administrators to monitor and control each of the 8 outlets individually. This allows load balancing, scheduled power cycling, and fast remote rebooting of servers and network devices without onsite intervention.

The built-in current meter offers immediate visual alerts in case of excessive load, supporting proactive maintenance and operational resilience in dense rack environments.

Ideal Applications
  • Small to mid-size server racks
  • Network closets and branch office IT
  • Edge computing and distributed infrastructure
  • Enterprise labs and test environments
Frequently Asked Questions (FAQs)

Q1: How is the AP7900B installed?
A: It is a 1U horizontal rackmount PDU and comes with brackets and cord retention hardware for flexible mounting.

Q2: What performance can I expect?
A: It delivers up to 1.4kW at 120V with 8 NEMA 5-15R outlets. Runtime depends on connected UPS systems and load levels.

Q3: How can the PDU be managed?
A: It supports remote network-based management for outlet-level control and includes a local LCD for live current monitoring.
