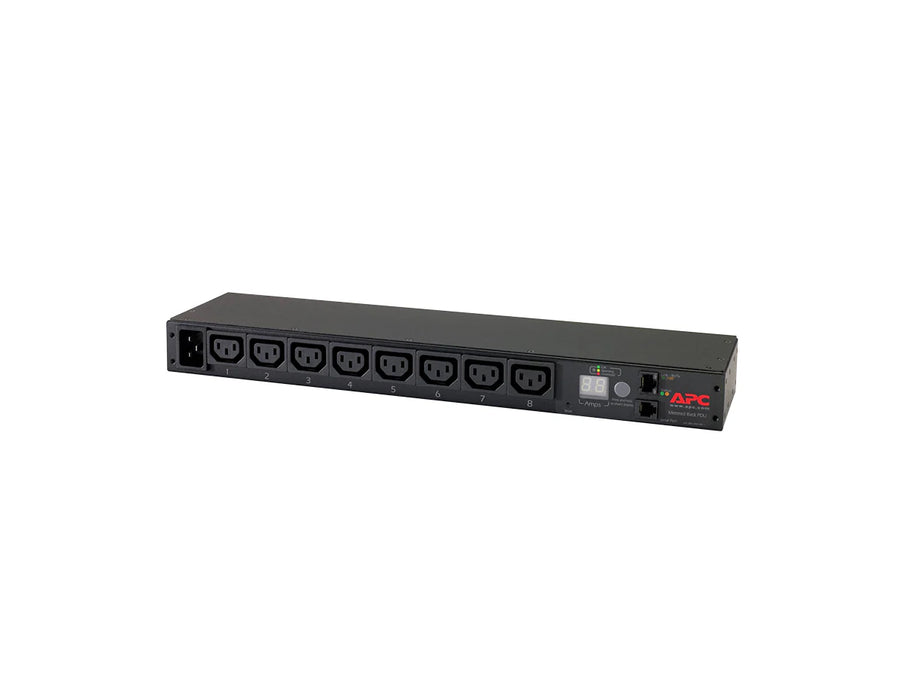

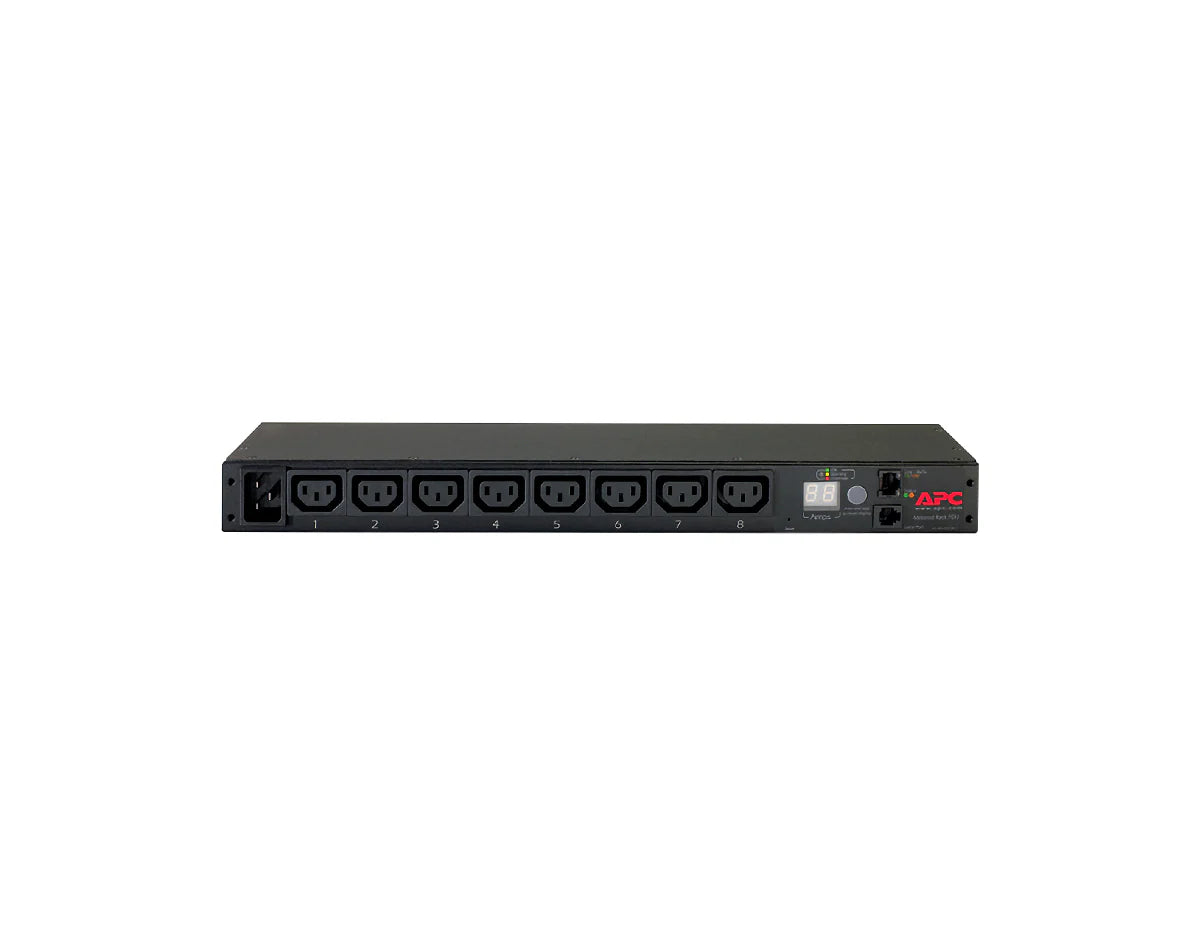

APC AP7821B - NetShelter Metered Rack PDU 1U 16A 208/230V
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7821B - NetShelter Metered Rack PDU 1U 16A 208/230V
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7821B - NetShelter Metered Rack PDU 1U 16A 208/230V
APC AP7821B - NetShelter Metered Rack PDU 1U 16A 208/230V

APC AP7821B - NetShelter Metered Rack PDU 1U 16A 208/230V

por APC
R$ 13.440,00
R$ 8.820,00
Pedir por e-mail
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

1U, 16A, 208/230V, 8x IEC C13 Outlets, Metered PDU, Horizontal Rack Mount, IEC C20 Input

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7821B
Product Type NetShelter Metered Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.70" x 17.50" x 4.02" (44 x 444 x 102 mm)
Weight 3.84 lb (1.74 kg)
Color Black
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal, Front/Rear)
[/properties]

[specifications]

PDU Type Metered
Input Voltage 200 V / 208 V / 230 V
Output Voltage 208 V / 230 V
Input Plug Type IEC 60320 C20
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 3300 VA
Outlets 8 × IEC C13
Communication Ports None (local metering only)
Operating Temperature 23–113 °F (-5–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, C-tick, CE, CSA, GOST, UL Listed, VCCI, VDE, FCC Part 15 Class A, ICES-003, UL 60950
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
User Manual Included in the box
[/accesories]

[specifications]

[/specifications]

The APC AP7821B NetShelter Metered Rack PDU provides dependable power distribution in a slim 1U design. With 8 IEC C13 outlets, 16A capacity, and support for 208/230V input, it is engineered to simplify energy management across servers and network devices in enterprise racks.

  • Metered Power Distribution: Enables accurate load monitoring to prevent circuit overloads.
  • 1U Horizontal Rackmount: Saves space while delivering efficient rack integration.
  • 16A Capacity: Supports demanding IT and networking equipment loads up to 3300VA.
  • 8 IEC C13 Outlets: Distributes power to multiple devices in a secure, consolidated way.
  • IEC C20 Input: Standardized input plug for compatibility with global data center setups.
  • Durable Build: Built for reliable operation in data centers and edge environments.

This 1U rack-mounted metered PDU offers precise power monitoring at the aggregate level, allowing administrators to track consumption trends and optimize power usage. Its 16A load capacity makes it ideal for energy-conscious IT teams seeking efficiency in dense rack environments.

The eight IEC C13 outlets provide flexible connectivity for servers, switches, and other network hardware, while the IEC C20 plug ensures compatibility with standard power feeds. By combining compact design with load visibility, the AP7821B enables better uptime planning and safer operation under varying workloads.

Designed with robust electrical standards compliance, it meets certifications including UL, CE, and CSA, ensuring global deployment confidence.

  • Enterprise server racks and colocation facilities
  • Network closets requiring centralized distribution
  • High-density IT deployments in data centers
  • Telecommunications and edge computing environments

Q1: How is the AP7821B installed?
A: It mounts horizontally in a 1U rack space with included brackets for front or rear placement.

Q2: What performance can I expect?
A: The PDU supports 16A at 208/230V, delivering up to 3300VA total load. Actual performance depends on connected devices and environmental conditions.

Q3: How can usage be managed?
A: It features a metered display for real-time load measurement, helping prevent overloads and enabling efficient power distribution planning.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

1U, 16A, 208/230V, 8x IEC C13 Outlets, Metered PDU, Horizontal Rack Mount, IEC C20 Input

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7821B
Product Type NetShelter Metered Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.70" x 17.50" x 4.02" (44 x 444 x 102 mm)
Weight 3.84 lb (1.74 kg)
Color Black
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal, Front/Rear)
[/properties]

[specifications]

PDU Type Metered
Input Voltage 200 V / 208 V / 230 V
Output Voltage 208 V / 230 V
Input Plug Type IEC 60320 C20
Input Frequency 50/60 Hz
Line Rated Current 16 A (Max 20 A)
Load Capacity 3300 VA
Outlets 8 × IEC C13
Communication Ports None (local metering only)
Operating Temperature 23–113 °F (-5–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, C-tick, CE, CSA, GOST, UL Listed, VCCI, VDE, FCC Part 15 Class A, ICES-003, UL 60950
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
User Manual Included in the box
[/accesories]

[specifications]

[/specifications]

Overview

The APC AP7821B NetShelter Metered Rack PDU provides dependable power distribution in a slim 1U design. With 8 IEC C13 outlets, 16A capacity, and support for 208/230V input, it is engineered to simplify energy management across servers and network devices in enterprise racks.

Key Features & Benefits
  • Metered Power Distribution: Enables accurate load monitoring to prevent circuit overloads.
  • 1U Horizontal Rackmount: Saves space while delivering efficient rack integration.
  • 16A Capacity: Supports demanding IT and networking equipment loads up to 3300VA.
  • 8 IEC C13 Outlets: Distributes power to multiple devices in a secure, consolidated way.
  • IEC C20 Input: Standardized input plug for compatibility with global data center setups.
  • Durable Build: Built for reliable operation in data centers and edge environments.
Technical Deep Dive

This 1U rack-mounted metered PDU offers precise power monitoring at the aggregate level, allowing administrators to track consumption trends and optimize power usage. Its 16A load capacity makes it ideal for energy-conscious IT teams seeking efficiency in dense rack environments.

The eight IEC C13 outlets provide flexible connectivity for servers, switches, and other network hardware, while the IEC C20 plug ensures compatibility with standard power feeds. By combining compact design with load visibility, the AP7821B enables better uptime planning and safer operation under varying workloads.

Designed with robust electrical standards compliance, it meets certifications including UL, CE, and CSA, ensuring global deployment confidence.

Ideal Applications
  • Enterprise server racks and colocation facilities
  • Network closets requiring centralized distribution
  • High-density IT deployments in data centers
  • Telecommunications and edge computing environments
Frequently Asked Questions (FAQs)

Q1: How is the AP7821B installed?
A: It mounts horizontally in a 1U rack space with included brackets for front or rear placement.

Q2: What performance can I expect?
A: The PDU supports 16A at 208/230V, delivering up to 3300VA total load. Actual performance depends on connected devices and environmental conditions.

Q3: How can usage be managed?
A: It features a metered display for real-time load measurement, helping prevent overloads and enabling efficient power distribution planning.
