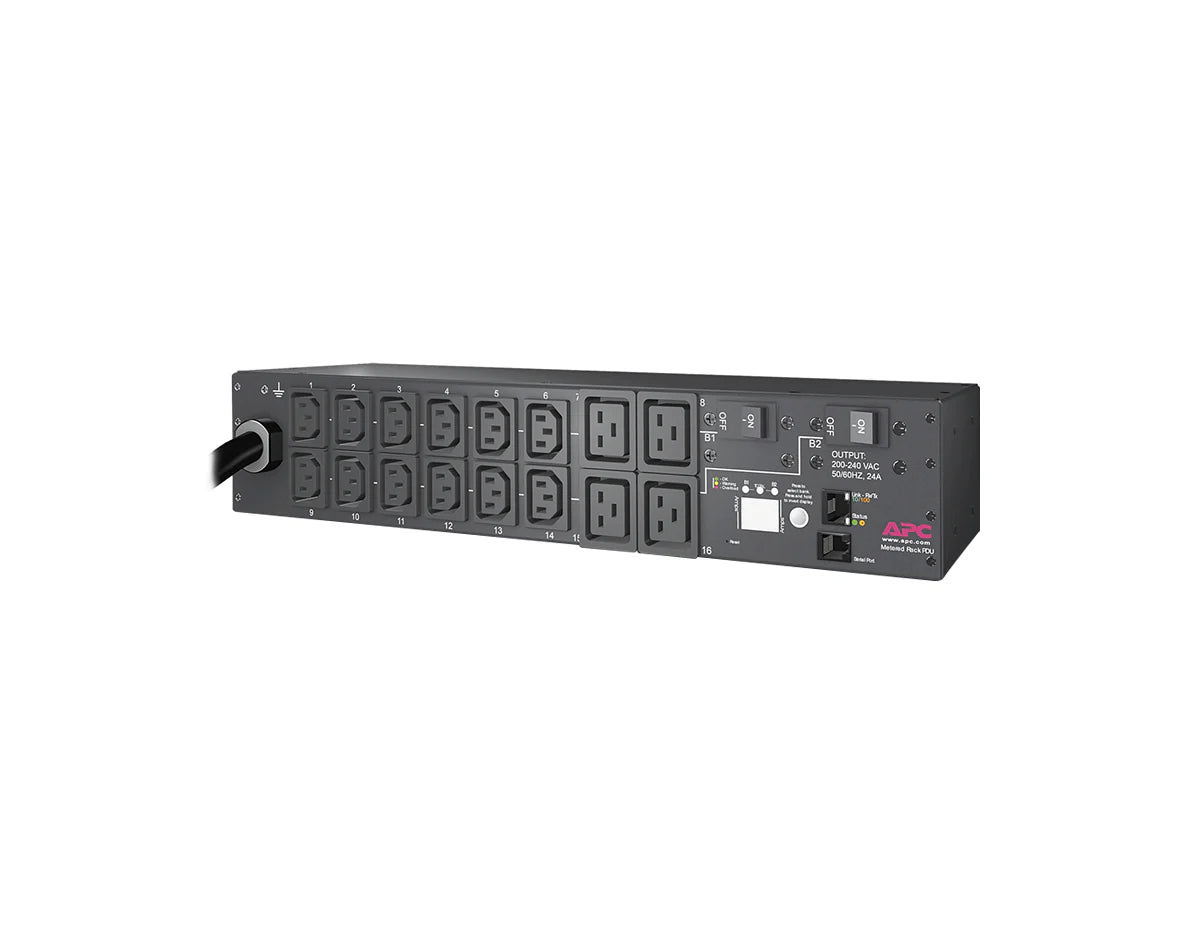

APC AP7811B - NetShelter Metered 2U Rack PDU 5.0kW 208V 30A
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7811B - NetShelter Metered 2U Rack PDU 5.0kW 208V 30A
APC AP7811B - NetShelter Metered 2U Rack PDU 5.0kW 208V 30A

APC AP7811B - NetShelter Metered 2U Rack PDU 5.0kW 208V 30A

por APC
Desconto de 35%
R$ 21.600,00
R$ 14.088,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

2U Rack PDU, 5.0kW Capacity, 208V 30A Input, 12x IEC C13 & 4x IEC C19 Outlets, NEMA L6-30P Plug

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7811B
Product Type NetShelter Metered Rack PDU
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.5" x 17.5" x 4.4" (88 x 444 x 112 mm)
Weight 7.41 lb (3.36 kg)
Color Black
Number of Rack Units 2U
Mounting Mode Rack-mounted (Horizontal, Front or Rear)
Cooling Not specified
[/properties]

[specifications]

PDU Type Metered
Input Voltage 200 V / 208 V / 230 V
Output Voltage 208 V
Input Plug Type NEMA L6-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Input current limit 30 A)
Load Capacity 4992 VA
Outlets 12 × IEC C13, 4 × IEC C19
Communication Ports None (local metering only)
Operating Temperature 23–113 °F (-5–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, PSE, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
User Manual Included in the box
[/accesories]

[specifications]

[/specifications]

The APC NetShelter AP7811B is a metered 2U rack PDU engineered to deliver 5.0kW of reliable power distribution in high-density IT environments. With its 208V input, 30A current rating, and a robust 2U horizontal design, it ensures seamless deployment in enterprise data centers and mission-critical network rooms. Designed for precision monitoring and simplified installation, it empowers IT teams with dependable rack-level power management.

  • Metered Power Distribution: Enables accurate load monitoring and optimized energy usage across racks.
  • High Capacity: 5.0kW / 4992 VA supports demanding IT and network hardware loads.
  • Multiple Outlet Types: 12 IEC C13 and 4 IEC C19 outlets provide flexible equipment connectivity.
  • Rack-Mountable Design: Horizontal 2U form factor for efficient space utilization.
  • NEMA L6-30P Plug: Simplifies power input with secure connection for 208V systems.
  • Durable Build: Built to meet UL, CSA, and FCC standards for long-term reliability.

The AP7811B leverages a 208V input with a NEMA L6-30P plug, offering a robust 30A input current limit. This ensures compatibility with enterprise-grade power distribution while supporting demanding workloads. The PDU delivers a maximum load of 4992 VA, designed to safeguard uptime in mission-critical IT applications.

Its metered functionality allows IT staff to track real-time load usage, preventing overload conditions and improving power efficiency. The combination of 12 IEC C13 and 4 IEC C19 outlets ensures versatile support for a range of servers, storage systems, and networking gear. Designed for front or rear mounting with no orientation preference, it adapts to various rack configurations with ease.

Compliance with UL 60950 and FCC Part 15 standards ensures electrical safety and performance consistency, while its 2U horizontal mounting mode balances accessibility and airflow optimization in dense racks.

  • Enterprise data centers requiring precise rack-level power distribution
  • High-density server environments and blade chassis systems
  • Network closets and telecom racks with mixed equipment loads
  • Industrial and commercial IT deployments needing scalable power

Q1: How is the AP7811B installed?
A: It is a 2U horizontal rack-mounted PDU and includes mounting brackets for simple integration at the front or rear of racks.

Q2: What performance can I expect?
A: The PDU supports up to 5.0kW / 4992 VA with 30A input current. Actual performance depends on connected load profiles and environment.

Q3: Does the PDU support monitoring?
A: Yes, the AP7811B provides metered monitoring of load levels, helping prevent overloads and optimize energy efficiency.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

2U Rack PDU, 5.0kW Capacity, 208V 30A Input, 12x IEC C13 & 4x IEC C19 Outlets, NEMA L6-30P Plug

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7811B
Product Type NetShelter Metered Rack PDU
Form Factor Rackmount 2U
Dimensions (H x W x D) 3.5" x 17.5" x 4.4" (88 x 444 x 112 mm)
Weight 7.41 lb (3.36 kg)
Color Black
Number of Rack Units 2U
Mounting Mode Rack-mounted (Horizontal, Front or Rear)
Cooling Not specified
[/properties]

[specifications]

PDU Type Metered
Input Voltage 200 V / 208 V / 230 V
Output Voltage 208 V
Input Plug Type NEMA L6-30P
Input Frequency 50/60 Hz
Line Rated Current 24 A (Input current limit 30 A)
Load Capacity 4992 VA
Outlets 12 × IEC C13, 4 × IEC C19
Communication Ports None (local metering only)
Operating Temperature 23–113 °F (-5–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, PSE, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
User Manual Included in the box
[/accesories]

[specifications]

[/specifications]

Overview

The APC NetShelter AP7811B is a metered 2U rack PDU engineered to deliver 5.0kW of reliable power distribution in high-density IT environments. With its 208V input, 30A current rating, and a robust 2U horizontal design, it ensures seamless deployment in enterprise data centers and mission-critical network rooms. Designed for precision monitoring and simplified installation, it empowers IT teams with dependable rack-level power management.

Key Features & Benefits
  • Metered Power Distribution: Enables accurate load monitoring and optimized energy usage across racks.
  • High Capacity: 5.0kW / 4992 VA supports demanding IT and network hardware loads.
  • Multiple Outlet Types: 12 IEC C13 and 4 IEC C19 outlets provide flexible equipment connectivity.
  • Rack-Mountable Design: Horizontal 2U form factor for efficient space utilization.
  • NEMA L6-30P Plug: Simplifies power input with secure connection for 208V systems.
  • Durable Build: Built to meet UL, CSA, and FCC standards for long-term reliability.
Technical Deep Dive

The AP7811B leverages a 208V input with a NEMA L6-30P plug, offering a robust 30A input current limit. This ensures compatibility with enterprise-grade power distribution while supporting demanding workloads. The PDU delivers a maximum load of 4992 VA, designed to safeguard uptime in mission-critical IT applications.

Its metered functionality allows IT staff to track real-time load usage, preventing overload conditions and improving power efficiency. The combination of 12 IEC C13 and 4 IEC C19 outlets ensures versatile support for a range of servers, storage systems, and networking gear. Designed for front or rear mounting with no orientation preference, it adapts to various rack configurations with ease.

Compliance with UL 60950 and FCC Part 15 standards ensures electrical safety and performance consistency, while its 2U horizontal mounting mode balances accessibility and airflow optimization in dense racks.

Ideal Applications
  • Enterprise data centers requiring precise rack-level power distribution
  • High-density server environments and blade chassis systems
  • Network closets and telecom racks with mixed equipment loads
  • Industrial and commercial IT deployments needing scalable power
Frequently Asked Questions (FAQs)

Q1: How is the AP7811B installed?
A: It is a 2U horizontal rack-mounted PDU and includes mounting brackets for simple integration at the front or rear of racks.

Q2: What performance can I expect?
A: The PDU supports up to 5.0kW / 4992 VA with 30A input current. Actual performance depends on connected load profiles and environment.

Q3: Does the PDU support monitoring?
A: Yes, the AP7811B provides metered monitoring of load levels, helping prevent overloads and optimize energy efficiency.
