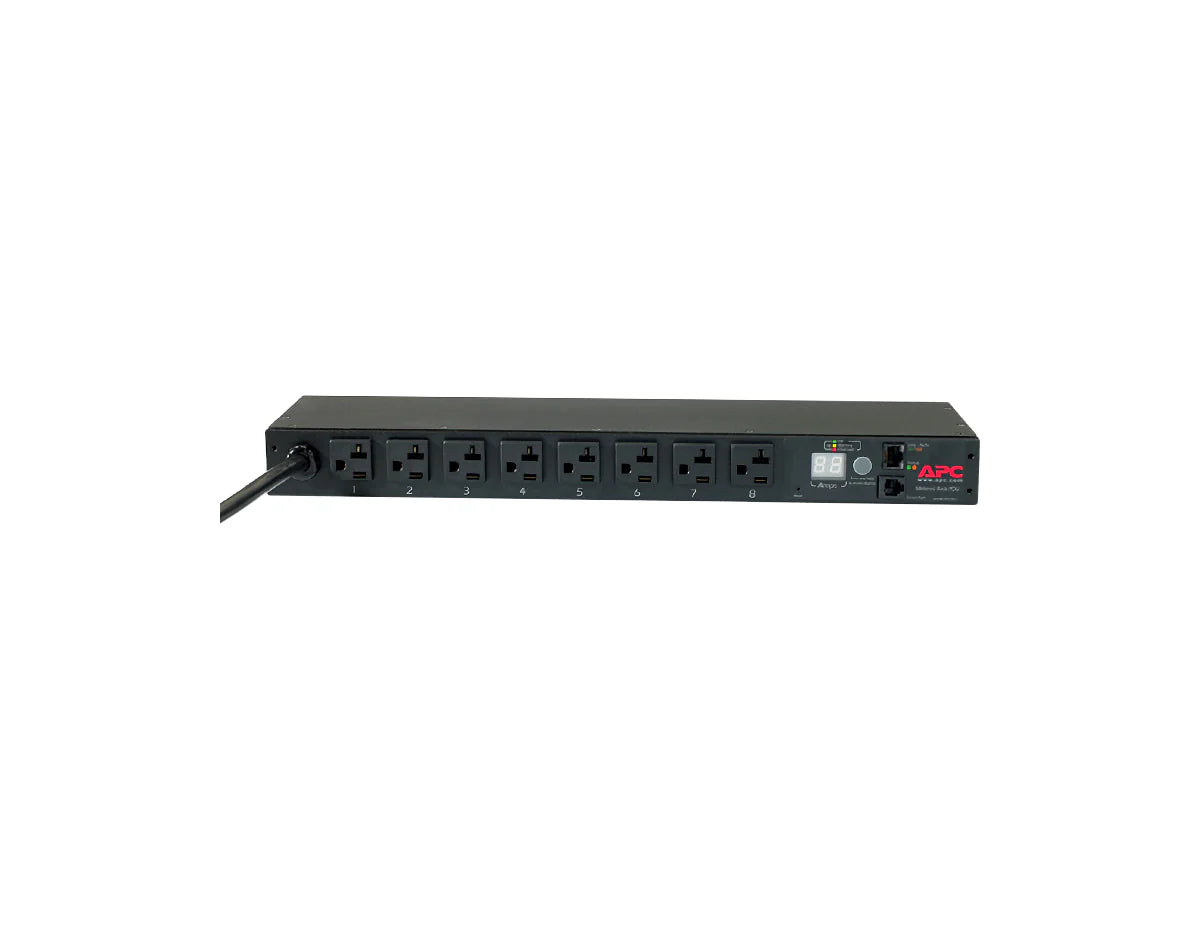

APC AP7801B - NetShelter 1U Metered Rack PDU 20A 120V
Clique ou role para ampliar
Toque ou belisque para ampliar

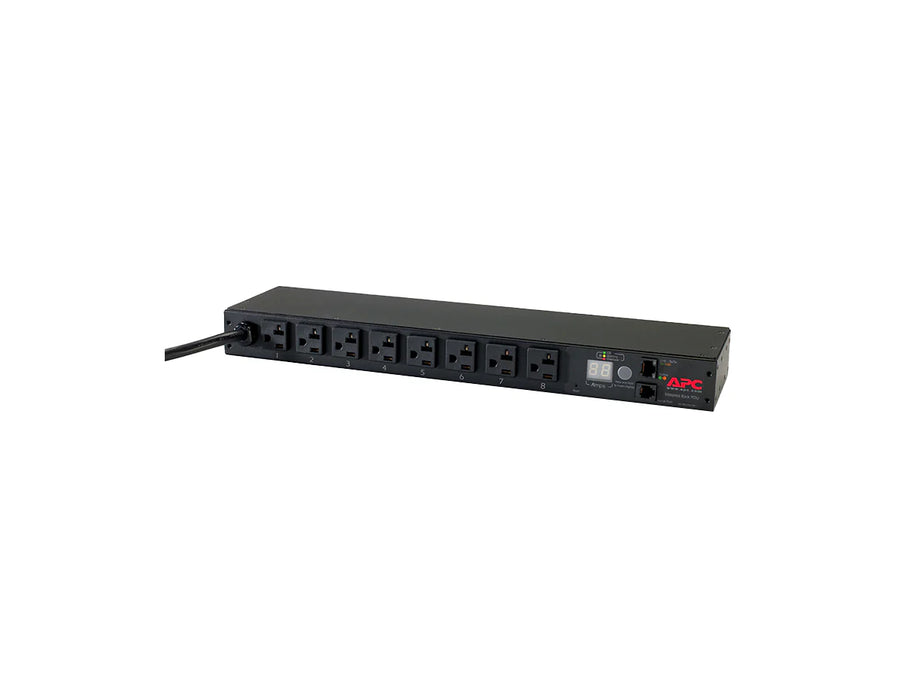

APC AP7801B - NetShelter 1U Metered Rack PDU 20A 120V
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7801B - NetShelter 1U Metered Rack PDU 20A 120V
APC AP7801B - NetShelter 1U Metered Rack PDU 20A 120V

APC AP7801B - NetShelter 1U Metered Rack PDU 20A 120V

por APC
R$ 14.220,00
R$ 9.144,00
Pedir por e-mail
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

1U Rackmount, 20A 120V Input (16A Line Rated), 1920VA Load Capacity, 8 NEMA 5-20R Outlets, NEMA L5-20P Plug, Integrated Metering

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7801B
Product Type NetShelter Metered Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.7" x 17.5" x 4.02" (44 x 444 x 102 mm)
Weight 3.81 lb (1.73 kg)
Color Not stated by manufacturer
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal, Front/Rear)
Cooling Not stated by manufacturer

[/properties]

[specifications]

PDU Type Metered
Input Voltage 100 V / 120 V
Output Voltage 120 V
Input Plug Type NEMA L5-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Line Rated); 20 A Input Current Limit
Load Capacity 1920 VA
Outlets 8 × NEMA 5-20R
Communication Ports Not stated by manufacturer (no communication ports listed in datasheet)
Operating Temperature 23–113 °F (-5–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, UL Listed; FCC Part 15 Class A, ICES-003, UL 60950; EU RoHS (Compliant with Exemptions); REACh Declaration
Warranty 24 months (2 years)

[/specifications]

[accesories]

Cord Retention Brackets Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
User Manual Included in the box

[/accesories]

The APC NetShelter AP7801B is a metered rack power distribution unit engineered to provide reliable, monitored power for enterprise IT racks. Its 1U horizontal design integrates seamlessly into network and server environments, delivering consistent 120V power with clear load visibility through its front-facing meter display.

  • 1U Horizontal Form Factor: Saves vertical rack space while ensuring simple integration.
  • Metered Load Monitoring: Real-time visibility of current draw for capacity planning.
  • High Load Capacity: Supports up to 1920VA across 8 outlets for multiple devices.
  • Reliable Input Plug: NEMA L5-20P input for secure connection to 20A circuits.
  • Durable Construction: Built for data center and enterprise environments with long-term performance.

The AP7801B leverages APC’s proven NetShelter platform to provide dependable rack power distribution. Its integrated digital display allows administrators to monitor real-time load in amperes, enabling proactive capacity management and preventing overloads.

Technical Specifications Summary

  • Rack form factor: 1U horizontal, rack-mounted
  • Input voltage: 100 V / 120 V
  • Output voltage: 120 V
  • Input plug: NEMA L5-20P
  • Outlet count/type: 8 × NEMA 5-20R
  • Current rating: 16 A line rated; 20 A input current limit
  • Load capacity: 1920 VA
  • Input frequency: 50/60 Hz
  • Physical (H × W × D): 1.7" × 17.5" × 4.02" (44 × 444 × 102 mm)
  • Weight: 3.81 lb (1.73 kg)
  • Operating environment: 23–113 °F (-5–45 °C), 5–95% RH; operating altitude 0–10,000 ft

With a 20A input current limit and 1920VA total load capacity, the unit powers network switches, servers, and storage systems reliably. The NEMA L5-20P input plug ensures secure power delivery, while the 8 NEMA 5-20R outlets distribute clean 120V power to connected devices.

The slim 1U horizontal profile makes it a versatile choice for installations with limited vertical rack space, ensuring efficient use of available capacity without compromising accessibility.

  • Enterprise server racks
  • Network closets and branch offices
  • High-density IT environments
  • Edge computing and managed service deployments

Q1: How is the AP7801B installed?
A: It is a 1U horizontal rackmount PDU, supplied with brackets for front or rear mounting in standard racks.

Q2: What performance can I expect?
A: The PDU supports up to 1920VA with 8 NEMA 5-20R outlets. Performance depends on load type and circuit capacity.

Q3: How is power usage monitored?
A: A front-mounted digital meter provides instant amperage readings, simplifying load balancing and preventing overloads.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

1U Rackmount, 20A 120V Input (16A Line Rated), 1920VA Load Capacity, 8 NEMA 5-20R Outlets, NEMA L5-20P Plug, Integrated Metering

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7801B
Product Type NetShelter Metered Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.7" x 17.5" x 4.02" (44 x 444 x 102 mm)
Weight 3.81 lb (1.73 kg)
Color Not stated by manufacturer
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal, Front/Rear)
Cooling Not stated by manufacturer

[/properties]

[specifications]

PDU Type Metered
Input Voltage 100 V / 120 V
Output Voltage 120 V
Input Plug Type NEMA L5-20P
Input Frequency 50/60 Hz
Line Rated Current 16 A (Line Rated); 20 A Input Current Limit
Load Capacity 1920 VA
Outlets 8 × NEMA 5-20R
Communication Ports Not stated by manufacturer (no communication ports listed in datasheet)
Operating Temperature 23–113 °F (-5–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95%
Storage Humidity 5–95%
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, UL Listed; FCC Part 15 Class A, ICES-003, UL 60950; EU RoHS (Compliant with Exemptions); REACh Declaration
Warranty 24 months (2 years)

[/specifications]

[accesories]

Cord Retention Brackets Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
User Manual Included in the box

[/accesories]

Overview

The APC NetShelter AP7801B is a metered rack power distribution unit engineered to provide reliable, monitored power for enterprise IT racks. Its 1U horizontal design integrates seamlessly into network and server environments, delivering consistent 120V power with clear load visibility through its front-facing meter display.

Key Features & Benefits
  • 1U Horizontal Form Factor: Saves vertical rack space while ensuring simple integration.
  • Metered Load Monitoring: Real-time visibility of current draw for capacity planning.
  • High Load Capacity: Supports up to 1920VA across 8 outlets for multiple devices.
  • Reliable Input Plug: NEMA L5-20P input for secure connection to 20A circuits.
  • Durable Construction: Built for data center and enterprise environments with long-term performance.
Technical Deep Dive

The AP7801B leverages APC’s proven NetShelter platform to provide dependable rack power distribution. Its integrated digital display allows administrators to monitor real-time load in amperes, enabling proactive capacity management and preventing overloads.

Technical Specifications Summary

  • Rack form factor: 1U horizontal, rack-mounted
  • Input voltage: 100 V / 120 V
  • Output voltage: 120 V
  • Input plug: NEMA L5-20P
  • Outlet count/type: 8 × NEMA 5-20R
  • Current rating: 16 A line rated; 20 A input current limit
  • Load capacity: 1920 VA
  • Input frequency: 50/60 Hz
  • Physical (H × W × D): 1.7" × 17.5" × 4.02" (44 × 444 × 102 mm)
  • Weight: 3.81 lb (1.73 kg)
  • Operating environment: 23–113 °F (-5–45 °C), 5–95% RH; operating altitude 0–10,000 ft

With a 20A input current limit and 1920VA total load capacity, the unit powers network switches, servers, and storage systems reliably. The NEMA L5-20P input plug ensures secure power delivery, while the 8 NEMA 5-20R outlets distribute clean 120V power to connected devices.

The slim 1U horizontal profile makes it a versatile choice for installations with limited vertical rack space, ensuring efficient use of available capacity without compromising accessibility.

Ideal Applications
  • Enterprise server racks
  • Network closets and branch offices
  • High-density IT environments
  • Edge computing and managed service deployments
Frequently Asked Questions (FAQs)

Q1: How is the AP7801B installed?
A: It is a 1U horizontal rackmount PDU, supplied with brackets for front or rear mounting in standard racks.

Q2: What performance can I expect?
A: The PDU supports up to 1920VA with 8 NEMA 5-20R outlets. Performance depends on load type and circuit capacity.

Q3: How is power usage monitored?
A: A front-mounted digital meter provides instant amperage readings, simplifying load balancing and preventing overloads.
