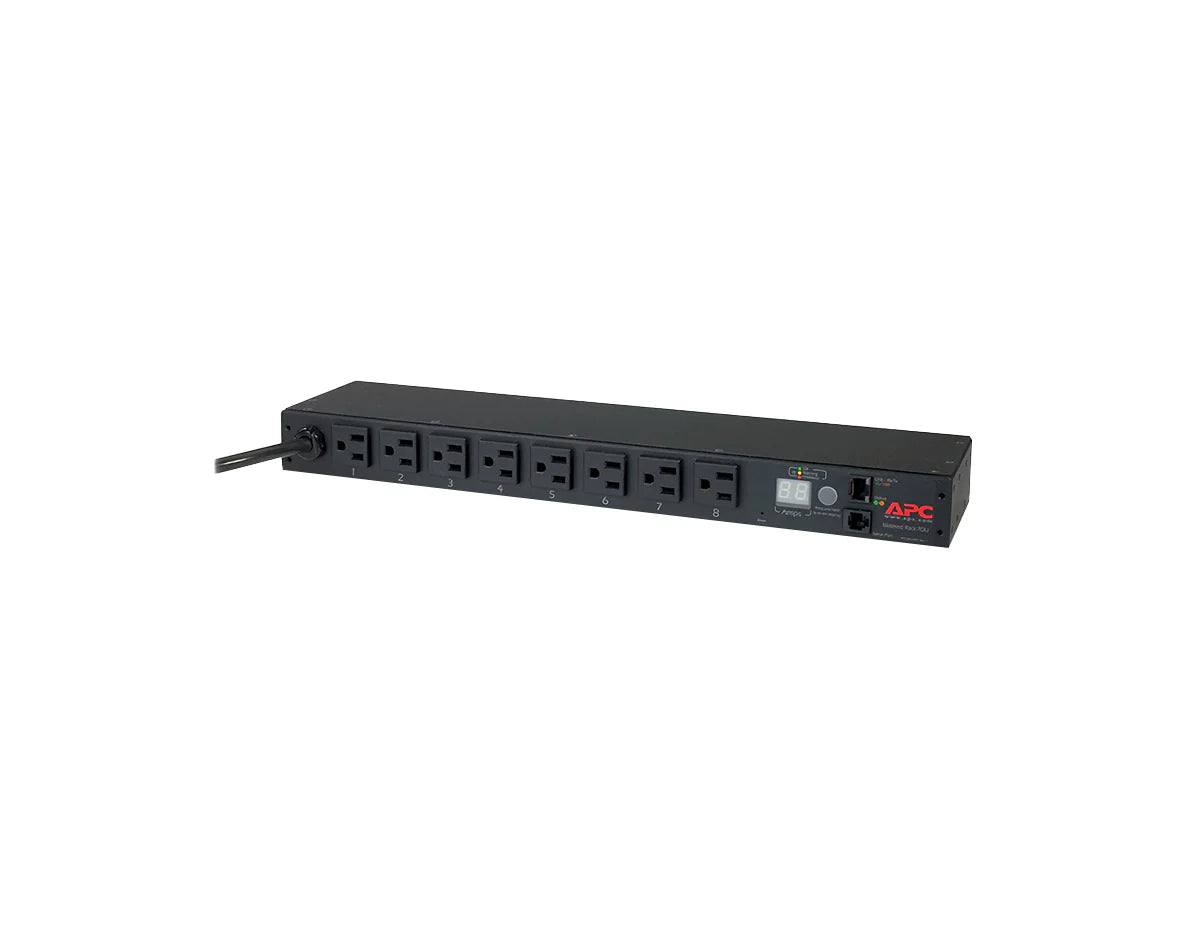

APC AP7800B - NetShelter 1U 15A Metered Rack PDU with 8 Outlets
Clique ou role para ampliar
Toque ou belisque para ampliar
APC AP7800B - NetShelter 1U 15A Metered Rack PDU with 8 Outlets
APC AP7800B - NetShelter 1U 15A Metered Rack PDU with 8 Outlets

APC AP7800B - NetShelter 1U 15A Metered Rack PDU with 8 Outlets

por APC
Desconto de 34%
R$ 12.300,00
R$ 8.064,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

1U Rack PDU, 15A / 120V, 8 NEMA 5-15R Outlets, Horizontal Mount, Metered for Load Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7800B
Product Type NetShelter Metered Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.73" x 17.48" x 4.02" (44 x 444 x 102 mm)
Weight 3.81 lb (1.73 kg)
Color Black
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal, Front/Rear)
Cooling Passive
[/properties]

[specifications]

PDU Type Metered
Input Voltage 100 V / 120 V
Output Voltage 120 V
Input Plug Type NEMA 5-15P
Input Frequency 50/60 Hz
Line Rated Current 12 A (Max 15 A)
Load Capacity 1440 VA
Outlets 8 × NEMA 5-15R
Communication Ports None (local metering only)
Operating Temperature 23–113 °F (-5–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, METI Denan, UL Listed, VCCI, FCC Part 15 Class A, ICES-003, UL 60950, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
User Manual Included in the box
Warranty Card Not specified
[/accesories]

[specifications]

[/specifications]

The APC AP7800B NetShelter Metered Rack PDU provides efficient power distribution in a compact 1U horizontal form factor. Designed for IT racks and network closets, it supports 15A input at 120V and offers real-time load monitoring with metering to ensure optimal energy use.

  • Metered Monitoring: Enables precise measurement of load levels for capacity planning.
  • Compact 1U Design: Fits seamlessly into rack enclosures without consuming vertical space.
  • High Outlet Density: Equipped with 8 NEMA 5-15R outlets for efficient device connectivity.
  • Reliable Build: Durable design with front or rear mounting flexibility.
  • 11.98 ft Power Cord: Provides placement versatility in various rack setups.

The AP7800B utilizes a metered design that goes beyond basic power strips, giving IT managers visibility into real-time current draw. This ensures balanced load distribution and helps prevent circuit overloads.

With its 1U horizontal rack form factor, the PDU optimizes rack space and can be mounted either at the front or rear for operational convenience. The long 3.65m input cord with NEMA 5-15P plug enhances deployment flexibility.

Operating across 100–120V input and providing stable 120V output, it supports up to 1440 VA load capacity. Designed for demanding data center and networking environments, it meets UL and FCC standards for safety and compliance.

  • Small to mid-size data racks and network closets
  • Branch office IT infrastructure
  • Server, storage, and networking equipment
  • Environments requiring precise load monitoring

Q1: How is the AP7800B installed?
A: It is a 1U horizontal rack-mounted unit and includes mounting brackets for front or rear installation.

Q2: What is its performance capability?
A: The unit supports up to 15A input with 1440 VA capacity. Actual load handling depends on connected equipment and environment.

Q3: Does it provide monitoring features?
A: Yes, it includes metering functionality to measure real-time load, assisting in capacity management and preventing overloads.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

1U Rack PDU, 15A / 120V, 8 NEMA 5-15R Outlets, Horizontal Mount, Metered for Load Monitoring

[/shortdesc]

[properties]

Brand APC by Schneider Electric
Model AP7800B
Product Type NetShelter Metered Rack PDU
Form Factor Rackmount 1U
Dimensions (H x W x D) 1.73" x 17.48" x 4.02" (44 x 444 x 102 mm)
Weight 3.81 lb (1.73 kg)
Color Black
Number of Rack Units 1U
Mounting Mode Rack-mounted (Horizontal, Front/Rear)
Cooling Passive
[/properties]

[specifications]

PDU Type Metered
Input Voltage 100 V / 120 V
Output Voltage 120 V
Input Plug Type NEMA 5-15P
Input Frequency 50/60 Hz
Line Rated Current 12 A (Max 15 A)
Load Capacity 1440 VA
Outlets 8 × NEMA 5-15R
Communication Ports None (local metering only)
Operating Temperature 23–113 °F (-5–45 °C)
Storage Temperature -13–149 °F (-25–65 °C)
Operating Humidity 5–95% non-condensing
Storage Humidity 5–95% non-condensing
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft
Compliance cUL Listed, CSA, METI Denan, UL Listed, VCCI, FCC Part 15 Class A, ICES-003, UL 60950, RoHS, REACh
Warranty 2 years repair or replace
[/specifications]

[accessories]

Cord Retention Brackets Included in the box
Installation Guide Included in the box
Rack Mounting Brackets Included in the box
User Manual Included in the box
Warranty Card Not specified
[/accesories]

[specifications]

[/specifications]

Overview

The APC AP7800B NetShelter Metered Rack PDU provides efficient power distribution in a compact 1U horizontal form factor. Designed for IT racks and network closets, it supports 15A input at 120V and offers real-time load monitoring with metering to ensure optimal energy use.

Key Features & Benefits
  • Metered Monitoring: Enables precise measurement of load levels for capacity planning.
  • Compact 1U Design: Fits seamlessly into rack enclosures without consuming vertical space.
  • High Outlet Density: Equipped with 8 NEMA 5-15R outlets for efficient device connectivity.
  • Reliable Build: Durable design with front or rear mounting flexibility.
  • 11.98 ft Power Cord: Provides placement versatility in various rack setups.
Technical Deep Dive

The AP7800B utilizes a metered design that goes beyond basic power strips, giving IT managers visibility into real-time current draw. This ensures balanced load distribution and helps prevent circuit overloads.

With its 1U horizontal rack form factor, the PDU optimizes rack space and can be mounted either at the front or rear for operational convenience. The long 3.65m input cord with NEMA 5-15P plug enhances deployment flexibility.

Operating across 100–120V input and providing stable 120V output, it supports up to 1440 VA load capacity. Designed for demanding data center and networking environments, it meets UL and FCC standards for safety and compliance.

Ideal Applications
  • Small to mid-size data racks and network closets
  • Branch office IT infrastructure
  • Server, storage, and networking equipment
  • Environments requiring precise load monitoring
Frequently Asked Questions (FAQs)

Q1: How is the AP7800B installed?
A: It is a 1U horizontal rack-mounted unit and includes mounting brackets for front or rear installation.

Q2: What is its performance capability?
A: The unit supports up to 15A input with 1440 VA capacity. Actual load handling depends on connected equipment and environment.

Q3: Does it provide monitoring features?
A: Yes, it includes metering functionality to measure real-time load, assisting in capacity management and preventing overloads.
