• APC NetShelter PDU, Zero U, 30A input, 120V, 24 NEMA 5-20R outlets, NEMA L5-30P plug, 2880 VA capacity, Vertical mount, 10-ft cord.

[/shortdesc]

[specifications] [/specifications]

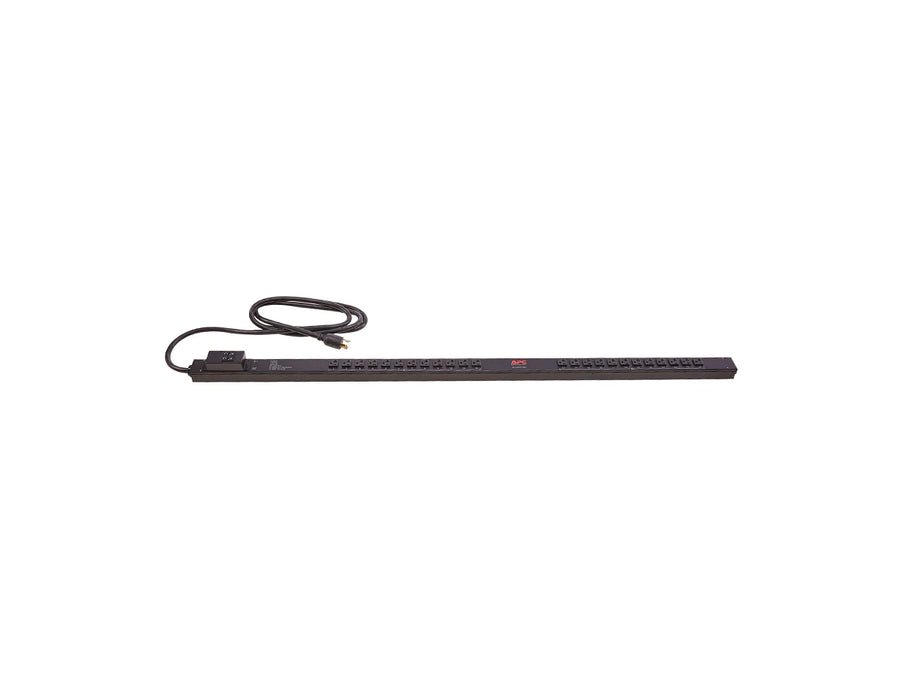

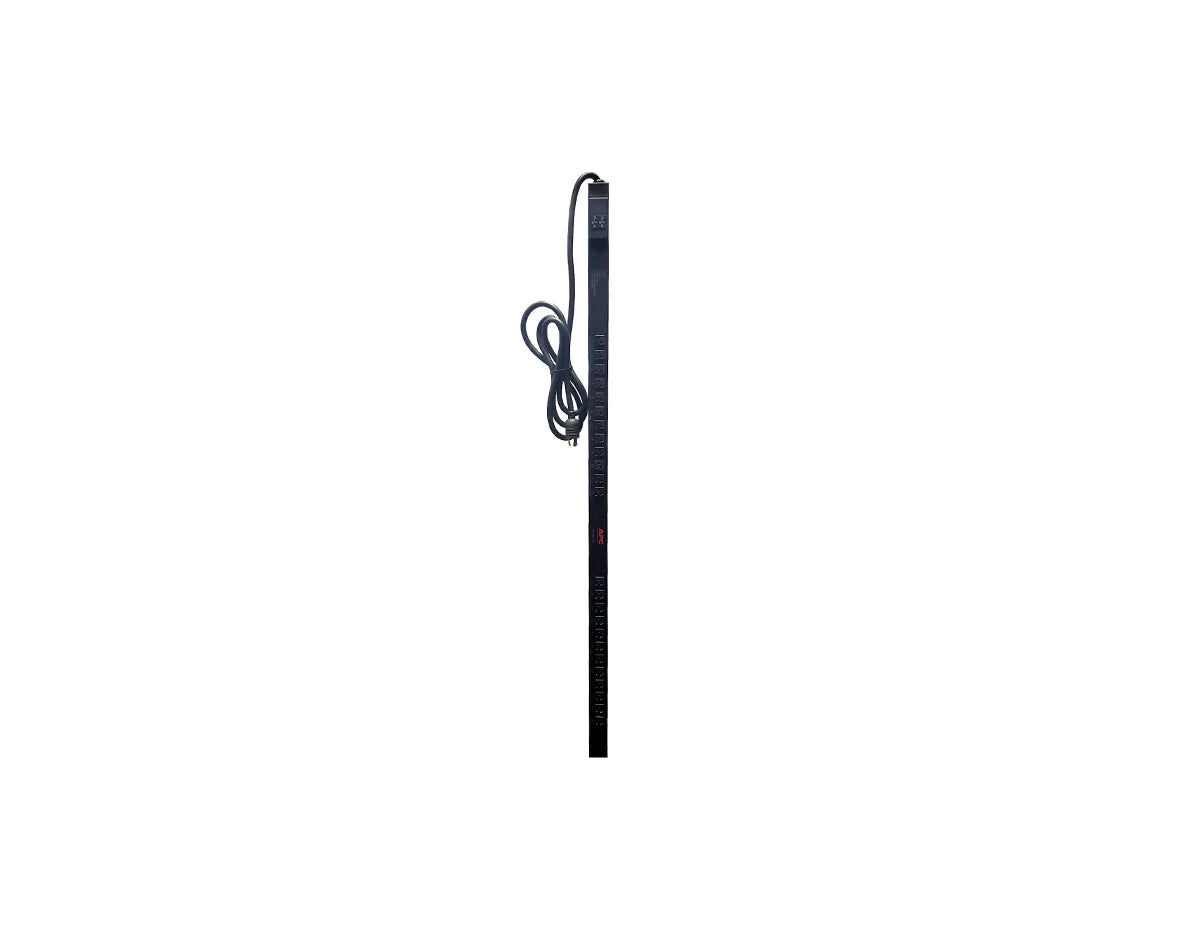

APC NetShelter Basic Rack PDU, Zero U, 30A, 120V, (24) 5-20 Outlets (AP7532)

The APC NetShelter Basic Rack PDU AP7532 is a high-capacity, zero-U power distribution unit designed to deliver efficient power distribution for IT racks and enclosures. With a 30A input current and 24 NEMA 5-20R outlets, this basic PDU is ideal for data centers, server rooms, and network closets that require reliable, unmanaged power distribution.

This PDU features a NEMA L5-30P input plug and a 10-foot power cord, providing flexibility for vertical rack mounting. The zero-U mounting design maximizes rack space by enabling side or vertical positioning. Built for industrial-grade performance, it operates at 2880 VA load capacity and supports 50/60 Hz input frequency.

• Load Capacity: 2880 VA with 30A input current.
• Outlet Configuration: 24 NEMA 5-20R outlets for high-density power distribution.
• Input Plug: NEMA L5-30P plug with a 10-ft (3.05m) power cord for flexible installation.
• Zero-U Mounting: Vertical or side-mountable design to save rack space.
• Basic Power Distribution: Unmanaged power support for essential rack devices.
• Durable Build: Certified for UL and CSA standards with a robust metal enclosure.
• Energy Efficiency: Optimized to minimize power loss and thermal output.
• Operating Environment: Supports temperatures up to 113°F (45°C) and 0-95% relative humidity.

The APC AP7532 provides cost-effective, scalable power distribution for enterprise IT infrastructure. Its zero-U form factor, high outlet density, and durable design ensure efficient, long-term power management for critical IT equipment.
