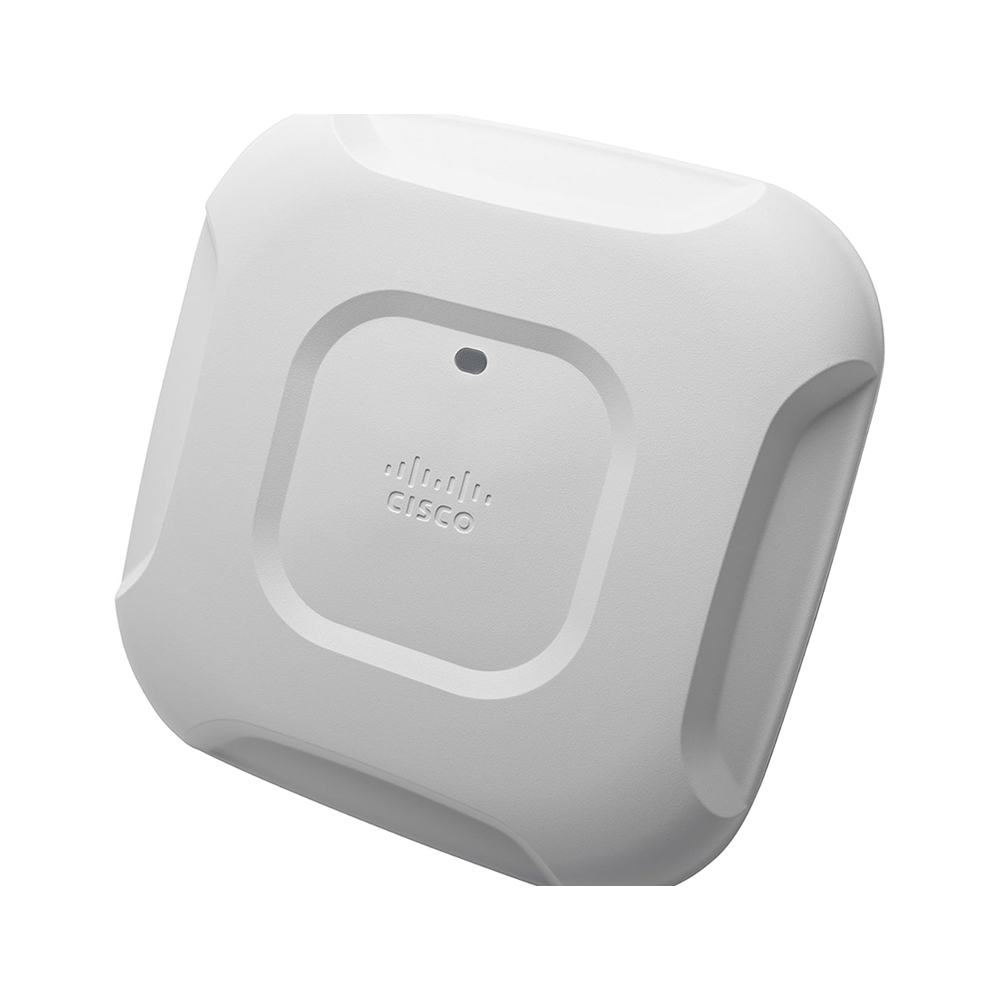

AIR-CAP3702I-X-K9
AIR-CAP3702I-X-K9

AIR-CAP3702I-X-K9

R$ 162.504,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo p/ empresas
  • Impostos inclusos • até 12x sem juros
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

The AIR-CAP3702I-X-K9 is a Cisco Aironet 3700 Series Access Point designed for enterprise networks, requiring a wireless controller. It features internal antennas and selectable regulatory domains. Built on the legacy of Cisco Aironet's RF excellence, the 3700 Series utilizes an innovative chipset for high-density environments. With 4x4 MIMO technology and three spatial streams, it offers enhanced coverage, capacity, and reliability compared to competing access points. Its modular architecture allows for flexible expansion, including options like the Wireless Security Module, Cisco Universal Small Cell 5310 Module, and Cisco Aironet 802.11ac Wave 2 Module. Shop Cisco Wireless APs and discover the power of Cisco Aironet 3700 Access Points, like the Air-CAP3702I-X-K9, for superior wireless connectivity.

Supported Accessories

Accessories

Models

Description
Ethernet Switch Power Injectors
AIR-PWRINJ4=
 Cisco AP power option AIR-PWRINJ4 Power Injector- AP1140/1250/1260/3500/1600/1700/2600/2700/3600/3700 Series
Local Power supply
AIR-PWR-B
 Cisco AP power option PwrSpply:100-240VAC,48VDC



Compare with similar items

Models
AIR-CAP3702I-C-K9
AIR-CAP2702I-C-K9
WiFi Standards 802.11a/b/g/n/ac 802.11a/b/g/n/ac
Antenna internal Antenna internal Antenna
Controller Available Yes Yes
Max Data Rate 5GHz 1.3 Gbps 1.3 Gbps
MIMO Radio Design: Spatial Streams 4 x 4:3 3 x 4:3



Specifications

AIR-CAP3702I-X-K9 Specification
Product Description Cisco Aironet 3700 Series Access Points with internal antennas
Devide Type Wireless Access point
Regulatory domain Selectable
Supported wireless LAN controllers ● Cisco 2500 Series Wireless Controllers,
● Cisco Wireless Controller Module for ISR G2
● Cisco Wireless Services Module 2 (WiSM2) for
Catalyst 6500 Series Switches
● Cisco 5500 Series Wireless Controllers
● Cisco Flex 7500 Series Wireless Controllers
● Cisco 8500 Series Wireless Controllers,
Cisco Virtual Wireless Controller
● Cisco 5760 Wireless LAN Controller
● Cisco Catalyst 3850 Series Switches
● Cisco Catalyst 3650 Series Switches
Software Cisco Unified Wireless Network Software Release with AireOS
Wireless Controllers:
● 7.6 or later for the Cisco Aironet 3700 Series Access Point
● 7.6 or later for support of the Wireless Security Module for the
3700 Series Access PointCisco IOS XE Software Release:
● 3.3.1SE or later for the Cisco Aironet 3700 Series Access Point
● Wireless Security Module for the 3700 Series Access Point
support – (T arget 1HCY15)
Data rates supported ● 802.11a: up to 54 Mbps
● 802.11g: up to 54 Mbps

Maximum number of

nonoverlapping channels

 5 GHz
● 802.11a:
◦ 20 MHz: 21
● 802.11n:
◦ 20 MHz: 21
◦ 40 MHz: 9
● 802.11ac:
◦ 20 MHz: 21
◦ 40 MHz: 9
◦ 80 MHz: 4
● 802.11n on 2.4 GHz: up to 216.7 Mbps
● 802.11ac on 5 GHz: up to 1.3Gbps2.4 GHz
● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3
Antenna 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
Interfaces ● 10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
System memory ● 512 MB DRAM
● 64 MB flash
Module options Cisco Aironet Wireless Security ModuleCisco Universal Small Cell 5310
Power consumption No external module installed,
4x4:3 on 2.4/5 GHz : 16.1 Wattswith wireless Security module,
4x4:3 on 2.4/5 GHz +WSM: 19.6 WattsNo external module installed,
3x3:3 on 2.4/5 GHz : 15.4 Wattswith wireless Security module,
2x2:2 on 2.4/5 GHz +WSM: 15.4 Watts
IEEE standards IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
Security ● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
● 802.1X
● IEEE 802.11ac Draft 5
● Advanced Encryption Standards (AES),
Temporal Key Integrity Protocol (TKIP)

Extensible Authentication

Protocol (EAP) types

 ● EAP-Transport Layer Security (TLS)
● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake
Authentication Protocol Version 2 (MSCHAPv2)
● Protected EAP (PEAP) v0 or EAP-MSCHAPv2
● EAP-Flexible Authentication via Secure Tunneling (FAST)
● PEAP v1 or EAP-Generic Token Card (GTC)
● EAP-Subscriber Identity Module (SIM)
Environmental ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
● Operating temperature: 32° to 104°F (0° to 40°C)
● Operating humidity: 10% to 90% percent (noncondensing)
● Operating altitude test: 40˚C, 9843 ft.



Quality Certifications

product_iso14001   product_iso9001   product_rohs   product_reach    product_ce      product_fcc
