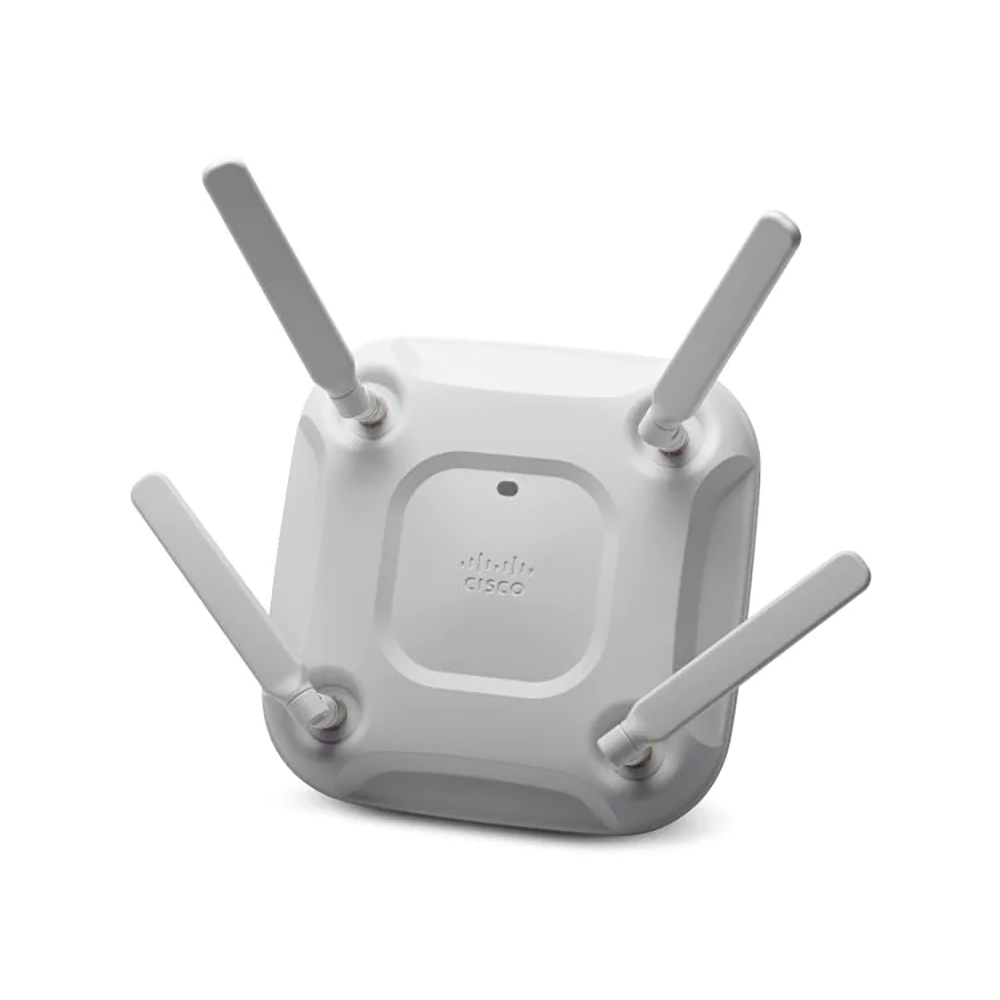

AIR-CAP3702E-X-K9
AIR-CAP3702E-X-K9

AIR-CAP3702E-X-K9

R$ 172.380,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo p/ empresas
  • Impostos inclusos • até 12x sem juros
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

The AIR-CAP3702E-X-K9 is a Cisco Aironet 3700 Series Access Point, requiring a wireless controller and equipped with external antennas and optional regulatory domain support. Continuing the legacy of Cisco Aironet RF excellence, the 3700 Series uses a purpose-built chipset for high-density enterprise environments. With 4x4 MIMO technology and three spatial streams, it offers superior coverage, reliability, and capacity compared to other access points. The modular architecture enables flexible add-ons, such as the Wireless Security Module, Cisco Universal Small Cell 5310 Module, and Cisco Aironet 802.11ac Wave 2 Module. Shop Cisco Wireless APs and explore the performance of the Cisco Aironet 3700 Access Points, like the Air-CAP3702E-X-K9, for enhanced connectivity.

Supported Accessories

Accessories

Models

Description
Ethernet Switch Power Injectors
AIR-PWRINJ4=
 Cisco AP power option AIR-PWRINJ4 Power Injector- AP1140/1250/1260/3500/1600/1700/2600/2700/3600/3700 Series
Local Power supply
AIR-PWR-B
 Cisco AP power option PwrSpply:100-240VAC,48VDC



Compare with similar items

Models
AIR-CAP3702I-X-K9
AIR-CAP3702E-X-K9
WiFi Standards 802.11a/b/g/n/ac 802.11a/b/g/n/ac
Antenna Internal Antenna External Antenna
Controller Available Yes Yes
Max Data Rate 5GHz 1.3 Gbps 1.3 Gbps
MIMO Radio Design: Spatial Streams 4 x 4:3 4 x 4:3

Specifications

AIR-CAP3702E-X-K9 Specification
Product Description Cisco Aironet 3700 Series Access Points with internal antennas
Devide Type Wireless Access point
Regulatory domain Selectable
Supported wireless LAN controllers ● Cisco 2500 Series Wireless Controllers,
● Cisco Wireless Controller Module for ISR G2
● Cisco Wireless Services Module 2 (WiSM2) for
Catalyst 6500 Series Switches
● Cisco 5500 Series Wireless Controllers
● Cisco Flex 7500 Series Wireless Controllers
● Cisco 8500 Series Wireless Controllers,
Cisco Virtual Wireless Controller
● Cisco 5760 Wireless LAN Controller
● Cisco Catalyst 3850 Series Switches
● Cisco Catalyst 3650 Series Switches
Software Cisco Unified Wireless Network Software Release with AireOS
Wireless Controllers:
● 7.6 or later for the Cisco Aironet 3700 Series Access Point
● 7.6 or later for support of the Wireless Security Module for the
3700 Series Access PointCisco IOS XE Software Release:
● 3.3.1SE or later for the Cisco Aironet 3700 Series Access Point
● Wireless Security Module for the 3700 Series Access Point
support – (T arget 1HCY15)
Data rates supported ● 802.11a: up to 54 Mbps
● 802.11g: up to 54 Mbps

Maximum number of

nonoverlapping channels

 5 GHz
● 802.11a:
◦ 20 MHz: 21
● 802.11n:
◦ 20 MHz: 21
◦ 40 MHz: 9
● 802.11ac:
◦ 20 MHz: 21
◦ 40 MHz: 9
◦ 80 MHz: 4
● 802.11n on 2.4 GHz: up to 216.7 Mbps
● 802.11ac on 5 GHz: up to 1.3Gbps2.4 GHz
● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3
Antenna 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
Interfaces ● 10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
System memory ● 512 MB DRAM
● 64 MB flash
Module options Cisco Aironet Wireless Security ModuleCisco Universal Small Cell 5310
Power consumption No external module installed,
4x4:3 on 2.4/5 GHz : 16.1 Wattswith wireless Security module,
4x4:3 on 2.4/5 GHz +WSM: 19.6 WattsNo external module installed,
3x3:3 on 2.4/5 GHz : 15.4 Wattswith wireless Security module,
2x2:2 on 2.4/5 GHz +WSM: 15.4 Watts
IEEE standards IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
Security ● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
● 802.1X
● IEEE 802.11ac Draft 5
● Advanced Encryption Standards (AES),
Temporal Key Integrity Protocol (TKIP)

Extensible Authentication

Protocol (EAP) types

 ● EAP-Transport Layer Security (TLS)
● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake
Authentication Protocol Version 2 (MSCHAPv2)
● Protected EAP (PEAP) v0 or EAP-MSCHAPv2
● EAP-Flexible Authentication via Secure Tunneling (FAST)
● PEAP v1 or EAP-Generic Token Card (GTC)
● EAP-Subscriber Identity Module (SIM)
Environmental ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
● Operating temperature: 32° to 104°F (0° to 40°C)
● Operating humidity: 10% to 90% percent (noncondensing)
● Operating altitude test: 40˚C, 9843 ft.



Quality Certifications

product_iso14001   product_iso9001   product_rohs   product_reach    product_ce      product_fcc

Get More Information

Do you have any question about the AIR-CAP3702E-X-K9 Wireless Access Points?

Please Chat with us now!

or leave us an message on sales@network-switch.com

Warranty

100% Low Price Guarantee

Network-switch.com provides high-quality products at low wholesale prices

100% Quality Assurance

All items are ORIGINAL and GENUINE only.
Item conditions are "New Sealed". They are fully tested by Cisco-certified Engineers.

Free CCIE Technical Support

Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee

You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment

Verified authorization: Mcafee Secure, VeriSign Secured





Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Aironet CAP3702E-X-K9 Access Point Overview

The AIR-CAP3702E-X-K9 is a Cisco Aironet 3700 Series Access Point, requiring a wireless controller and equipped with external antennas and optional regulatory domain support. Continuing the legacy of Cisco Aironet RF excellence, the 3700 Series uses a purpose-built chipset for high-density enterprise environments. With 4x4 MIMO technology and three spatial streams, it offers superior coverage, reliability, and capacity compared to other access points. The modular architecture enables flexible add-ons, such as the Wireless Security Module, Cisco Universal Small Cell 5310 Module, and Cisco Aironet 802.11ac Wave 2 Module. Shop Cisco Wireless APs and explore the performance of the Cisco Aironet 3700 Access Points, like the Air-CAP3702E-X-K9, for enhanced connectivity.

Supported Accessories

Accessories

Models

Description
Ethernet Switch Power Injectors
AIR-PWRINJ4=
 Cisco AP power option AIR-PWRINJ4 Power Injector- AP1140/1250/1260/3500/1600/1700/2600/2700/3600/3700 Series
Local Power supply
AIR-PWR-B
 Cisco AP power option PwrSpply:100-240VAC,48VDC



Compare with similar items

Models
AIR-CAP3702I-X-K9
AIR-CAP3702E-X-K9
WiFi Standards 802.11a/b/g/n/ac 802.11a/b/g/n/ac
Antenna Internal Antenna External Antenna
Controller Available Yes Yes
Max Data Rate 5GHz 1.3 Gbps 1.3 Gbps
MIMO Radio Design: Spatial Streams 4 x 4:3 4 x 4:3

Specifications

AIR-CAP3702E-X-K9 Specification
Product Description Cisco Aironet 3700 Series Access Points with internal antennas
Devide Type Wireless Access point
Regulatory domain Selectable
Supported wireless LAN controllers ● Cisco 2500 Series Wireless Controllers,
● Cisco Wireless Controller Module for ISR G2
● Cisco Wireless Services Module 2 (WiSM2) for
Catalyst 6500 Series Switches
● Cisco 5500 Series Wireless Controllers
● Cisco Flex 7500 Series Wireless Controllers
● Cisco 8500 Series Wireless Controllers,
Cisco Virtual Wireless Controller
● Cisco 5760 Wireless LAN Controller
● Cisco Catalyst 3850 Series Switches
● Cisco Catalyst 3650 Series Switches
Software Cisco Unified Wireless Network Software Release with AireOS
Wireless Controllers:
● 7.6 or later for the Cisco Aironet 3700 Series Access Point
● 7.6 or later for support of the Wireless Security Module for the
3700 Series Access PointCisco IOS XE Software Release:
● 3.3.1SE or later for the Cisco Aironet 3700 Series Access Point
● Wireless Security Module for the 3700 Series Access Point
support – (T arget 1HCY15)
Data rates supported ● 802.11a: up to 54 Mbps
● 802.11g: up to 54 Mbps

Maximum number of

nonoverlapping channels

 5 GHz
● 802.11a:
◦ 20 MHz: 21
● 802.11n:
◦ 20 MHz: 21
◦ 40 MHz: 9
● 802.11ac:
◦ 20 MHz: 21
◦ 40 MHz: 9
◦ 80 MHz: 4
● 802.11n on 2.4 GHz: up to 216.7 Mbps
● 802.11ac on 5 GHz: up to 1.3Gbps2.4 GHz
● 802.11b/g:
◦ 20 MHz: 3
● 802.11n:
◦ 20 MHz: 3
Antenna 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
Interfaces ● 10/100/1000BASE-T autosensing (RJ-45)
● Management console port (RJ-45)
System memory ● 512 MB DRAM
● 64 MB flash
Module options Cisco Aironet Wireless Security ModuleCisco Universal Small Cell 5310
Power consumption No external module installed,
4x4:3 on 2.4/5 GHz : 16.1 Wattswith wireless Security module,
4x4:3 on 2.4/5 GHz +WSM: 19.6 WattsNo external module installed,
3x3:3 on 2.4/5 GHz : 15.4 Wattswith wireless Security module,
2x2:2 on 2.4/5 GHz +WSM: 15.4 Watts
IEEE standards IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
Security ● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
● 802.1X
● IEEE 802.11ac Draft 5
● Advanced Encryption Standards (AES),
Temporal Key Integrity Protocol (TKIP)

Extensible Authentication

Protocol (EAP) types

 ● EAP-Transport Layer Security (TLS)
● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake
Authentication Protocol Version 2 (MSCHAPv2)
● Protected EAP (PEAP) v0 or EAP-MSCHAPv2
● EAP-Flexible Authentication via Secure Tunneling (FAST)
● PEAP v1 or EAP-Generic Token Card (GTC)
● EAP-Subscriber Identity Module (SIM)
Environmental ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
● Operating temperature: 32° to 104°F (0° to 40°C)
● Operating humidity: 10% to 90% percent (noncondensing)
● Operating altitude test: 40˚C, 9843 ft.



Quality Certifications

product_iso14001   product_iso9001   product_rohs   product_reach    product_ce      product_fcc
