Note - Requires XFPs for 10GE, SFPs for GE

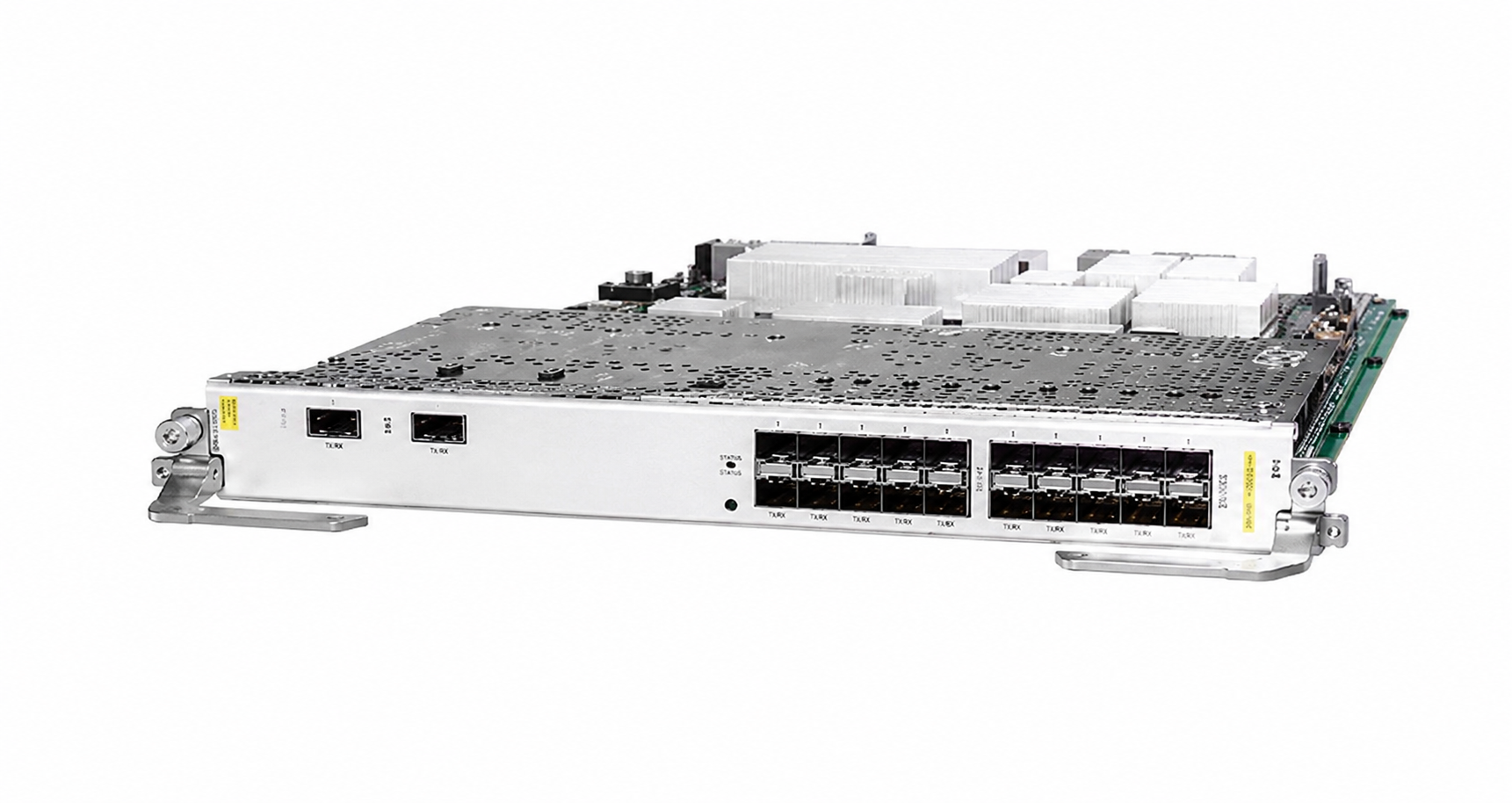

The Cisco A9K-2T20GE-E High Queue Combo Line Card is a high-density Ethernet line card designed for Cisco ASR 9000 Series Aggregation Services Routers, providing flexible connectivity for service provider and enterprise WAN networks. It combines 2 × 10 Gigabit Ethernet XFP ports with 20 × Gigabit Ethernet SFP ports for scalable optical connectivity across edge routing, aggregation, and Carrier Ethernet environments. Its High Queue/Extended architecture provides enhanced traffic-management scalability for demanding network services.
Built for wire-speed Layer 2 and Layer 3 forwarding, the A9K-2T20GE-E supports IP/MPLS, Carrier Ethernet, VLAN services, Ethernet Flow Points (EFPs), and advanced Quality of Service (QoS). The line card provides high-scale queue and policer capabilities for bandwidth-intensive and latency-sensitive applications, while support for G.709, Forward Error Correction (FEC), frequency synchronization, and Synchronous Ethernet (SyncE) on compatible configurations provides additional flexibility for carrier-grade deployments.
Running Cisco IOS XR, the Cisco A9K-2T20GE-E integrates with the resilient architecture of ASR 9000 routers and supports high-availability deployments. It is an ideal solution for service provider networks, IP/MPLS edge routing, Carrier Ethernet, metro Ethernet aggregation, enterprise WAN infrastructure, and high-capacity network expansion requiring scalable Ethernet connectivity and advanced traffic management.
Product Specifications – Cisco A9K-2T20GE-E 2-Port 10GE + 20-Port GE High Queue Combo Line Card
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco A9K-2T20GE-E 2-Port 10GE + 20-Port GE High Queue Combo Line Card |
| Manufacturer |
Cisco Systems |
| Part Number |
A9K-2T20GE-E |
| Product Series |
Cisco ASR 9000 Series |
| Product Type |
High Queue Combo Ethernet Line Card |
| Line Card Architecture |
First-Generation Cisco ASR 9000 Ethernet Line Card |
| Port Configuration |
2 × 10 Gigabit Ethernet + 20 × Gigabit Ethernet |
| 10 Gigabit Ethernet Ports |
2 × 10GbE XFP Ports |
| Gigabit Ethernet Ports |
20 × Gigabit Ethernet SFP Ports |
| Optical Interface |
XFP for 10GbE; SFP for Gigabit Ethernet |
| Optics Required |
XFPs for 10GbE Ports and SFPs for Gigabit Ethernet Ports |
| Queue Type |
High Queue / Extended (E) |
| Queue Scale |
Up to 376,000–512,000 Total Queues, Platform/Software Dependent |
| Policer Scale |
Up to 256,000–512,000 Policers, Platform/Software Dependent |
| Ethernet Flow Points (EFPs) |
Up to 32,000, Platform/Software Dependent |
| Switching / Forwarding |
Wire-Speed Ethernet Forwarding |
| Layer Support |
Layer 2 and Layer 3 |
| QoS |
Advanced Quality of Service with High Queue Scaling |
| IP/MPLS Support |
Supported |
| Carrier Ethernet |
Supported |
| EFP Support |
Supported |
| VLAN Services |
Supported |
| Layer 3 VPN |
Supported with Compatible Feature License |
| Advanced Optical Features |
G.709 and FEC with A9K-ADV-OPTIC-LIC |
| Frequency Synchronization |
Supported |
| Synchronous Ethernet (SyncE) |
Supported |
| Operating System |
Cisco IOS XR |
| Chassis Compatibility |
Cisco ASR 9000 Series Routers |
| Management |
Cisco IOS XR CLI and Network Management Tools |
| Installation |
Modular Line Card Slot |
| Hot-Swappable |
Yes, when installed in a supported ASR 9000 chassis |
| Redundancy |
Supported through ASR 9000 Chassis Architecture |
| Deployment |
Service Provider, Carrier Ethernet and Enterprise WAN Networks |
| Application |
IP/MPLS Edge Routing, Metro Ethernet Aggregation and High-Capacity Network Expansion |
| Condition |
Refurbished |
| Use Cases |
Service Provider Networks, Carrier Ethernet Deployments, IP/MPLS Edge Routing, Metro Ethernet Aggregation, Enterprise WAN Infrastructure, High-Capacity Network Expansion |
FAQs
Q1. Which Cisco platforms support the A9K-2T20GE-E?
The line card is designed for compatible Cisco ASR 9000 Series Aggregation Services Routers.
Q2. What interfaces are available on the A9K-2T20GE-E?
It includes two 10 Gigabit Ethernet XFP ports and twenty Gigabit Ethernet SFP ports for flexible network connectivity.
Q3. What is the advantage of the High Queue architecture?
The High Queue design provides enhanced Quality of Service (QoS), making it ideal for networks carrying latency-sensitive and high-priority traffic.
Q4. Does this line card support Carrier Ethernet and IP/MPLS services?
Yes. It is engineered to support Carrier Ethernet, IP/MPLS, and other high-performance edge networking applications.
Q5. What environments is the A9K-2T20GE-E best suited for?
It is ideal for service providers, enterprise WANs, metro Ethernet networks, and high-capacity aggregation environments requiring scalable and reliable connectivity.
