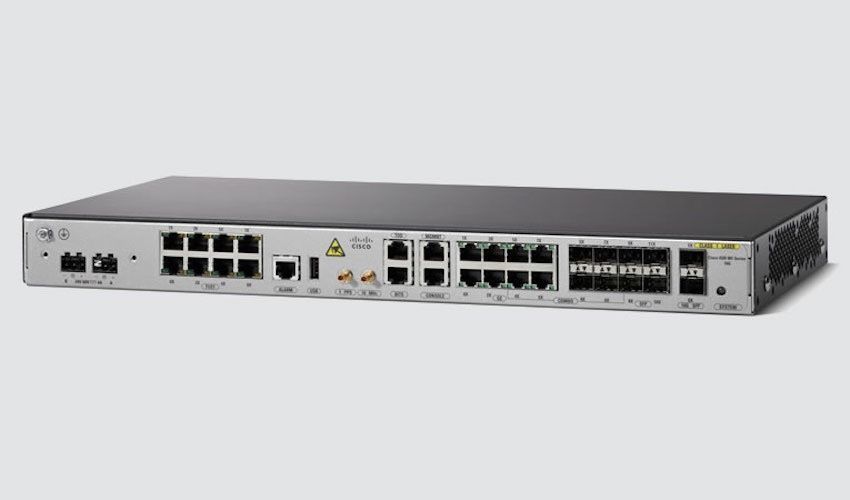

The Cisco ASR 901 (A901-6CZ-FS-A) is a compact, carrier-grade aggregation router engineered for mobile backhaul, metro Ethernet, and enterprise edge deployments. Built on Cisco IOS XE, the ASR 901 delivers powerful Layer 2 and Layer 3 services, integrated security, and high availability in a rugged, space-efficient design—ideal for service providers and enterprises operating in demanding environments.
Equipped with six combo Ethernet ports, the ASR 901 supports both 1G and 10G connectivity using SFP, SFP+, or RJ-45 interfaces, allowing flexible deployment across fiber and copper infrastructures. With a switching capacity of up to 60 Gbps and line-rate forwarding on all ports, it ensures consistent, high-performance transport for voice, video, and data traffic.
Designed specifically for IP-RAN and mobile backhaul networks, the Cisco ASR 901 supports a comprehensive suite of Carrier Ethernet services, including EVC, L2VPN, VPLS, pseudowires, and advanced MPLS capabilities. It also supports modern routing protocols such as BGP, OSPF, IS-IS, EIGRP, along with Segment Routing, RSVP-TE, and LDP, enabling scalable and resilient network architectures.
Security is deeply integrated into the platform, featuring IPSec for secure WAN backhaul, NAPT, ACL-based traffic filtering, control-plane protection, and IEEE 802.1X authentication. MACsec readiness (license-dependent) further enhances data confidentiality for critical infrastructure deployments.
The fanless, hardened chassis supports extreme operating temperatures ranging from -40°C to +65°C, making the ASR 901 suitable for outdoor cabinets, cell sites, and industrial locations. Its low power consumption (~90W) and built-in AC power supply ensure energy-efficient operation without compromising performance.
For operations and automation, the Cisco ASR 901 supports CLI, WebUI, SNMP, NetFlow, telemetry, REST APIs, and YANG models, along with Zero Touch Provisioning (ZTP). Seamless integration with Cisco Prime, EPN Manager, NSO, and SD-WAN frameworks simplifies lifecycle management and accelerates deployment.
In summary, the Cisco ASR 901 A901-6CZ-FS-A is a reliable, secure, and scalable aggregation router that delivers carrier-class performance in a compact form factor—perfect for metro access, mobile backhaul, and enterprise edge networks.
Product Specifications – Cisco ASR 901 Aggregation Router (A901-6CZ-FS-A)
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Model |
Cisco ASR 901 – A901-6CZ-FS-A
|
| Product Description |
Compact, high-performance aggregation router designed for mobile backhaul, metro Ethernet, and enterprise edge deployments. Features an Ethernet-only interface, integrated security (IPSec, NAPT), fanless design, and wide temperature support for harsh and space-constrained environments. |
| Form Factor & Design |
Compact, ruggedized metal chassis; rack- or wall-mountable; suitable for outdoor cabinets and industrial locations |
| Interfaces & Ports |
- 6 × Combo Ports (1G/10G SFP/SFP+ or RJ-45 Ethernet)
- Supports copper or fiber SFP modules
- 1 × USB Type-A (software/config storage)
- 1 × RJ-45 Console Port
- 1 × RJ-45 Auxiliary Port
|
| Performance & Throughput |
- Switching Capacity: Up to 60 Gbps
- Forwarding Rate: Line-rate on all interfaces |
| Routing & Switching Features |
- Full Layer 2 & Layer 3 support
- OSPF, BGP, EIGRP, IS-IS
- MPLS, Segment Routing, RSVP-TE, LDP |
| Carrier Ethernet Capabilities |
- Pseudowire
- L2VPN
- VPLS
- Ethernet Virtual Circuits (EVC) |
| Security Features |
- Integrated IPSec for secure WAN backhaul
- NAPT (Network Address Port Translation)
- IEEE 802.1X authentication
- Control Plane Protection (CoPP)
- ACL-based traffic filtering
- MACsec-ready (license dependent) |
| Quality of Service (QoS) |
Advanced QoS with traffic classification, shaping, policing, and prioritization |
| Multicast Support |
Multicast routing, IGMP, IGMP snooping |
| Operating System |
Cisco IOS XE |
| Management & Automation |
- CLI and WebUI
- SNMP, NetFlow, telemetry
- Cisco Prime, EPN Manager, NSO integration
- Zero Touch Provisioning (ZTP)
- REST APIs & YANG models for automation |
| Power Supply |
Built-in AC Power Supply
|
| Input Voltage |
100–240 VAC |
| Typical Power Consumption |
~90W
|
| Cooling |
Fanless / passive cooling (silent operation) |
| Operating Temperature |
–40°C to +65°C |
| Humidity |
5% to 95% (non-condensing) |
| Deployment Use Cases |
IP-RAN, mobile backhaul, metro Ethernet aggregation, enterprise edge, outdoor cabinets |
| Compatibility & Integration |
- Fully compatible with Cisco IOS XE platforms
- Integrates with Cisco SD-WAN and automation suites
- Interoperable with Cisco ASR and ISR series routers |
| Reliability & Hardened Design |
Built for carrier-grade deployments with high availability and environmental resilience |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs for A901-6CZ-FS-A:
Is the ASR 901 suitable for mobile backhaul and metro Ethernet?
Yes, it’s specifically designed for mobile backhaul and metro edge environments, with full Ethernet support and integrated IPSec for secure transport.
Does the A901-6CZ-FS-A support 10G Ethernet?
Yes, it supports combo interfaces that can handle both 1G and 10G via SFP/SFP+ modules.
What kind of power input does this model require?
It features a built-in AC power supply and supports 100–240 VAC input.
Is this router manageable via automation tools?
Yes, it supports Cisco NSO, REST APIs, SNMP, and ZTP for automation and ease of deployment.
Does the ASR 901 include IPSec and NAPT features by default?
Yes, it comes with built-in IPSec and Network Address Port Translation capabilities, making it ideal for secure, flexible edge deployments.
