8911DPSG13V09 | Definite Purpose Starter, 20A, NEMA 1, 200V 50 Hz, 208-240V 60 Hz, 3-Poles, 3-Phase | Square D

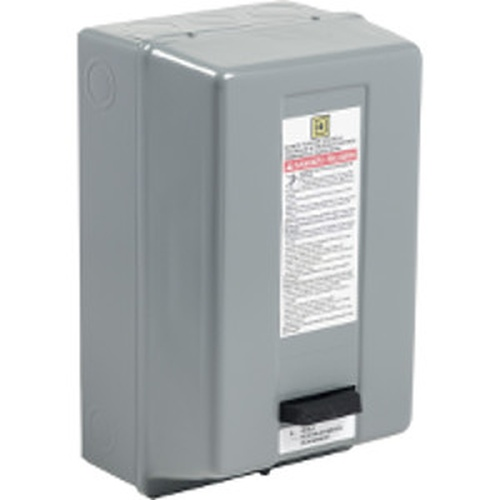

Definite Purpose Starter, 20A, NEMA 1, 200V 50 Hz, 208-240V 60 Hz, 3-Poles, 3-Phase

Definite Purpose Starter

• Line Rated Current: 20A
• Poles Description: 3-Pole
• Number of Phases: 3-Phase
• Degree of Protection: NEMA 1
• Control Circuit Voltage: 220 V AC 50 Hz, 208-240V AC 60 Hz

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 20 amperes. This starter has ratings of 1.5 HP at 115 VAC and 3 HP at 230 VAC single phase. It has a 7.5 HP at 230 VAC, 460 VAC and 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208 to 240 VAC 60 HZ and 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Product

Definite Purpose Starter

Ampere Rating

20 A

Horsepower Rating

3 hp 230 V AC;1 phase;7.5 hp 230 V AC;3 phase;1.5 hp 115 V AC;1 phase;7.5 hp 460 V AC;3 phase;7.5 hp 575 V AC;3 phase

Maximum Voltage Rating

600 V AC

Control Circuit Voltage

220 V AC 50 Hz;208...240 V AC 60 Hz

Phase

3 phase

Enclosure Material

Painted sheet steel

Enclosure Rating

NEMA 1

Locked Rotor Amperes

120 A 230 V AC;100 A 460 V AC;80 A 575 V AC

Number of Poles

3P

Range

DPS

Overload Type

Melting alloy

Number of Thermal Units

3

Category

21381-8911 DP

Discount Schedule

CP1

GTIN

785901024644

Returnability

Yes

Country of origin

CN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

6.40 in (16.256 cm)

Package 1 Width

6.90 in (17.526 cm)

Package 1 Length

11.20 in (28.448 cm)

Package 1 Weight

5.69 lb(US) (2.581 kg)

Warranty

18 months
