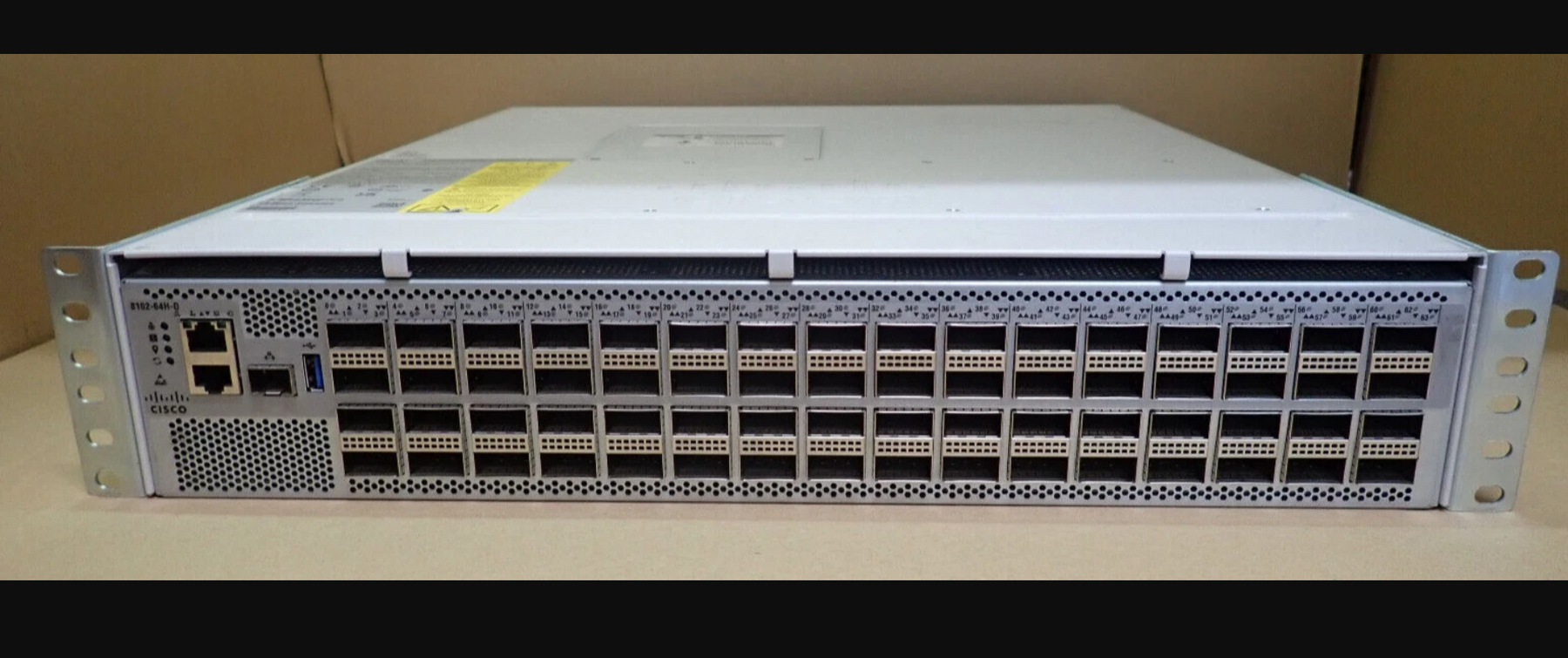

The Cisco 8102-64H-O is a powerful, high-capacity router designed for data centers, service providers, and cloud-scale environments. With 64 x 100G QSFP28 ports, this 2RU platform delivers unmatched density, throughput, and flexibility for IP core, peering, DCI (Data Center Interconnect), and edge deployments.
Powered by the Cisco Silicon One ASIC architecture and designed with power efficiency in mind, the 8102-64H-O offers leading-edge performance at a reduced operational cost. It supports 12.8 Tbps of switching capacity, enabling full line-rate forwarding on all ports. Integration with Cisco 8000 Series software, carrier-grade features, and future-ready support for 400G migration make this router a smart investment in scalable infrastructure.
Whether for hyperscale cloud providers or telecom backbone networks, the Cisco 8102-64H-O is engineered for maximum scalability, programmability, and reliability.
| Category |
Details |
| Model |
Cisco 8102-64H-O |
| Form Factor |
2RU Rack-Mountable |
| Interface Ports |
64 x 100G QSFP28 (supports breakout to 4 x 25G or 2 x 50G) |
| Total Bandwidth |
12.8 Tbps |
| Packet Forwarding Rate |
Up to 8 Bpps |
| Operating System |
Cisco IOS XR (modular, carrier-class OS) |
| Processor |
Cisco Silicon One Q200 ASIC |

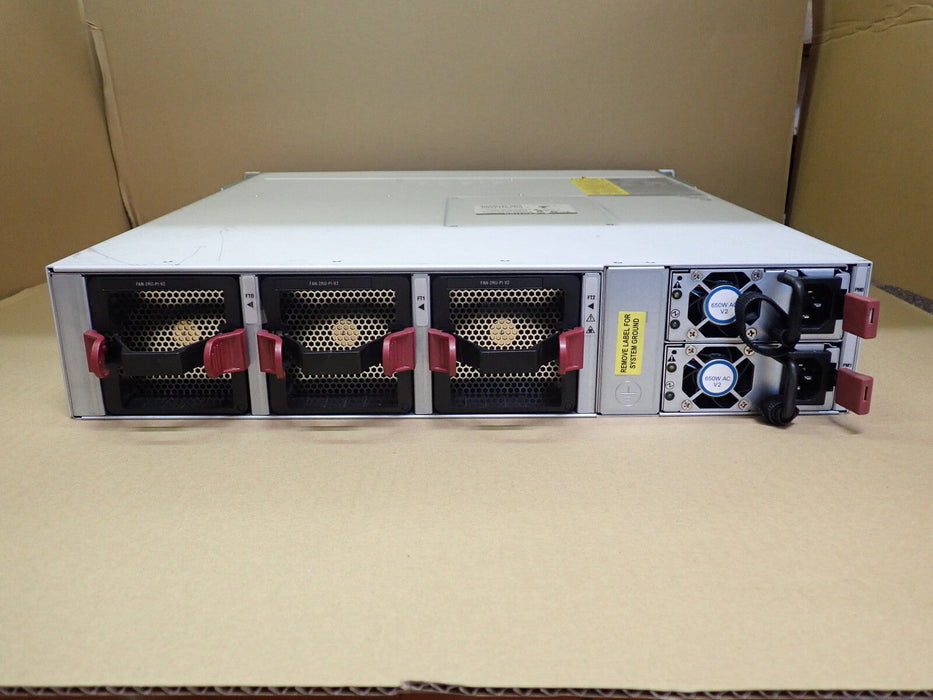

| Power Supply Options |
Dual, redundant (AC/DC options) |
| Cooling |
Front-to-back or back-to-front airflow options |
| Redundancy |
Power and fan redundancy |
| Dimensions |
3.47 in x 17.5 in x 30 in (8.8 cm x 44.5 cm x 76.2 cm) |
| Weight |
Approx. 55 lbs (25 kg) |
| Protocols Supported |
IPv4, IPv6, MPLS, Segment Routing, EVPN |
| Security Features |
MACsec, ACLs, Control Plane Protection |
| Automation & Telemetry |
Model-driven management, gRPC, NETCONF, streaming telemetry |
| Use Cases |
Core routing, peering, cloud networking, DCI |
❓ Frequently Asked Questions (FAQs)
1. What is the primary use case for the Cisco 8102-64H-O?
It is ideal for service provider core, peering, hyperscale cloud networking, and data center interconnects requiring 100G density.
2. Can the QSFP28 ports be used for lower-speed connections?
Yes, QSFP28 ports support breakout configurations like 4x25G and 2x50G with appropriate transceivers.
3. Does it support MACsec encryption?
Yes, the Cisco 8102-64H-O supports MACsec for secure link-level encryption.
4. What software does it run?
It runs Cisco IOS XR, designed for modular, high-availability networking.
5. Is there support for telemetry and automation?
Absolutely. It supports model-driven telemetry, gRPC, and automation through tools like NETCONF/YANG.
