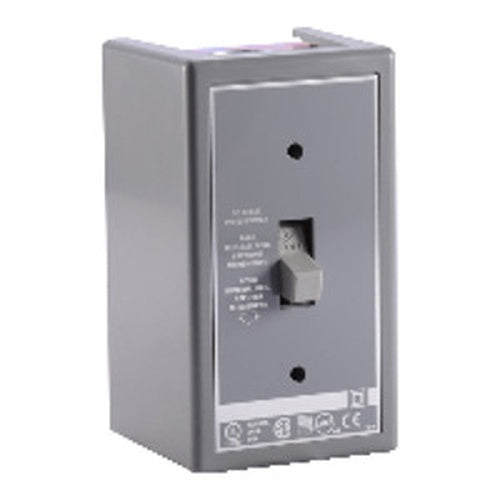

2510FG2 | Fractional Horsepower Manual Starter, 16A, NEMA 1, 2-Pole, Toggle Operated, No Indicator, 277VAC | Square D

Fractional Horsepower Manual Starter, 16A, NEMA 1, 2-Pole, Toggle Operated, No Indicator, 277VAC

Fractional Horsepower Manual Starter

• Line Rated Current: 16A
• Motor Power HP: 1 HP at 115 VAC, 277 VAC; 0.75 HP at 115 VDC, 230 VDC; 2 HP at 230 VAC
• System Voltage: 277V AC, 230V DC
• Poles Description: 2-Pole
• Control Type: Toggle Switch
• Number of Phases: 1-Phase
• Local Signaling: No Indicator
• Reset: Manual
• Motor Starter Type: Non-Reversing
• Electrical Connection: Screw Clamp Terminals

Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Listed and CSA Certified for global applications. This 2 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP at 115 VAC, 2 HP at 230 VAC, 1 HP at 277 VAC and 0.75 HP at 115 and 230 VDC ratings. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.88 inches deep. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.

Product

Single Unit Manual Starter

Type

F

Overload Relay Type

Melting alloy

Current Rating

16 A

cable entry

0.5" and 0.75" knock-outs (top and bottom)

Horsepower Rating

1 hp 115 V AC;1 hp 277 V AC;0.75 hp 115 V DC;0.75 hp 230 V DC;2 hp 230 V AC

Voltage Rating

277 V AC;230 V DC

Number of Poles

2P

Control Unit

Toggle switch

Number of Phases

1 phase

Pilot Light

No indicator

Reset

Manual

motor starter type

Non reversing

Electrical Connection

Screw clamp terminals

Wire Gauge

AWG 14...AWG 12 copper

Height

4.25 in (107.95 mm)

Width

2.44 in (61.98 mm)

Depth

2.75 in (69.85 mm)

Net Weight

0.79 lb(US) (0.36 kg)

Product Certifications

UL listed file E42243 CCN NLRV;CSA LR25490 class 3211 05

NEMA Enclosure Rating

NEMA 1 Plastic standard size

Category

21101-2510;2511;2512 F

Discount Schedule

CP1

GTIN

785901553953

Returnability

Yes

Country of origin

MX

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.60 in (6.604 cm)

Package 1 Width

3.00 in (7.62 cm)

Package 1 Length

4.70 in (11.938 cm)

Package 1 Weight

12.64 oz (358.338 g)

Unit Type of Package 2

CAR

Number of Units in Package 2

14

Package 2 Height

8.90 in (22.606 cm)

Package 2 Width

8.30 in (21.082 cm)

Package 2 Length

14.50 in (36.83 cm)

Package 2 Weight

11.68 lb(US) (5.298 kg)

Unit Type of Package 3

PAL

Number of Units in Package 3

624

Package 3 Height

40.00 in (101.6 cm)

Package 3 Width

40.00 in (101.6 cm)

Package 3 Length

48.00 in (121.92 cm)

Package 3 Weight

493.00 lb(US) (223.621 kg)

Warranty

18 months
