Arista's Optical Modules and Cable Portfolio delivers high-performance 400G, 100G, 40G, 25G, 10G, 1G, and 100M Ethernet connectivity solutions over fiber and copper. Featuring OSFP, QSFP-DD, QSFP, and SFP transceivers, Arista ensures industry-compliant, high-density, and low-power networking. Designed for diverse applications, these transceivers support Direct Attach Copper Cables (DACs), Active Optical Cables (AOCs), multimode fiber (MMF), and single-mode fiber (SMF), with transmission ranges from 0.5m to 80km. Ideal for data centers, cloud environments, and enterprise networks, Arista provides seamless, scalable, and high-speed connectivity.
| Specification |
Details |
| Model Number |

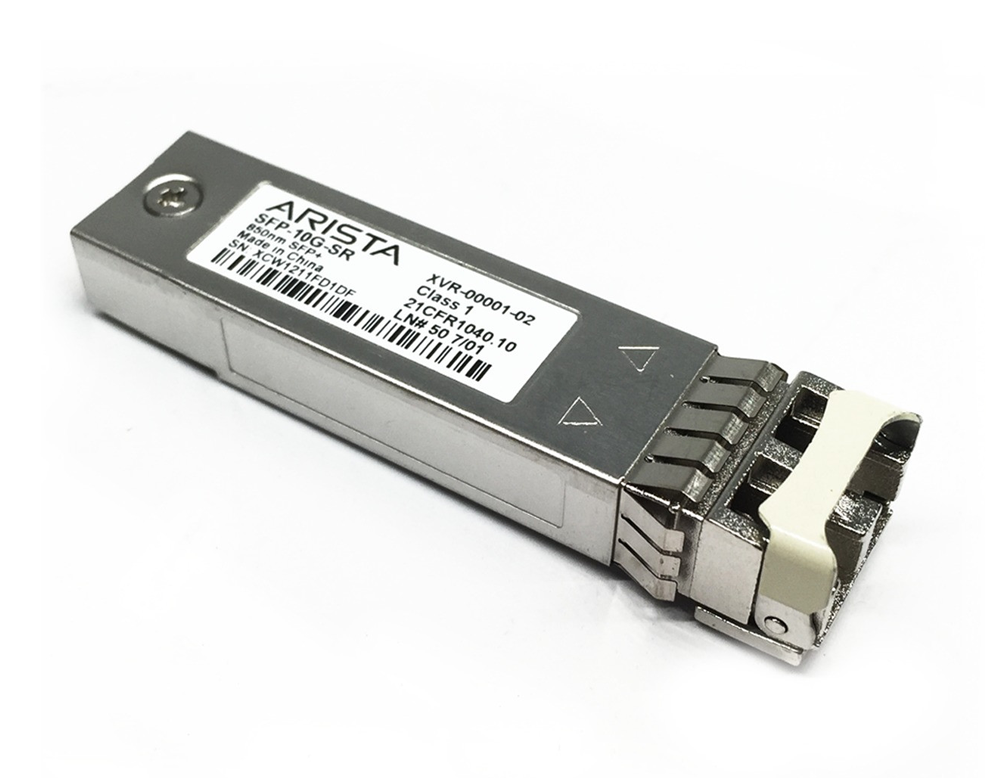

10GBASE-SR |
| Description |
High-performance 10GbE SFP+ transceiver for short-range multimode fiber (MMF) connections |
| Wavelength |
850nm |
| Connector Type |
LC duplex |
| Cable Type |
OM3/OM4 multimode fiber (MMF) |
| Maximum Reach |
OM3 fiber: Up to 300m OM4 fiber: Up to 400m |
| Data Rate |
10 Gbps |
| Power Consumption |
Low power consumption for energy-efficient networking |
| Hot-Swappable |
Yes, for easy installation and replacement |
| Compliance |
IEEE 802.3ae 10GBASE-SR standard |
| Compatibility |
Compatible with Arista switches and other IEEE-compliant 10GbE devices |
FAQs:
1. What type of fiber is required for the Arista 10GBASE-SR module?
It supports multimode fiber (MMF), specifically OM3 and OM4 for short-range connections.
2. What is the maximum transmission distance of this module?
With OM3 fiber, it reaches up to 300 meters, and with OM4 fiber, up to 400 meters.
3. Is the Arista 10GBASE-SR transceiver hot-swappable?
Yes, it supports hot-swapping, allowing for easy installation or replacement without network downtime.
4. Can this module be used in non-Arista switches?
It is compatible with IEEE 802.3ae-compliant devices, but always check vendor-specific compatibility requirements.
5. What is the power consumption of this transceiver?
It operates on low power consumption, making it an efficient choice for high-performance networking.
