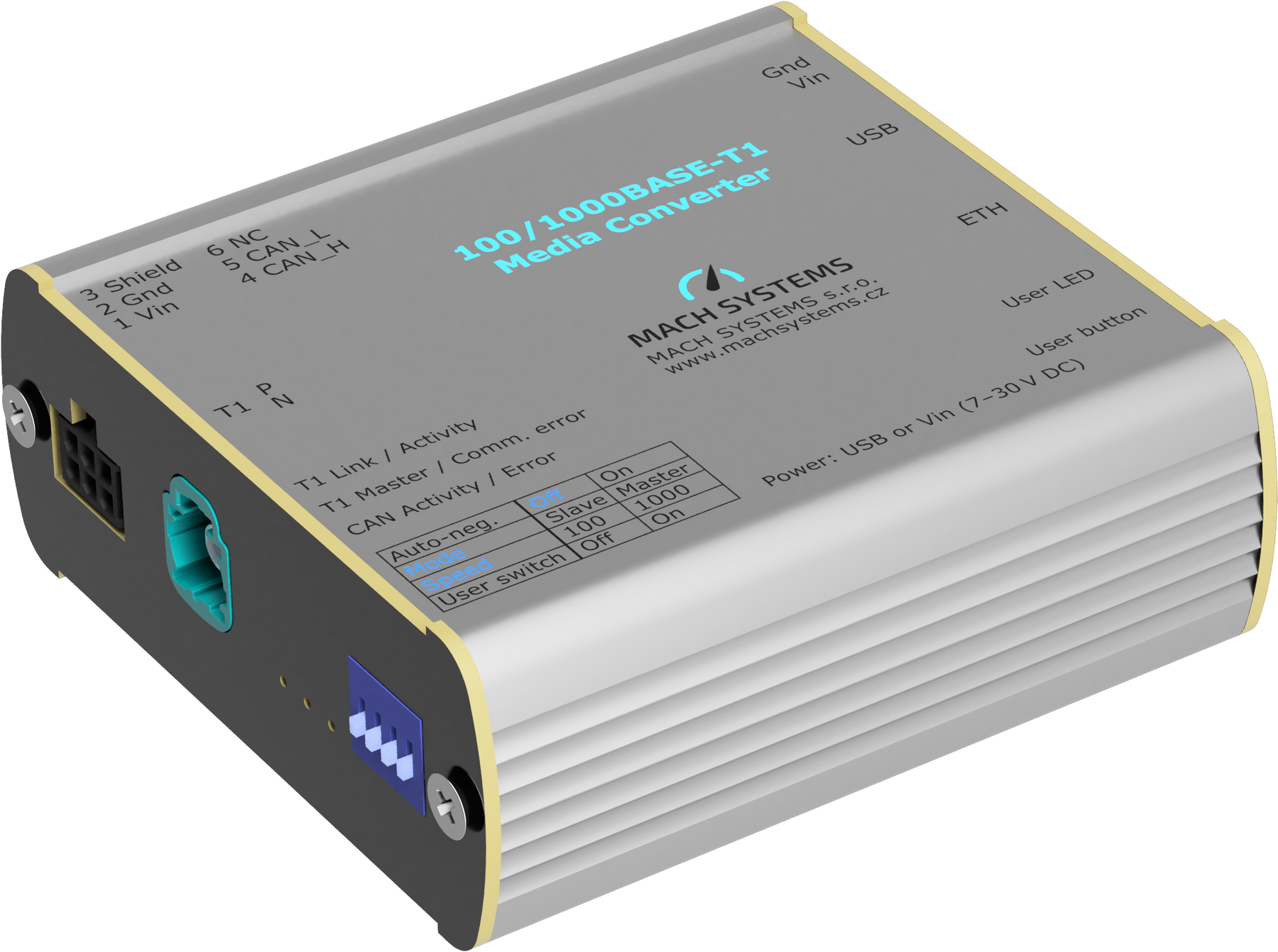

100/1000BASE-T1 Media Converter (Rosenberger H-MTD)

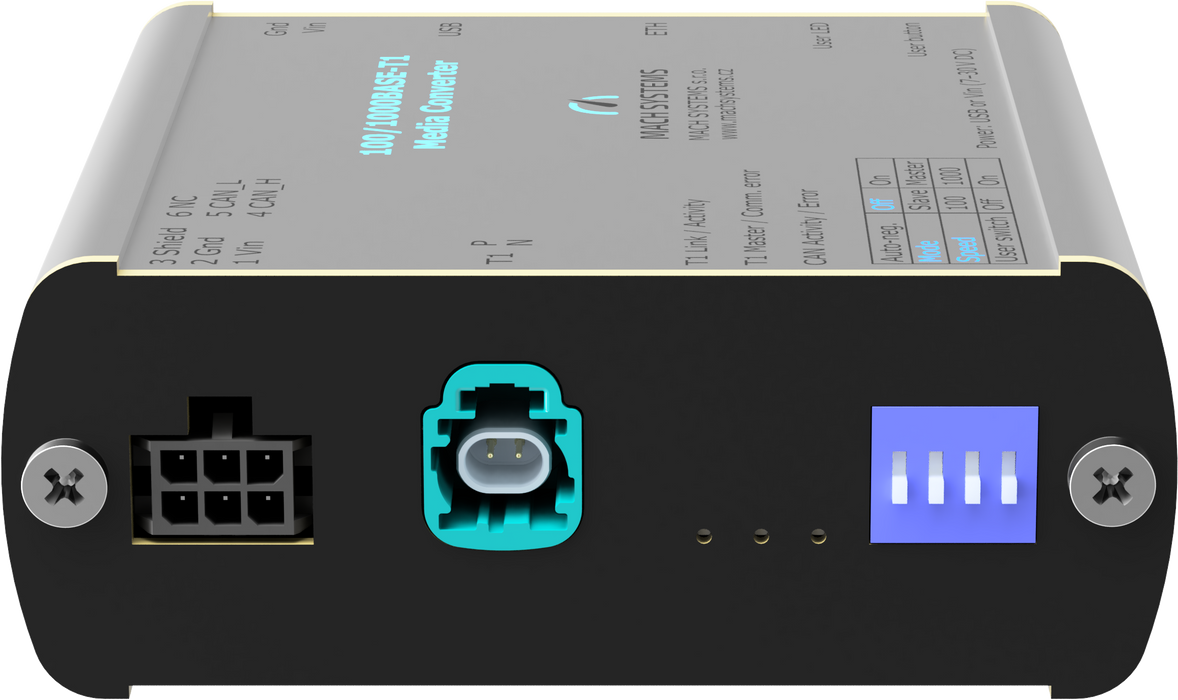

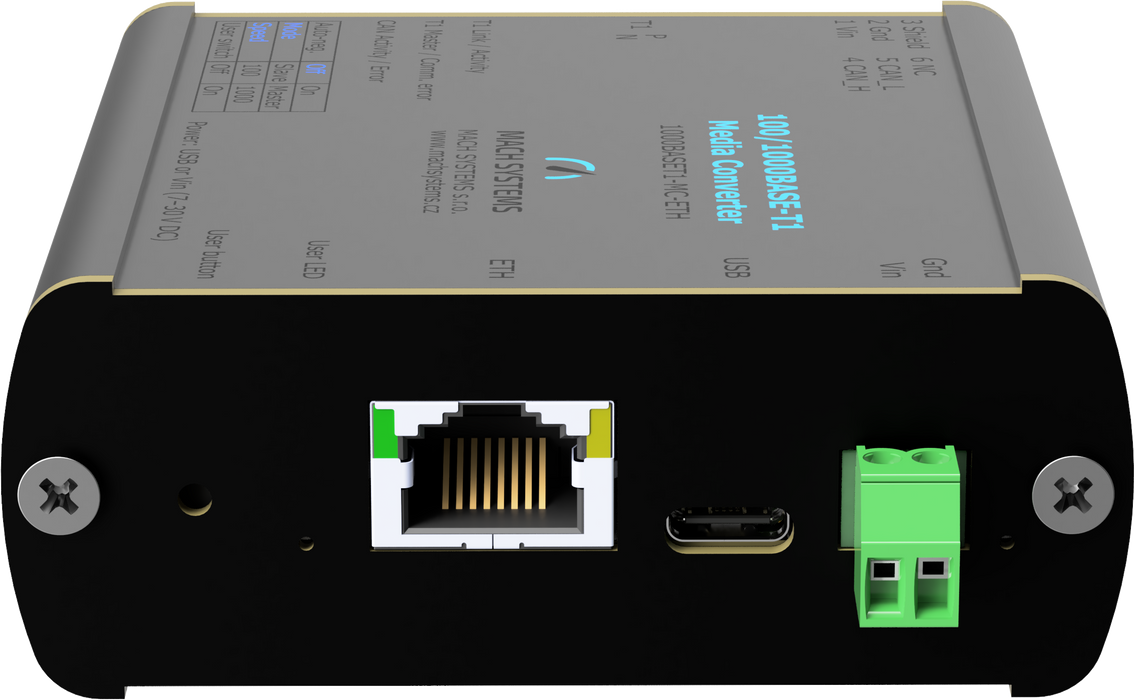

The 100/1000BASE-T1 Media Converter realizes a full-duplex physical-layer conversion between 1000BASE-T1 and 1000BASE-T (Gigabit Ethernet), or 100BASE-T1 and 100BASE-TX (Fast Ethernet) networks and features a Rosenberger H-MTD and RJ-45 connectors. Communication speed and master/slave settings can be auto negotiated with a link partner or set manually by the user. A USB port (VCP) can be used to read device status and port diagnostic. The device can also be used as a USB-CAN(/FD) interface. (Also available with a TE MATEnet connector.

The media converter offers advanced features such as frame generator, cable diagnostic, as well as a possibility to be used as a USB to CAN(/FD) interface simultaneously with the media conversion function.

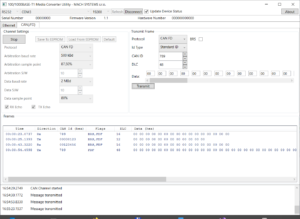

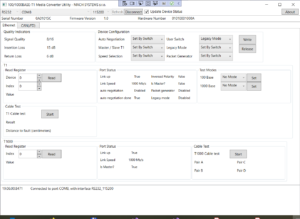

The open communication protocol over USB or CAN(/FD), which allows to read status information and configure port parameters, enables to easily integrate the converter into any system. The user can programmatically configure the device. A free-of-charge PC application is available to visualize the device’s status, configure its parameters and use the advanced functions.

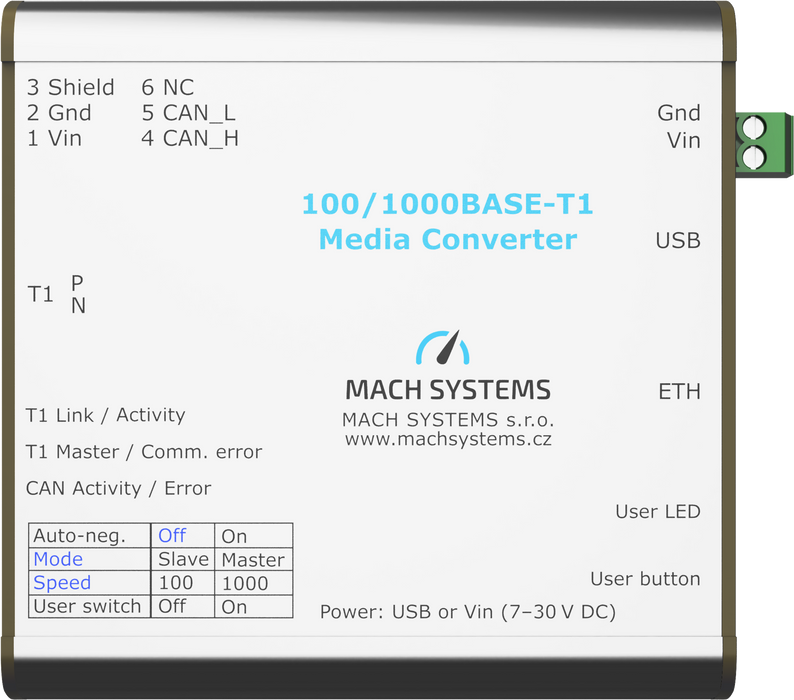

The media converter is an ideal tool for connecting a 100BASE-T1 or 1000BASE-T1 ECU with a computer or a laptop. The in-built status LEDs and dip switches allow to easily use the converter without a PC. (Rosenberger H-MTD connecting cables also available.)
