Overview
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for access, aggregation, and data center top-of-rack (TOR) deployments. With a cloud-centric design that combines a fully programmable OS with the HPE Aruba Networwing Analytics Engine, the CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of HPE Aruba Networking NetEdit and HPE CX Mobile App verify that configurations are flawless and easy to deploy. A powerful HPE Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow's unpredictable demands. HPE Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in highspeed uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices.
Specifications
Model Number:JL762A#B2E
Brand: Aruba
Alt Part Number(s): JL762A#B2E
Product Type: Switch
Technical Description
Brand: Aruba
Model: JL762A#B2E
Ports: 48 × 1G RJ-45, 4 × SFP56 uplink/stacking ports
Switching Capacity: 496 Gbps
Throughput: 369 Mpps
Form Factor: 1U Rackmount, Back-to-front airflow
Latency: As low as 1.46 µs (10 Gbps)
Power Input: AC 120/230V (50/60 Hz), optional redundancy
Additional Highlights:
- Stacking Bandwidth: 200 Gbps
- Jumbo Frame Support: up to 9,198 bytes
- MAC Address Table: 32,768 entries
- Management: CLI, SSH, SNMP, Web GUI, ZTP
- Routing Protocols: BGP, OSPF, VRRP, IGMP, PIM
- VLAN & QoS Support
- Dual firmware support
- IEEE 802.1D/Q/x, LACP, LLDP compliant

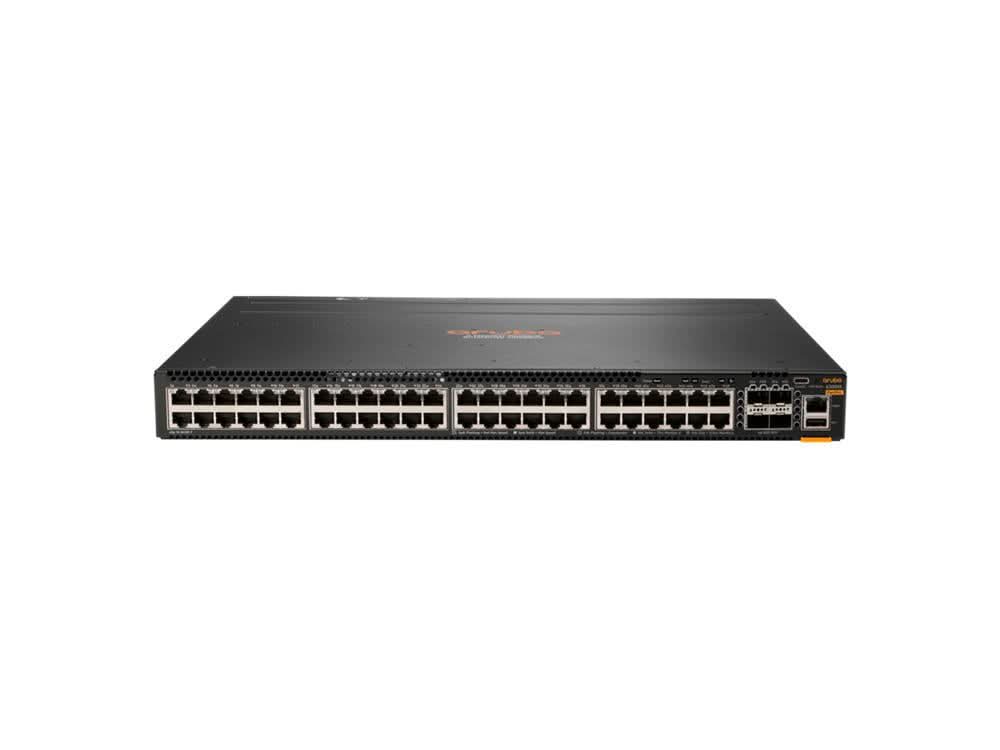

Boost your enterprise performance with the Aruba 6300M Switch 48-ports L3 Rackmount - ORDER TODAY!
*
