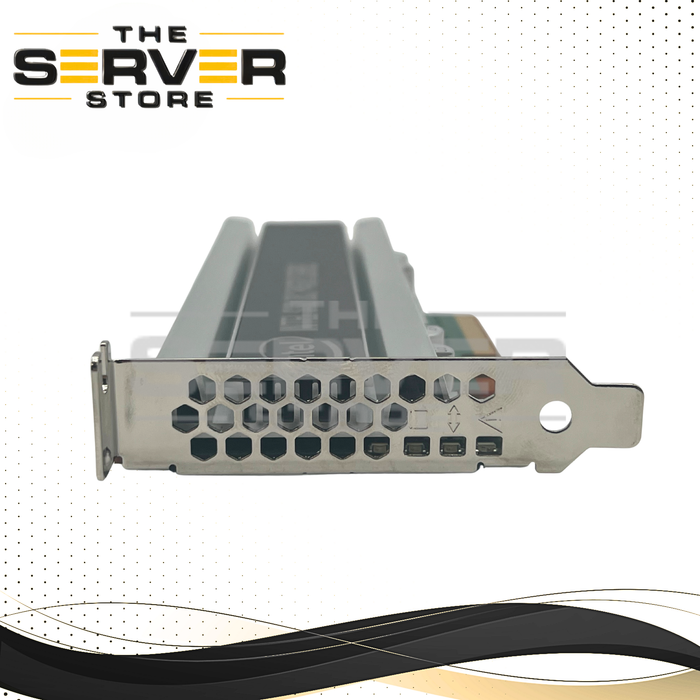

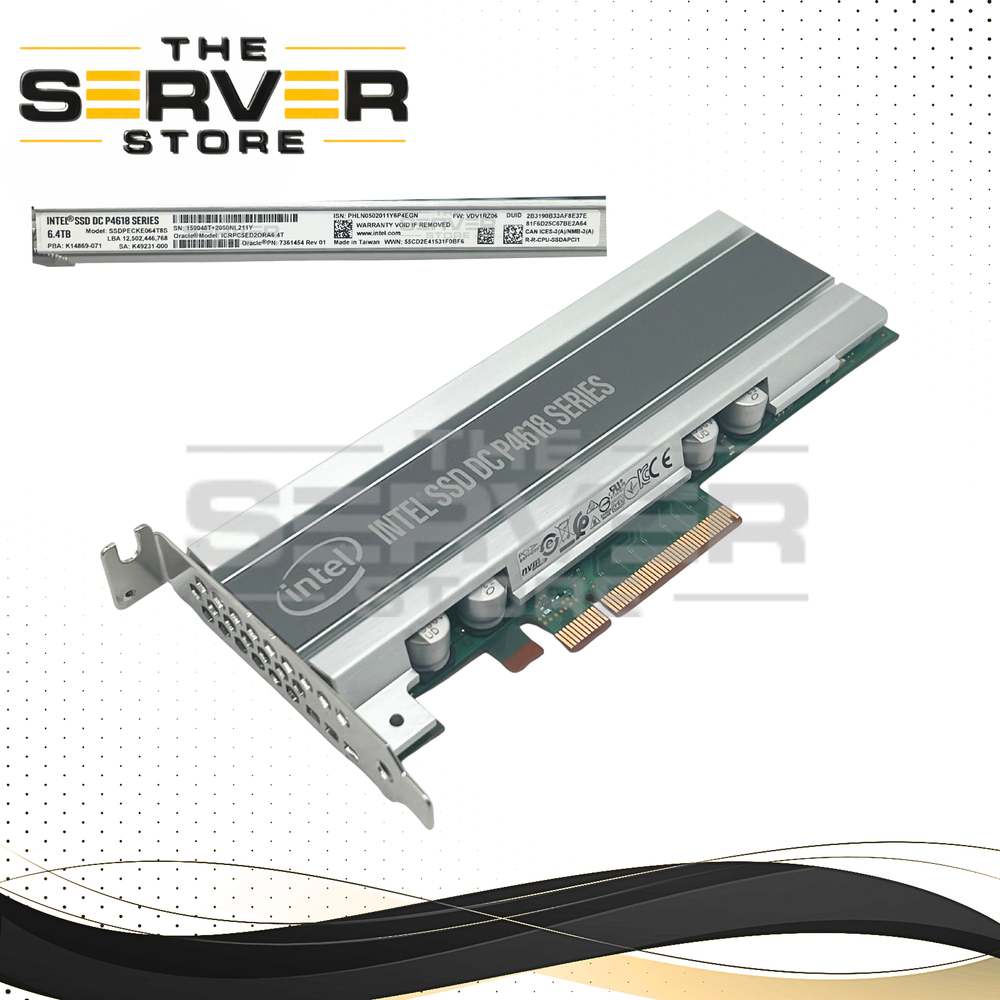

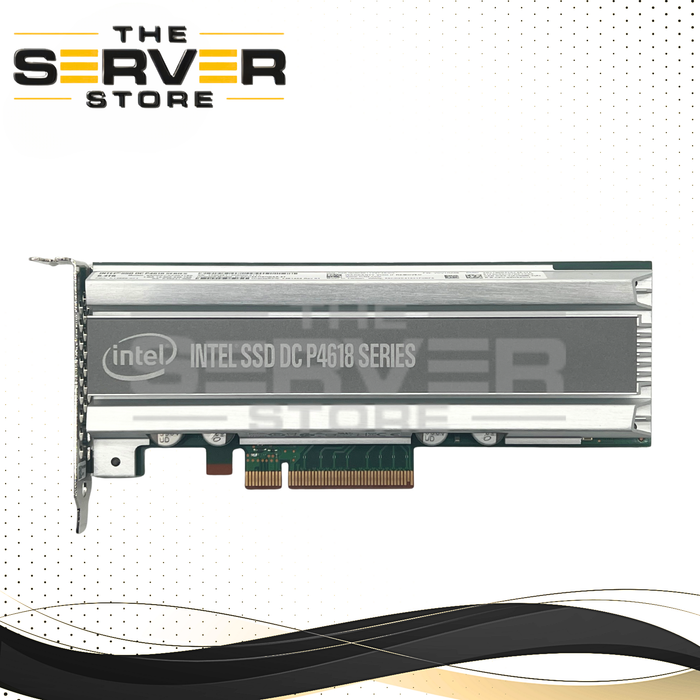

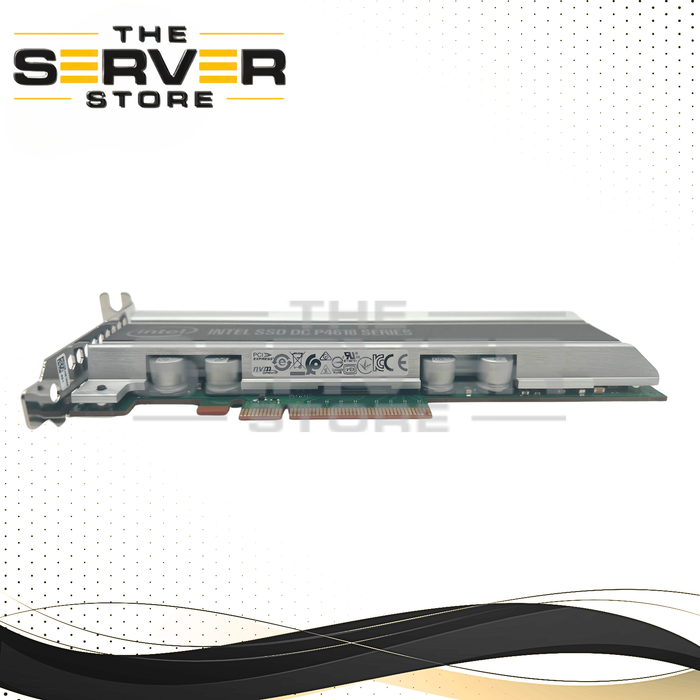

Oracle 6.4TB NVMe PCIe Gen 3.0 x8 HHHL Intel P4618 Series SSDPECKE064T8S 7361454

The Oracle 6.4TB NVMe PCIe SSD (Model: SSDPECKE064T8S, Oracle P/N: 7361454) is based on the Intel DC P4618 Series and delivers enterprise-grade performance for data center, database, virtualization, and high-performance workstation environments. Designed in a Half-Height/Half-Length (HHHL) add-in card (AIC) form factor, it provides ultra-fast NVMe storage over a PCIe 3.1 x8 interface.

Core Technical Specifications

• Model Number: SSDPECKE064T8S

• Oracle Part Number: 7361454

• Capacity: 6.4TB

• Interface: PCIe 3.1 x8 (NVMe)

• Form Factor: HHHL (Half-Height / Half-Length) Add-In Card

• NAND Type: 64-layer 3D TLC NAND

• Power Consumption:

  • 29W (Active / Write)

  • 5W (Idle)

Performance

• Sequential Read: Up to 6,650 MB/s

• Sequential Write: Up to 5,350 MB/s

• Random Read (4KB): Up to 1,210,000 IOPS

• Random Write (4KB): Up to 484,000 IOPS

Durability & Reliability

• Endurance: 4.5 DWPD (5-year rating)

• Total Bytes Written (TBW): ~8.76 PBW

• Encryption: 256-bit AES hardware-based encryption

• Advanced Features:

  • Enhanced power-loss data protection

  • End-to-end data path protection

  • Temperature monitoring and logging

Supported Oracle Systems

x86 Servers

• Oracle Server X7-2

• Oracle Server X7-2L

• Oracle Server X8-2

• Oracle Server X8-2L

• Oracle Server X9-2

• Oracle Server X9-2L

SPARC Servers

• SPARC T7-1

• SPARC T7-2

• SPARC T7-4

• SPARC T8-1

• SPARC T8-2

• SPARC T8-4

• SPARC S7-2L

Engineered Systems

• Oracle Exadata Database Machine

• Oracle ZFS Storage Appliance

Operating System Compatibility

• Oracle Solaris: 11.4 or higher

• Oracle Linux: Versions 6, 7, 8 (UEK required)

• Windows Server: 2016, 2019, 2022

• VMware ESXi: 6.7, 7.0, 8.0

Non-Oracle System Support

Although branded for Oracle (P/N 7361454), the Intel DC P4618 architecture allows operation in other high-performance systems with proper BIOS configuration:

• PowerEdge R740

• PowerEdge R750

• Gigabyte GA-7PESH1

Requires a full PCIe 3.1 x8 physical slot for maximum performance. Some systems may require PCIe bifurcation settings adjustment.

Other Related Part Numbers

ICRPC5ED2ORA6.4T, SSDPECKE064T8S, 7361454

This enterprise NVMe SSD is optimized for high-throughput database workloads, virtualization clusters, and performance-intensive Oracle environments requiring maximum PCIe Gen3 bandwidth.
