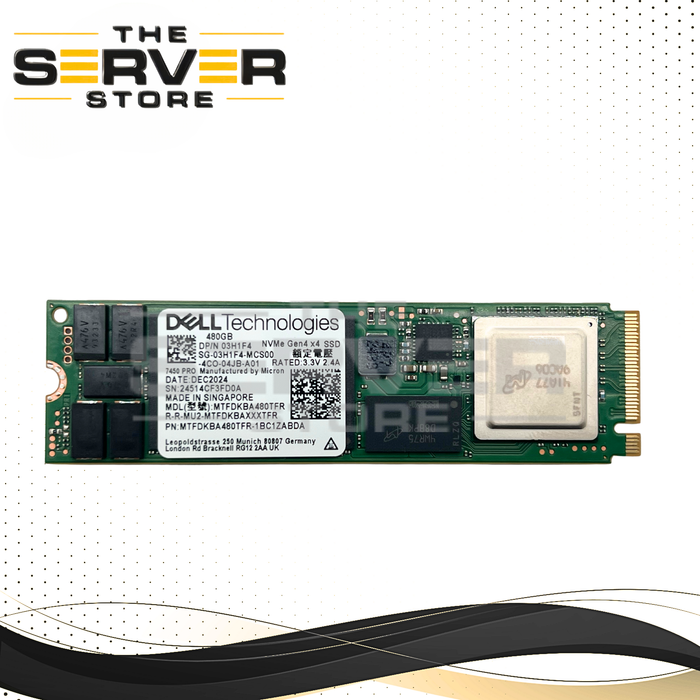

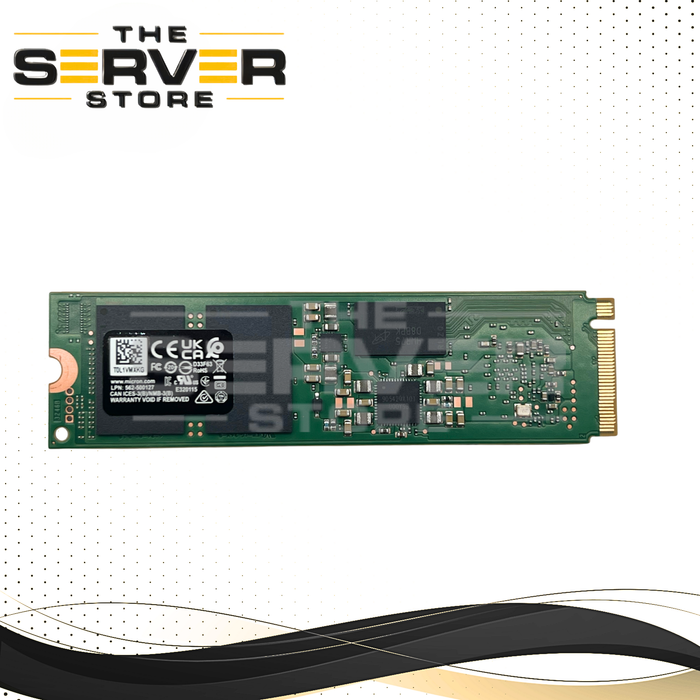

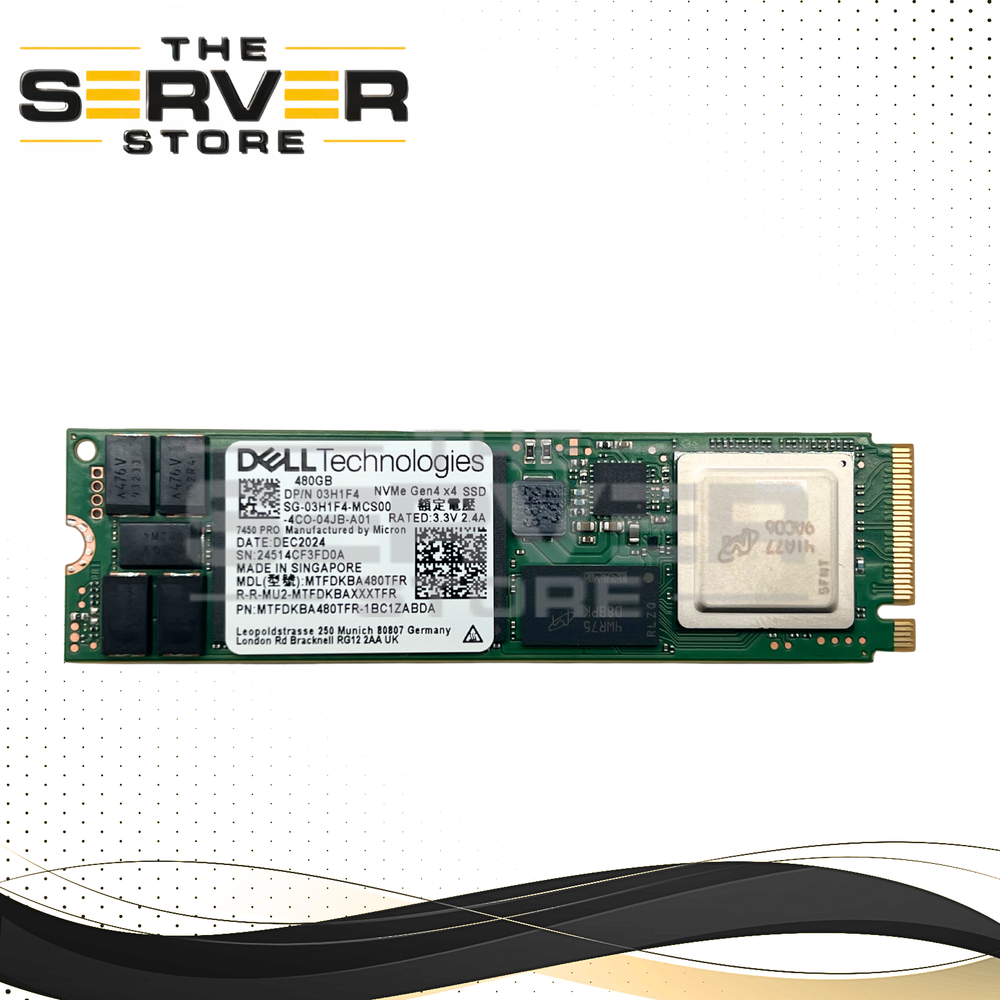

Dell 480GB NVMe 2280 M.2 G4 x4 SSD Micron 7450 PRO MTFDKBA480TFR 03H1F4 3H1F4

The Dell 480GB NVMe 2280 M.2 PCIe Gen4 x4 SSD – Micron 7450 PRO is an enterprise-grade, read-intensive solid state drive engineered specifically for server boot and OS applications in Dell PowerEdge environments. Built on PCIe Gen 4.0 NVMe technology, this SSD delivers fast boot times, low latency, and exceptional reliability for mission-critical infrastructure.

Powered by Micron 176-layer 3D TLC NAND, the 7450 PRO series provides consistent performance and endurance while maintaining strong data protection features. This drive is optimized for Dell BOSS-N1 (Boot Optimized Storage Solution) controller cards, making it an ideal choice for modern PowerEdge server platforms.

Key Specifications

• Product Series: Micron 7450 PRO

• Model Number: MTFDKBA480TFR

• Dell Part Numbers: 03H1F4, 3H1F4

• Capacity: 480GB

• Form Factor: M.2 2280

• Interface: PCIe Gen4 x4

• Protocol: NVMe 1.4

• NAND Flash: 176-Layer 3D TLC NAND

• Endurance Type: Read-Intensive (RI)

Performance

• Sequential Read: Up to 5,000 MB/s

• Sequential Write: Up to 700 MB/s

• Random Read (4KB): Up to 280,000 IOPS

• Random Write (4KB): Up to 40,000 IOPS

Reliability & Endurance

• Endurance Rating: 1 DWPD

• Total Bytes Written (TBW): 800 TB

• Power Loss Protection: Full PLP using on-board capacitors for data-in-flight protection

Security & Features

• Encryption: Self-Encrypting Drive (SED) support

• Security Standards: TCG Opal 2.0 compliant

• Low Latency: Optimized for OS and boot workloads

Compatibility

• Designed for Dell PowerEdge servers (14th, 15th, and 16th Gen)

• Optimized for Dell BOSS-N1 controller cards

• Compatible systems include R660, R760, T560, and other supported PowerEdge models

The Dell Micron 7450 PRO 480GB NVMe SSD is the ideal boot-optimized storage solution for enterprise servers, delivering PCIe Gen4 speed, strong data protection, and long-term reliability in a compact M.2 form factor.
