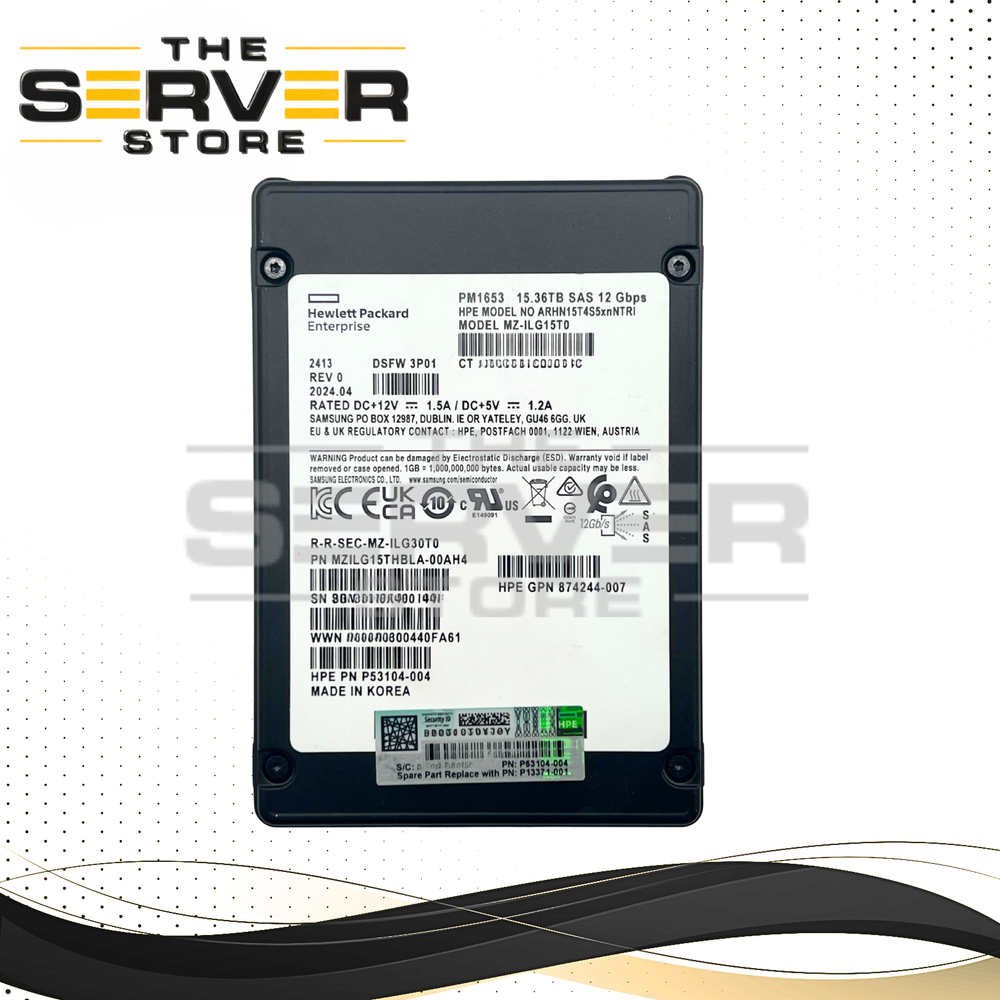

HPE 15.36TB SAS 24G RI SFF 2.5" SED (512e) 15mm SSD Samsung PM1653 Series MZ-ILG15T0 P53104-004

Related Part Numbers:
P53104-004, MZ-ILG15T0, MZILG1515THBLA-00AH4, MZILG1515THBLA, 874244-007, ARHN15T4S5xnNTRI

The HPE 15.36TB Read Intensive (RI) SAS 24G SFF SSD is powered by the Samsung PM1653 Series enterprise platform and is formatted to 512e (512-byte emulation), providing compatibility with standard operating systems, RAID controllers, and enterprise server environments.

This next-generation SAS SSD delivers significant performance improvements over previous SAS 12G solutions while maintaining enterprise-class endurance, reliability, and security.

• HPE Option Kit: P53104-004
• Samsung Base Model: MZ-ILG15T0
• Samsung OEM Model: MZILG1515THBLA
• Samsung Firmware/OEM Extension: MZILG1515THBLA-00AH4
• Regulatory Model: ARHN15T4S5xnNTRI
• Additional Part Number: 874244-007
• Compatible Part Number: P13371-001

• Form Factor: 2.5-inch Small Form Factor (SFF)
• Drive Height: 15mm
• Drive Width: 70mm
• Interface: Dual-Port SAS 24Gb/s (SAS-4)
• Backward Compatibility: SAS 12Gb/s and SAS 6Gb/s
• Flash Technology: Samsung 128-Layer V-NAND TLC

• Formatted Capacity: 15.36TB
• Sector Format: 512e (512-byte Emulation)
• Native Media: 4Kn Physical Sectors

Because the drive is formatted to 512e, it presents standard 512-byte logical sectors to the host operating system, ensuring compatibility with legacy and modern enterprise environments.

• Sequential Read: Up to 4,200 MB/s
• Sequential Write: Up to 3,700 MB/s
• Random Read (4KB): Up to 800,000 IOPS
• Random Write (4KB): Up to 140,000 IOPS

Maximum performance requires a SAS 24Gb/s-capable controller and backplane.

• Workload Type: Read Intensive (RI)
• Endurance Rating: 1 DWPD (Drive Write Per Day)
• Total Bytes Written (TBW): ~28,032 TB
• MTBF: 2,500,000 Hours
• UBER: 1 Sector per 10¹⁷ Bits Read
• Power Loss Protection (PLP): Yes
• End-to-End Data Path Protection: Yes

SED (Self-Encrypting Drive)

The Samsung PM1653 hardware includes integrated enterprise-class security features:

• AES 256-bit Hardware Encryption
• TCG Enterprise Security Compliance
• TCG Opal Support
• Instant Cryptographic Erase
• Zero Performance Impact Encryption
• Data-at-Rest Protection

The drive automatically encrypts all stored data using a hardware encryption engine embedded in the controller.

• Operating Power Consumption: Approximately 11W–14W
• Idle Power Consumption: Approximately 5W
• Operating Temperature Range: 0°C to 70°C

This SSD is delivered in 512e format, not 520-byte sectors.

It is suitable for:

• HPE ProLiant Servers
• Windows Server
• Linux Distributions
• VMware ESXi
• Broadcom / LSI SAS Controllers
• HPE Smart Array Controllers

No additional sector conversion is required for standard server deployments.

Part Numbers Covered

P53104-004 | MZ-ILG15T0 | MZILG1515THBLA-00AH4 | MZILG1515THBLA | 874244-007 | ARHN15T4S5xnNTRI
