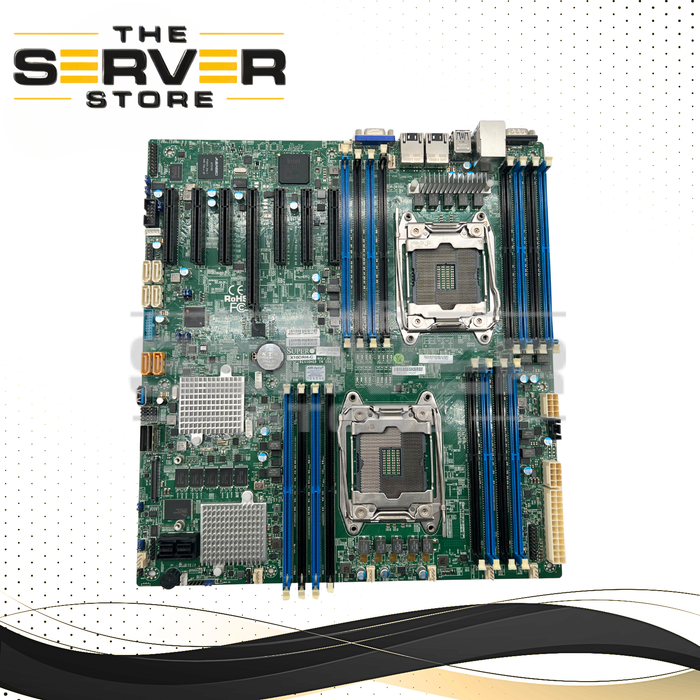

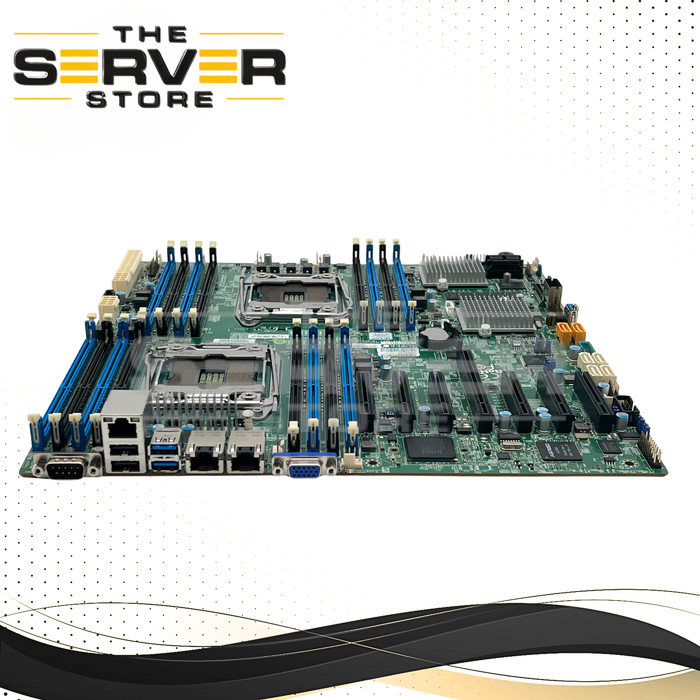

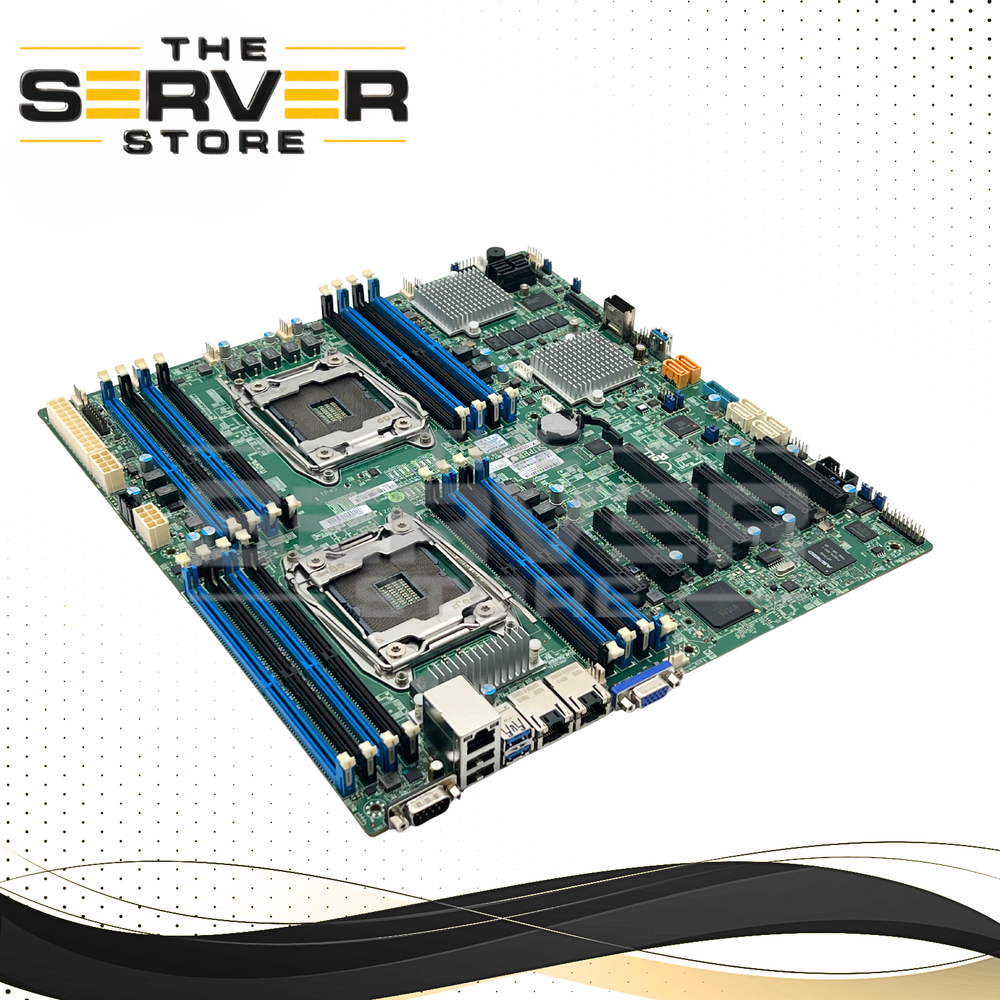

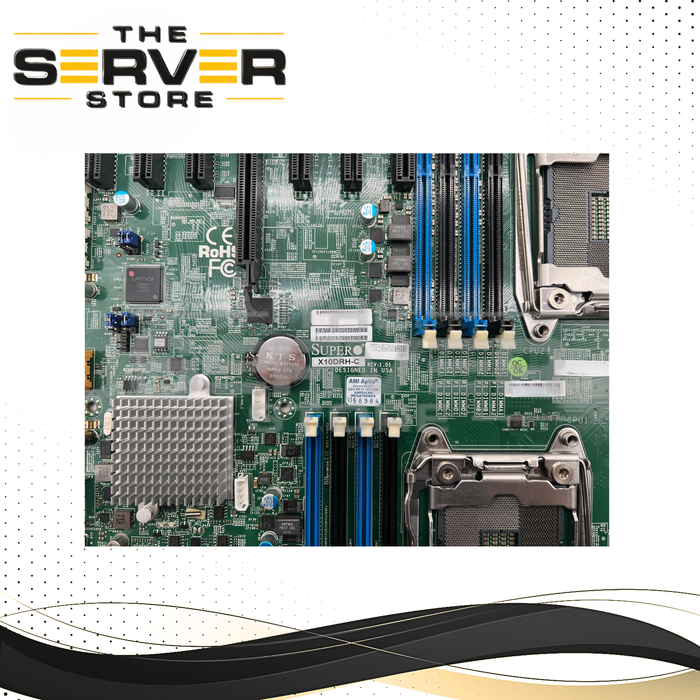

Supermicro Dual Xeon E5-2600 v4 v3 LGA2011-3 DDR4 E-ATX Motherboard X10DRH-C

The Supermicro X10DRH-C is a high-performance E-ATX server motherboard engineered for demanding enterprise, virtualization, and data center workloads. Designed to support dual Intel® Xeon® E5-2600 v3 and v4 processors, this motherboard delivers exceptional compute density, memory capacity, and storage flexibility for mission-critical server deployments.

Powered by the Intel C612 chipset, the X10DRH-C supports up to 2TB of DDR4 ECC memory, integrated SAS3 RAID, and advanced remote management through IPMI 2.0, making it an ideal foundation for scalable and reliable server systems.

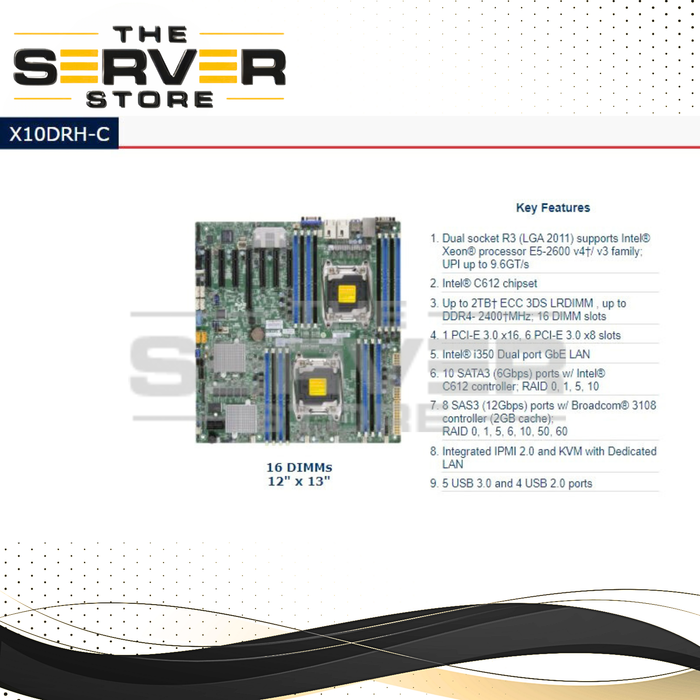

Key Specifications

• Model: Supermicro X10DRH-C

• Form Factor: E-ATX (12" × 13" / 30.48 × 33.02 cm)

• CPU Sockets: Dual Socket R3 (LGA 2011-3)

• Supported CPUs: Intel Xeon E5-2600 v3 & v4 (TDP up to 145W)

• Chipset: Intel C612

Memory Support

• Memory Slots: 16 × DDR4 DIMM

• Maximum Capacity:

  • Up to 1TB ECC Registered (RDIMM)

  • Up to 2TB ECC 3DS LRDIMM

• Memory Speed: Up to 2400 MHz (CPU and memory dependent)

Expansion & Storage

• PCIe Slots:

  • 1 × PCIe 3.0 x16

  • 6 × PCIe 3.0 x8

• Storage Interfaces:

  • Intel C612: 10 × SATA III (6Gb/s) with RAID 0, 1, 5, 10

  • Broadcom 3108: 8 × SAS3 (12Gb/s) with 2GB cache

    • Hardware RAID 0, 1, 5, 6, 10, 50, 60

Networking & Management

• LAN:

  • Dual Gigabit Ethernet (Intel I350)

  • Dedicated IPMI management LAN

• Remote Management:

  • IPMI 2.0 with KVM-over-LAN

  • ASPEED AST2400 BMC

I/O & Connectivity

• USB Ports:

  • 5 × USB 3.0 (2 rear, 2 via header, 1 Type-A)

  • 4 × USB 2.0 (2 rear, 2 via header)

• Integrated Graphics: ASPEED AST2400

• BIOS: 128Mb SPI Flash EEPROM, AMI BIOS with UEFI 2.3.1

Power & Operating Environment

• Power Connectors: Standard ATX + additional CPU power connectors

• Operating Temperature: 10°C to 35°C

Ideal Use Cases

• Enterprise and data center servers

• Virtualization and private cloud infrastructure

• Database and storage servers

• High-performance computing (HPC)

• Mission-critical business applications

The Supermicro X10DRH-C Dual Xeon Server Motherboard offers exceptional scalability, enterprise-grade reliability, and advanced storage and management features, making it a powerful and flexible platform for professional server environments.
