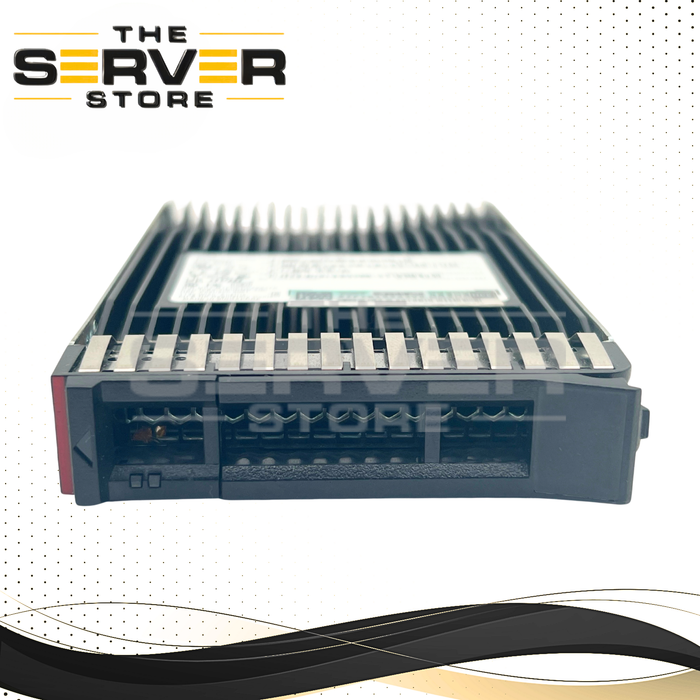

Micron 3.84TB NVMe U.3 G4 x4 RI 2.5" TCG Opal SSD 7450 Pro Series MTFDKCC3T8TFR Lenovo ThinkSystem Servers

Micron 3.84TB NVMe U.3 PCIe Gen4 x4 RI 2.5" TCG Opal SSD 7450 Pro Series MTFDKCC3T8TFR for Lenovo ThinkSystem Servers
Other Related Part Numbers: MTFDKCC3T8TFR | Lenovo PN: 4XB7A82259 | Feature Code: BQZT

The Micron 7450 Pro 3.84TB NVMe SSD (MTFDKCC3T8TFR) is an enterprise-grade, read-intensive storage solution featuring a PCIe Gen4 x4 interface in a 2.5-inch (15mm) U.3 form factor. Built on Micron’s 176-layer 3D TLC NAND technology, it delivers exceptional performance with consistently low latency, making it ideal for modern Lenovo ThinkSystem data center environments.

Core Technical Specifications

• Capacity: 3.84TB
• Interface: PCIe Gen4 x4 (NVMe 1.4)
• Form Factor: 2.5-inch U.3 (15mm, backward compatible with U.2)
• NAND Type: 176-layer 3D TLC NAND
• Workload Type: Read Intensive (RI)

Performance Metrics

• Sequential Read: Up to 6,800 MB/s
• Sequential Write: Up to 5,300 MB/s
• Random Read (4KB): Up to 1,000,000 IOPS
• Random Write (4KB): Up to 180,000 IOPS
• Latency (Typical): ~80µs Read / ~15µs Write
• QoS: Sub-2ms latency for 99.9999% of workloads

Reliability & Endurance

• Endurance: 1.0 DWPD (5 years)
• Total Bytes Written (TBW): ~7,000 TB
• MTTF: 2,000,000 hours
• UBER: <1 per 10¹⁷ bits read
• Power Loss Protection: Yes

Security Features

• Encryption: TCG Opal 2.01 (SED)
• Secure Execution Environment (SEE) with isolated processing
• Advanced data protection and integrity features

Power & Environmental

• Power Consumption: ~12W (typical read/write)
• Operating Temperature: 0°C to 70°C

Key Features

• U.3 Tri-Mode Compatibility: Supports NVMe and U.2 infrastructures
• Ultra-Low Latency: Optimized for virtualization, databases, and analytics
• Enterprise Reliability: Designed for 24/7 mission-critical workloads
• Power Loss Protection: Preserves data integrity during outages

Lenovo ThinkSystem Compatibility

This SSD is fully compatible with a wide range of current-generation Lenovo ThinkSystem servers and is commonly referenced under Lenovo Part Number 4XB7A82259 (Feature Code BQZT).

Rack Servers

• 1U: SR630 V2, SR630 V3, SR635 V3
• 2U: SR650 V2, SR650 V3, SR655 V3, SR665 V3
• Mission-Critical: SR850 V2/V3, SR860 V2/V3

Tower & Edge Servers

• Tower: ST650 V2, ST650 V3
• Edge: ThinkEdge SE450, SE455 V3

High-Density & GPU Platforms

• Multi-Node: SD650 V3, SD665 V3
• GPU Systems: SR670 V2, SR675 V3

Critical Compatibility Notes

• Drive Bay Requirement: Must use NVMe AnyBay or U.3-enabled backplanes (NOT SAS/SATA-only)
• Drive Tray / Caddy: Requires Lenovo Gen4 2.5" hot-swap NVMe tray for proper installation
• OS Support: Requires UEFI mode and NVMe-compatible OS (Windows Server 2019/2022, RHEL 8.x+)
• Backward Compatibility: U.3 drives are compatible with U.2 infrastructure when supported

Summary

The Micron 7450 Pro 3.84TB NVMe SSD (MTFDKCC3T8TFR) is a high-performance, enterprise-class storage solution engineered for Lenovo ThinkSystem platforms. With PCIe Gen4 speeds, ultra-low latency, and robust endurance, it is ideal for cloud infrastructure, virtualization, databases, and data-intensive enterprise applications.
