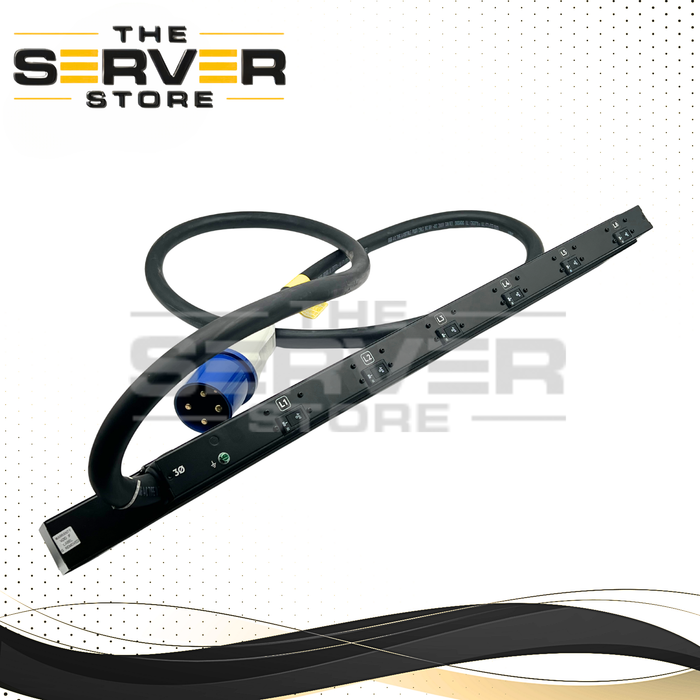

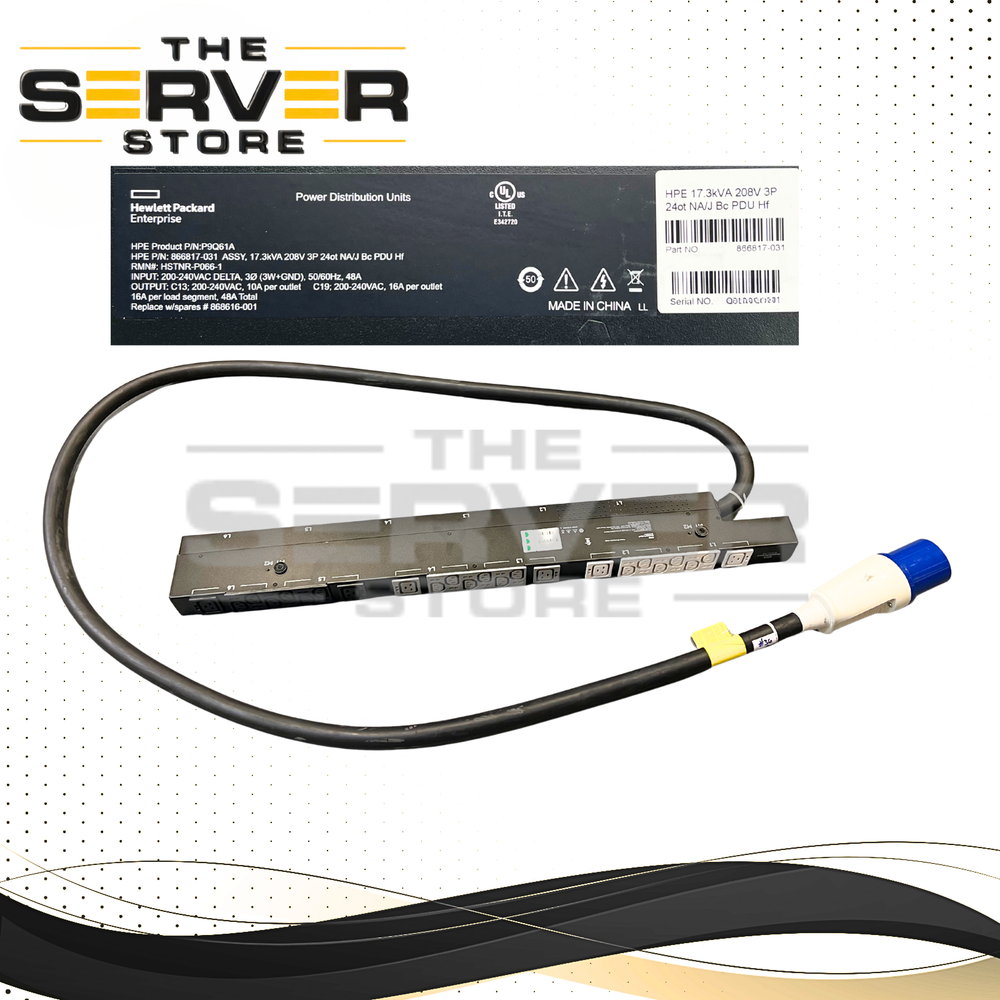

HPE G2 Basic 3PH 17.3kVA / 60309 60A 18xC13 6xC19 PDU 866817-031 P9Q61A

The HPE P9Q61A is a high-density G2 Basic 3-Phase Power Distribution Unit (PDU) engineered for enterprise rack environments requiring reliable, high-capacity power delivery. Designed for North American and Japanese data centers, this unit provides efficient power distribution with a compact vertical (0U) form factor.

Related Part Numbers

866817-031, P9Q61A, HSTNR-P066-1, 868616-001

Core Technical Specifications

• Model: HPE G2 Basic 3-Phase PDU
• Power Capacity: 17.3 kVA
• Input Voltage: 200–208V AC (3-Phase Delta)
• Input Current: 60A (Rated) / 48A (Derated for continuous load)

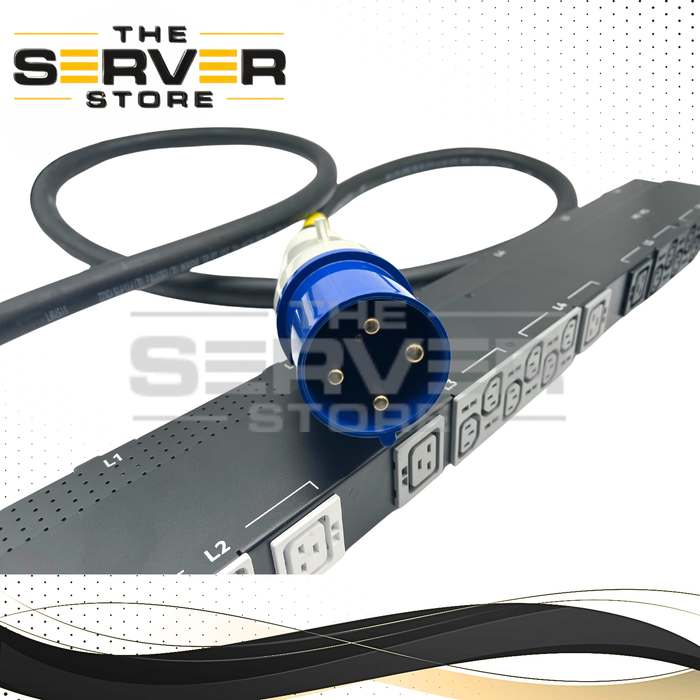

• Input Plug: IEC 60309, 60A, 4-Wire (3P+E)

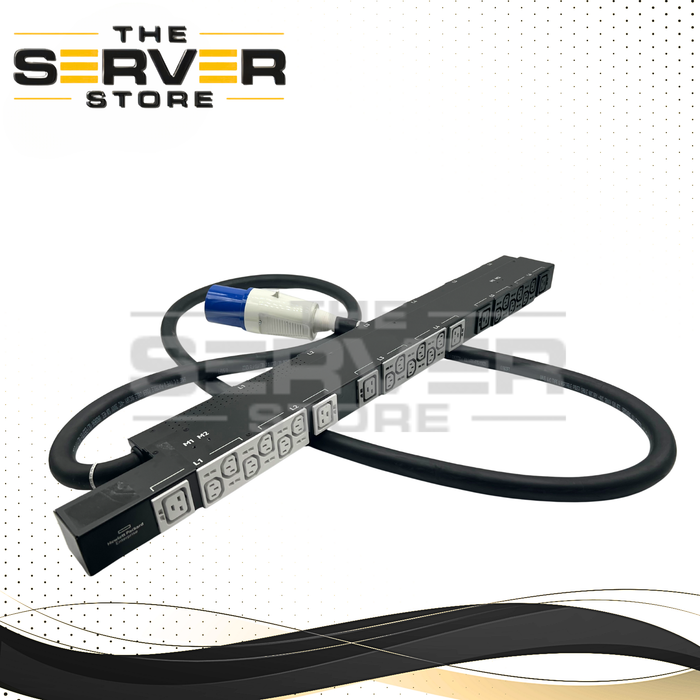

Outlet Configuration

• Total Outlets: 24
  • (18) IEC C13
  • (6) IEC C19

Electrical Protection

• Circuit Breakers:
  (6) 2-pole, 20A breakers for balanced load distribution and protection

Physical & Environmental

• Form Factor: 0U Vertical (Half-Height)
• Dimensions: Approx. 36" (H) x 2" (W) x 4.4" (D)
• Mounting: Tool-less mounting (button and keyhole compatible with HPE racks)
• Operating Temperature: Up to 60°C (140°F)

Key Features

• High-Density Power Distribution:
  Supports multiple servers and network devices within a single rack
• Color-Coded Outlets & Breakers:
  Simplifies phase balancing and power path identification
• Locking Cable Support:
  Compatible with IEC locking power cords to prevent accidental disconnections
• Compact Design:
  0U vertical installation preserves valuable rack space
• Enterprise Reliability:
  Built for continuous operation in high-demand data center environments

Compatibility

• Designed for HPE Advanced and Enterprise racks
• Compatible with standard 19-inch data center racks supporting vertical PDUs
• Suitable for servers, storage, and networking equipment using C13/C19 connectors

Important Notes

• This is a Basic PDU (no remote monitoring or metering features)
• Requires 3-phase 208V power source with IEC 60309 60A input
• Ensure proper load balancing across phases to maximize efficiency and safety

Summary

The HPE P9Q61A 17.3kVA G2 Basic PDU is a robust and space-efficient power distribution solution for enterprise racks. With a high outlet count, reliable circuit protection, and support for 3-phase power, it is ideal for dense server deployments requiring consistent and scalable power delivery.
