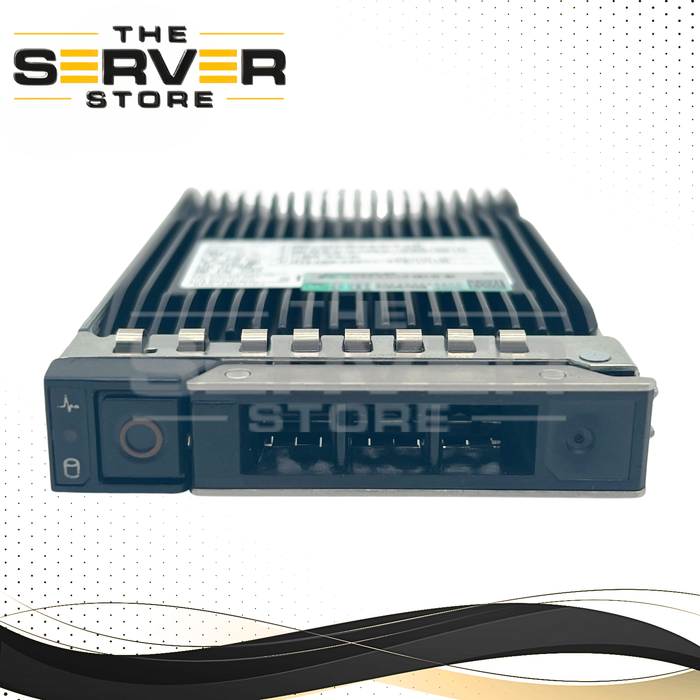

Micron 7.68TB NVMe U.3 PCIe Gen 4.0 x4 RI 2.5" SSD 7450 Pro Series for Dell PowerEdge Server with tray for Gen: 16th 15th 14th MTFDKCC7T6TFR

Micron 7.68TB NVMe U.3 G4 x4 RI 2.5" SSD 7450 Pro Series MTFDKCC7T6TFR (Dell PowerEdge Compatibility)

The Micron 7450 Pro (MTFDKCC7T6TFR) is a high-performance 7.68TB enterprise NVMe SSD designed for Read Intensive (RI) workloads. Built with advanced 176-layer 3D TLC NAND, it delivers exceptional throughput, low latency, and consistent Quality of Service (QoS) for modern data center applications.

Related Part Numbers

MTFDKCC7T6TFR, MTFDKCC7T6TFR-1BC1ZABHA

Core Technical Specifications

Capacity: 7.68TB
Interface: PCIe Gen4 x4 (NVMe 1.4b)
Form Factor: 2.5-inch U.3 (15mm, backward compatible with U.2)
NAND Type: 176-layer 3D TLC NAND
Sector Size: 512B / 4Kn (configurable)

Performance Metrics

Sequential Read: Up to 6,800 MB/s
Sequential Write: Up to 5,600 MB/s
Random Read (4KB): Up to 1,000,000 IOPS
Random Write (4KB): Up to 215,000 IOPS
Latency (Typical): ~80µs Read / ~15µs Write
QoS: ≤2ms latency for 99.9999% of operations

Reliability & Endurance

Workload Type: Read Intensive (RI)
Endurance: 1 DWPD (Drive Writes Per Day for 5 years)
Total Bytes Written (TBW): ~14,000 TB
MTTF: 2,000,000 hours
Warranty: 5-Year limited

Power & Environmental

Power Consumption:
Read: ~12.1W
Write: ~16.6W
Operating Temperature: 0°C to 70°C

Security Features

Firmware Security: Digitally signed firmware
Platform Security: Secure Boot & Secure Execution Environment
Encryption: Typically Non-SED (no hardware encryption on this variant)

Key Features

U.3 Tri-Mode Compatibility:
Works with NVMe, U.2, and tri-mode backplanes for flexible deployment

Low Latency & High QoS:
Ideal for latency-sensitive applications such as databases and virtualization

Enterprise Reliability:
Designed for 24/7 operation in high-demand data center environments

Required Drive Tray

DXD9H (0DXD9H) – Standard 2.5-inch SFF carrier for Dell PowerEdge 14G / 15G / 16G servers

• Supports NVMe (Gen3 & Gen4), SAS, and SATA
• Designed for 2.5" drives including 15mm height SSDs
• Includes integrated light pipes for drive status (activity/health LEDs)

Compatible Dell PowerEdge Servers

16th Generation (G16):
R660, R760, R660xs, R760xs, R6615, R6625, R7615, R7625, T560

15th Generation (G15):
R650, R750, R650xs, R750xs, R6515, R6525, R7515, R7525, T550

14th Generation (G14):
R640, R740, R740xd, R840, R940, R6415, R7415, R7425, C6420

Technical Compatibility Notes

• Backplane Requirement: Must have an NVMe-enabled or Universal backplane (SAS/SATA-only bays will not support this SSD)
• Performance Scaling:
  • Gen4 speeds (up to 6,800 MB/s) on 15G & 16G servers
  • Downclocks to Gen3 speeds (~3,500 MB/s) on 14G servers
• Controller Support: Compatible with Dell PERC H745, H755, H755N (NVMe), and HBA355i
• System Recognition: May display as “Non-Dell Certified” in iDRAC when using retail Micron firmware (no impact on functionality)

Summary

The Micron 7450 Pro 7.68TB NVMe SSD (MTFDKCC7T6TFR) is a powerful enterprise storage solution optimized for high-speed, read-intensive workloads. When paired with the DXD9H tray, it integrates seamlessly into Dell PowerEdge 14G, 15G, and 16G platforms, delivering excellent performance, flexibility, and reliability for modern data center environments.
