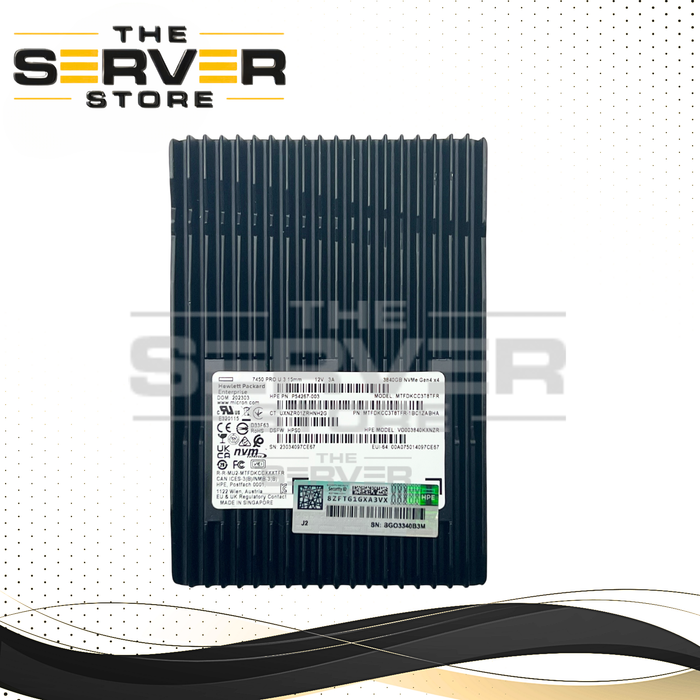

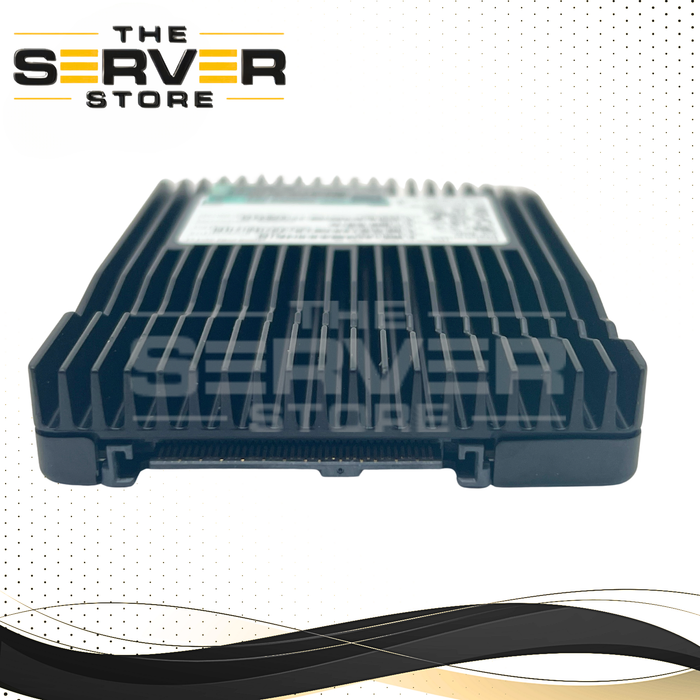

Micron 3.84TB NVMe U.3 G4 x4 RI 2.5" TCG Opal SSD 7450 Pro Series MTFDKCC3T8TFR
Other Related Part Numbers: MTFDKCC3T8TFR, MTFDKCC3T8TFR-1BC1ZABHA
The Micron 7450 Pro 3.84TB NVMe SSD (MTFDKCC3T8TFR) is an enterprise-grade, read-intensive PCIe Gen4 x4 storage solution in a 2.5-inch U.3 (15mm) form factor. Built with advanced 176-layer 3D TLC NAND, it delivers high throughput, ultra-low latency, and consistent performance for modern data center environments across multiple server platforms.
Core Technical Specifications
- Capacity: 3.84TB
- Interface: PCIe Gen4 x4 (NVMe 1.4)
- Form Factor: 2.5-inch U.3 (15mm, backward compatible with U.2)
- NAND Type: 176-layer 3D TLC
- Workload Type: Read Intensive (RI)
Performance Metrics
- Sequential Read: Up to 6,800 MB/s
- Sequential Write: Up to 5,300 MB/s
- Random Read (4KB): Up to 1,000,000 IOPS
- Random Write (4KB): Up to 180,000 IOPS
- Latency: ~80µs Read / ~15µs Write
- QoS: Sub-2ms latency (99.9999%)
Reliability & Endurance
- Endurance: 1.0 DWPD (5 years)
- Total Bytes Written (TBW): ~7,000 TB
- MTTF: 2,000,000 hours
- UBER: <1 per 10¹⁷ bits read
- Power Loss Protection: Yes
Security Features
- Encryption: TCG Opal 2.01 (SED)
- Secure Execution Environment (SEE)
- End-to-End Data Protection
Power & Environmental
- Power Consumption: ~12W typical
- Operating Temperature: 0°C to 70°C
Key Features
-
U.3 Tri-Mode Compatibility: Works with NVMe / U.2 backplanes
-
PCIe Gen4 Performance: High bandwidth and low latency
-
Enterprise QoS: Stable latency for mission-critical workloads
-
24/7 Reliability: Designed for continuous data center operation
Compatible Server Manufacturers & Platforms
This SSD is an industry-standard NVMe U.3 drive and is compatible with major enterprise server platforms when equipped with NVMe-enabled backplanes (U.2/U.3 / AnyBay / Tri-Mode).
Dell PowerEdge (14G / 15G / 16G)
16th Gen (Full Gen4 Performance)
R660, R660xs, R760, R760xa, R760xs, R760xd2, R860, R960, T360, T560
15th Gen (Full Gen4 Performance)
R650, R650xs, R6515, R6525, R750, R750xa, R750xs, R7515, R7525, T550
14th Gen (Gen3 Speeds Only)
R440, R640, R6415, R740, R740xd, R740xd2, R7415, R7425, R840, R940, R940xa, T640
HPE ProLiant (Gen10 / Gen10 Plus / Gen11)
Gen11 (Full Gen4 Performance)
DL320, DL325, DL345, DL360, DL365, DL380, DL385, ML350
Gen10 Plus (Full Gen4 Performance)
DL325, DL345, DL360, DL365, DL380, DL385
Gen10 (Gen3 Speeds Only)
DL160, DL180, DL325, DL360, DL380, DL385, DL560, DL580, ML110, ML350
Lenovo ThinkSystem
SR630 V2/V3, SR650 V2/V3, SR550, SR590, SR530, SR645, SR655, SR665, SR850 V2/V3, SR860 V2/V3, SR950
ST550, ST650 V2/V3
SD530, SD650 V3, SN550 V2, SN850
Cisco UCS Servers
C220 M5 / M6 / M7 / M8
C240 M5 / M6 / M7 / M8
C480 M5
C4200 chassis nodes
X-Series (X210c / X215c)
Supermicro Servers
Compatible with all SuperServer and Ultra / Storage systems supporting:
- 2.5" NVMe U.2 / U.3 drives
- NVMe or Tri-Mode backplanes
- Broadcom / LSI 95xx / 96xx controllers
Compatibility Requirements
-
Backplane Required: NVMe (U.2/U.3) or Tri-Mode backplane (SAS/SATA-only NOT supported)
-
Drive Tray/Caddy: Must match server manufacturer (Dell / HPE / Lenovo / Cisco / Supermicro)
-
PCIe Generation:
- Gen4 systems = full performance
- Gen3 systems = speed limited (~3,500 MB/s)
Important Notes
- U.3 drives are backward compatible with U.2 NVMe systems
- May be recognized as “non-certified” in OEM systems depending on firmware
- Full performance requires proper NVMe configuration and firmware support
Summary
The Micron 7450 Pro 3.84TB NVMe SSD (MTFDKCC3T8TFR) is a high-performance, enterprise-class storage solution designed for broad compatibility across Dell, HPE, Lenovo, Cisco, and Supermicro servers. With PCIe Gen4 speeds, low latency, and strong endurance, it is ideal for virtualization, cloud infrastructure, databases, and high-performance enterprise workloads.
