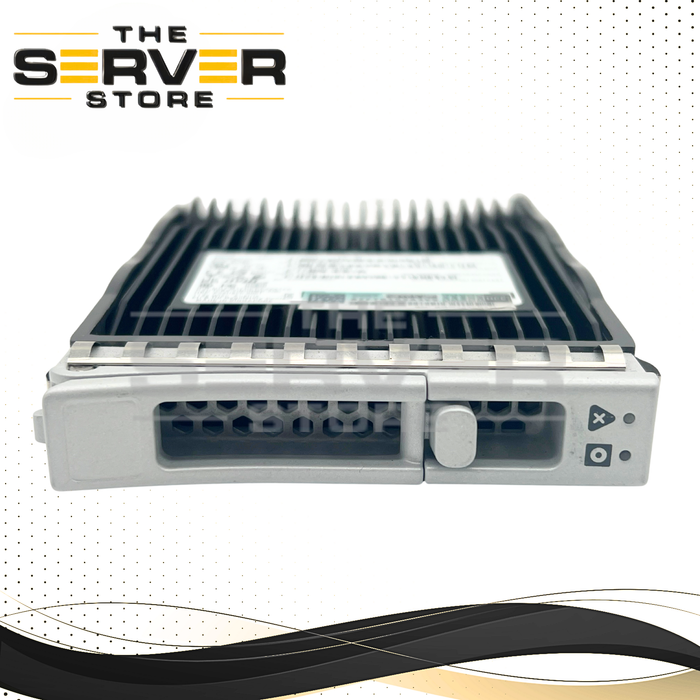

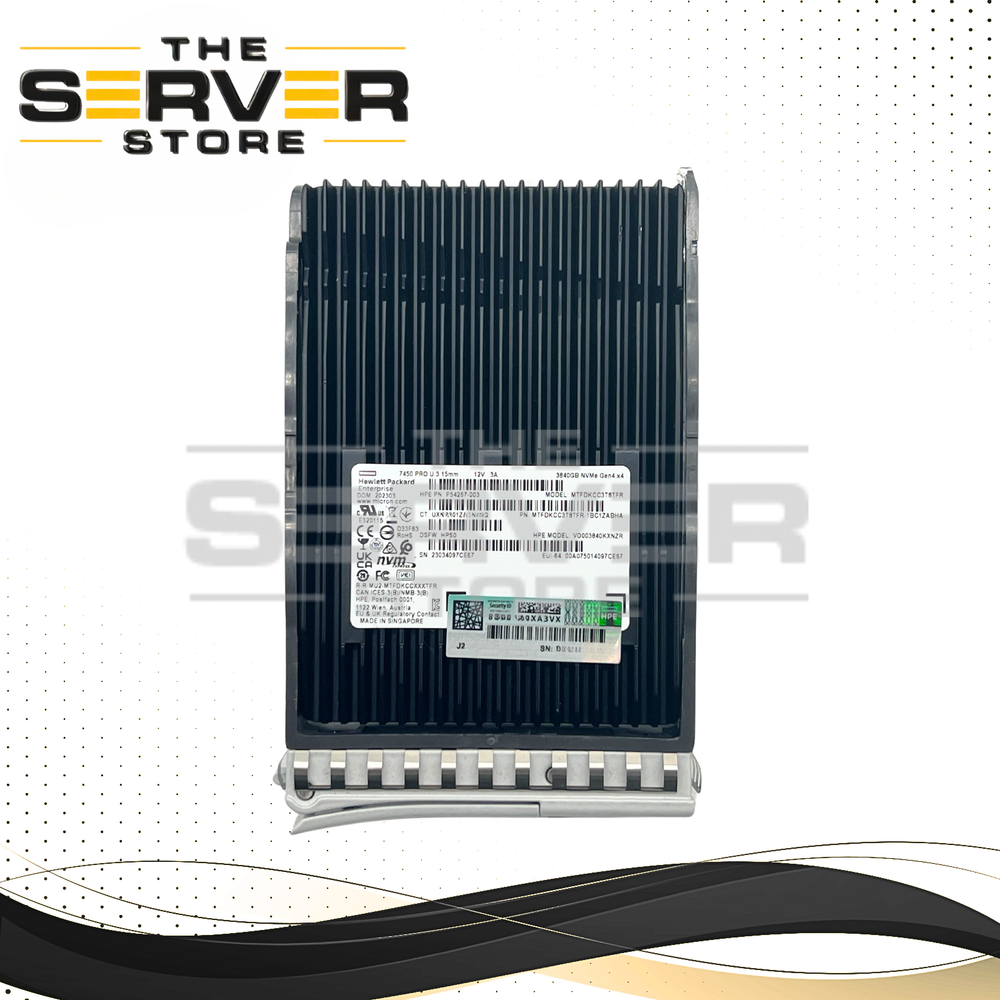

Micron 3.84TB NVMe U.3 G4 x4 RI 2.5" TCG Opal SSD 7450 Pro Series MTFDKCC3T8TFR for Cisco UCS C-Series Server

Micron 3.84TB NVMe U.3 PCIe Gen4 x4 RI SFF 2.5" 15mm TCG Opal SSD 7450 Pro Series MTFDKCC3T8TFR for Cisco UCS C-Series Server with Tray

The Micron 7450 Pro 3.84TB NVMe U.3 SSD (MTFDKCC3T8TFR) is an enterprise-grade, read-intensive (RI) solid-state drive engineered for high-performance data center and server environments. Built on PCIe Gen4 x4 NVMe architecture, it delivers low latency, high throughput, and strong endurance, making it ideal for cloud computing, virtualization, databases, and content delivery workloads.

Core Specifications

• Capacity: 3.84TB
• Interface: PCIe Gen4 x4, NVMe 1.4
• Form Factor: 2.5" SFF, 15mm height
• Connector: U.3 (backward compatible with U.2)
• NAND Type: 176-layer 3D TLC NAND
• Workload Type: Read Intensive (RI)
• Security: TCG Opal 2.01 Self-Encrypting Drive (SED)

Performance

• Sequential Read: Up to ~6,800 MB/s
• Sequential Write: Up to ~3,600 MB/s
• Random Read (4K): Up to ~1,000,000 IOPS
• Random Write (4K): Up to ~180,000 IOPS
• Latency: Ultra-low latency optimized for enterprise workloads

Endurance & Reliability

• Endurance: ~1 DWPD (Drive Writes Per Day)
• MTBF: 2.5 million hours
• Power Loss Protection: Yes
• Data Integrity: End-to-end data path protection

Cisco UCS Compatibility

This SSD is compatible with Cisco UCS C-Series servers that support NVMe U.2/U.3 drives when used with the appropriate Cisco 2.5" SFF tray:

• UCS M7 / M8 (Gen4/Gen5 full performance): C220 M7, C240 M7, C225 M7, C245 M7
• UCS M6 (Gen4 full performance): C220 M6, C240 M6, C225 M6, C245 M6
• UCS M5 (Gen3 – limited speed): C220 M5, C240 M5, C480 M5

Important Installation Notes

• Requires NVMe-enabled backplane for proper operation
• Must be installed in a Cisco-compatible 2.5" SFF drive tray
• Performance will be limited to PCIe Gen3 speeds in older M5 systems
• Cisco management tools may display the drive as non-Cisco firmware, but functionality remains unaffected

This Micron 7450 Pro SSD provides a strong balance of performance, endurance, and security, making it a reliable storage solution for modern Cisco UCS server infrastructures.
