Micron 1.6TB NVMe HE PCIe Gen 3.0 x4 HH-HL Add-in Card (AIC) SSD 9100 PRO MTFDHAX1T6MCE-1AN1ZABYY

Micron 1.6TB NVMe HE PCIe Gen3 x4 HHHL AIC SSD 9100 PRO MTFDHAX1T6MCE-1AN1ZABYY
Other Related Part Number: MTFDHAX1T6MCE

Overview

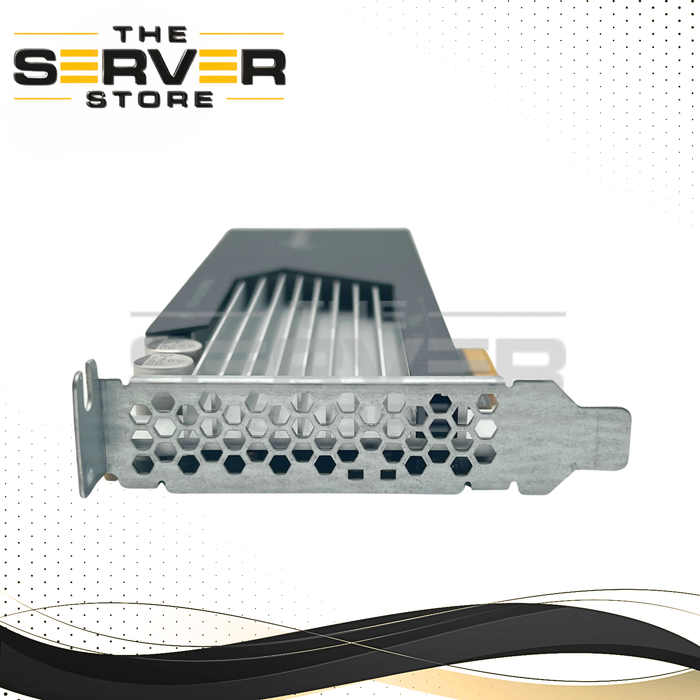

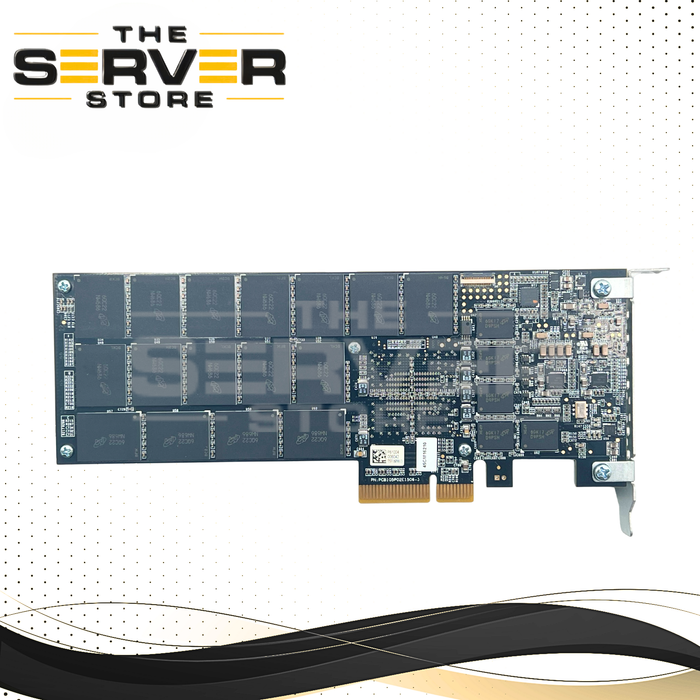

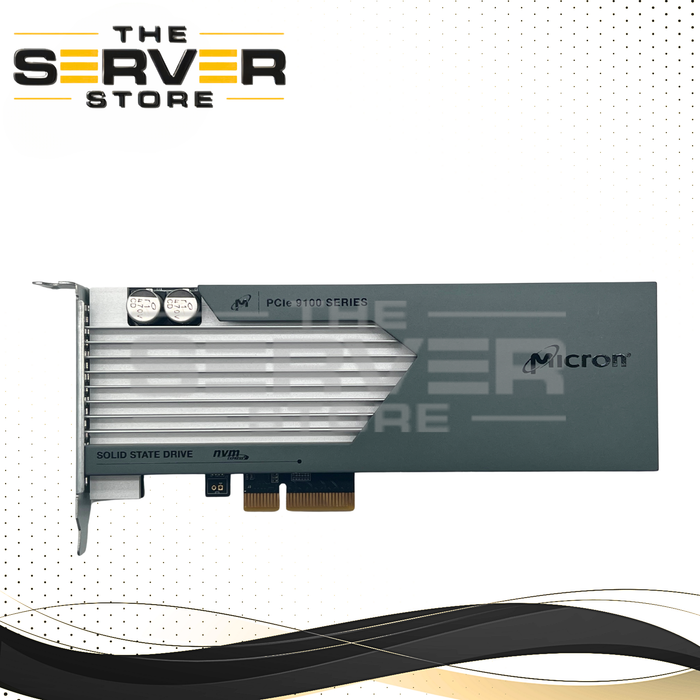

The Micron 9100 PRO (MTFDHAX1T6MCE-1AN1ZABYY) is a high-endurance, enterprise-class NVMe SSD designed for read-intensive and mixed workloads. Built in a Half-Height Half-Length (HHHL) Add-In Card (AIC) form factor, it connects via PCIe Gen3 x4 and is optimized for data center environments requiring high IOPS and low latency.

Core Specifications

• Capacity: 1.6TB
• Interface: PCIe Gen3 x4 (NVMe 1.1)
• Form Factor: HHHL AIC (Add-In Card)
• NAND Type: 16nm MLC
• Sequential Read: Up to 2,800 MB/s
• Sequential Write: Up to 1,300 MB/s
• Random Read (4K): Up to 700,000 IOPS
• Random Write (4K): Up to 120,000 IOPS
• Latency: ~120µs (read) / ~30µs (write)

Endurance & Reliability

• Endurance: ~4.8PB TBW
• DWPD: ~1.6 (5 years)
• MTBF: 2.0 million hours
• Data Protection: Power-loss protection with onboard capacitors

Power & Environmental

• Idle Power: ~7W
• Typical Power: ~21W
• Max Power: Up to 30W
• Operating Temperature: 0°C to 50°C

Dell PowerEdge Servers

16th / 17th Gen:
R660, R760, R7625

14th / 15th Gen:
R640, R740, R650, R750

13th Gen:
R530, R630, R730, T630, R930

12th Gen:
R620, R720, T620 (storage only; no native NVMe boot)

11th Gen:
R610, R710, T610 (limited support; PCIe Gen2 speeds, no boot)

HPE ProLiant Servers

Gen10 / Gen11:
DL360 Gen10/Gen11, DL380 Gen10/Gen11, ML350 Gen10

Gen9:
DL360 Gen9, DL380 Gen9 (native NVMe support and boot)

Gen8:
DL360p Gen8, DL380p Gen8 (storage only, no native boot)

Gen7 & Older:
DL360 G7, DL380 G7 (limited performance, no NVMe boot)

Supported Platforms:
DL Series (Rack), ML Series (Tower), Apollo (PCIe-enabled nodes)

Supermicro Servers / Motherboards

X11 / X12 / X13 Series:
X11DPi, X12SPW, X13SEW (full NVMe + UEFI boot support)

X10 Series:
X10DRi, X10SRL, X10SDV (boot supported with updated BIOS)

X9 Series:
X9DR3, X9SCM (storage only, no native NVMe boot)

X8 & Older:
X8DTi, X8DTEL (limited performance, no boot support)

Common Systems:
SYS-5017C-M, SYS-1028, SYS-2029, SYS-6029

Cisco UCS Servers

M5 / M6 / M7 Generations:
C220 M5/M6/M7, C240 M5/M6/M7 (full NVMe + UEFI boot support)

M4 Generation:
C220 M4, C240 M4 (native NVMe support with firmware updates)

M3 Generation:
C220 M3, C240 M3 (storage only, no boot support)

Notes:

• Compatible primarily with C-Series rack servers
• Requires appropriate PCIe riser (x8/x16)
• Not directly supported in B-Series blades without expansion sled

Lenovo Servers

ThinkSystem V2 / V3:
SR630 V3, SR650 V3, ST650 V2 (full NVMe + boot support)

ThinkSystem Gen1:
SR630, SR650, ST550 (native NVMe boot support)

ThinkServer Series:
RD650, TD350 (storage + UEFI boot support)

System x (Legacy):
x3650 M5, x3550 M5 (storage only, no native boot)

• Requires available PCIe x4, x8, or x16 slot
• Backward compatible with PCIe Gen4/Gen5 (runs at Gen3 speed)
• UEFI BIOS required for boot functionality
• Not suitable for blade servers without PCIe expansion support
• Requires high airflow (~300 LFM) for proper cooling

• Windows: 8.1, 10, 11, Server 2012 R2+
• Linux: Kernel 3.3+ (Ubuntu, RHEL, CentOS)
• VMware ESXi 6.0+
• Hyper-V, Citrix Hypervisor

• Ideal for caching, virtualization, and high-speed storage tiers
• Best used in rack servers with strong airflow
• May require BIOS updates for full NVMe boot support on older systems
