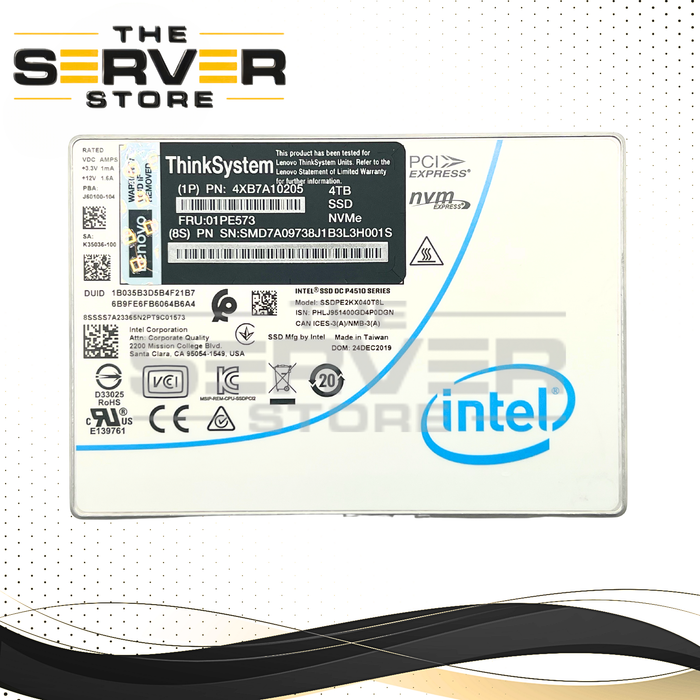

Lenovo 4TB NVMe U.2 PCIe Gen 3.0 x4 2.5" SSD Intel P4510 SSDPE2KX040T8L 01PE573 4XB7A10205

The Lenovo ThinkSystem Intel P4510 4TB (Part Numbers: 01PE573 / 4XB7A10205 / SSDPE2KX040T8L) is a high-performance enterprise NVMe SSD designed for read-intensive data center workloads. Built with Intel 64-layer 3D TLC NAND technology and leveraging a PCIe 3.0 x4 interface, this drive delivers exceptional throughput, low latency, and enterprise-grade reliability for modern server environments.

Optimized for Lenovo ThinkSystem platforms, the P4510 4TB model provides a balance of strong sequential speeds, high random IOPS, and long-term endurance suitable for cloud infrastructure, virtualization, analytics, and content delivery applications.

• Capacity: 4TB

• Interface: PCIe 3.1 x4, NVMe 1.2

• Form Factor: 2.5" U.2 (15mm height)

Performance Metrics

• Sequential Read: Up to 3,000 MB/s

• Sequential Write: Up to 2,900 MB/s

• Random Read (4KB): Up to 636,500 IOPS

• Random Write (4KB): Up to 111,500 IOPS

• Typical Read Latency: 9–10 µs

• Typical Write Latency: 11–13 µs

• Endurance Rating: 0.85 Drive Writes Per Day (DWPD) for 5 years

• Total Bytes Written (TBW): Approximately 6.3–6.45 PB

• MTBF: 2,000,000 hours

• Data Protection Features:

  • Enhanced Power Loss Data Protection (PLP)

  • End-to-End Data Path Protection

Designed for consistent enterprise reliability with safeguards against data corruption and unexpected power events.

• Form Factor: 2.5-inch U.2 (15mm Z-height)

• Interface Protocol: NVMe over PCIe 3.0 x4

• Idle Power Consumption: ~5W

• Active Write Power: Up to 20.5W–21.5W

• Security: 256-bit AES Hardware Encryption

• TCG Opal 2.0: Supported on select variants

• SSDPE2KX040T8L

• 01PE573

• 4XB7A10205

The Lenovo ThinkSystem Intel P4510 4TB NVMe SSD delivers enterprise-class performance, low latency, and strong endurance, making it an excellent solution for high-throughput, read-optimized data center storage deployments.
