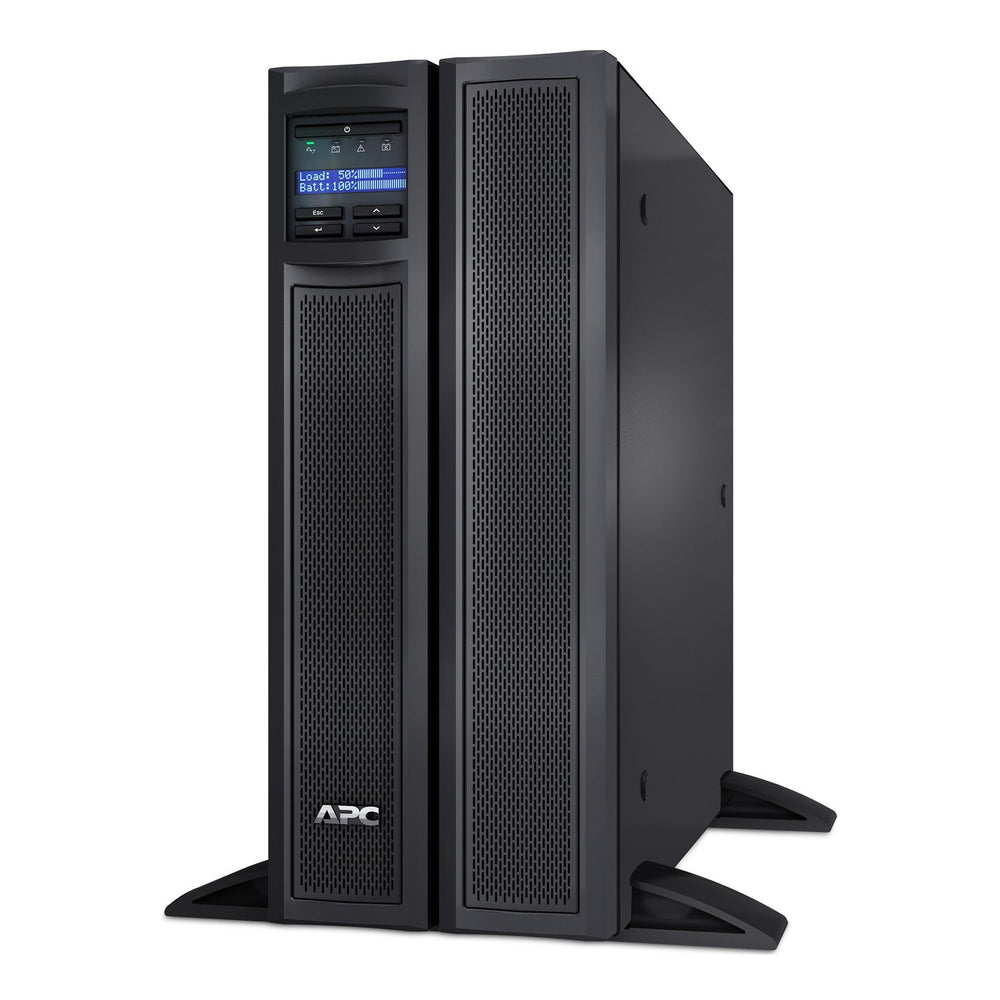

APC SMX2000LVUS - Smart-UPS X 2000VA Rack/Tower UPS
APC SMX2000LVUS - Smart-UPS X 2000VA Rack/Tower UPS

APC SMX2000LVUS - Smart-UPS X 2000VA Rack/Tower UPS

por APC
R$ 38.940,00
R$ 26.232,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 1920VA / 1800W, Line-Interactive 4U Rack/Tower, Pure Sine Wave Output, LCD Console, SmartSlot Expandability [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX2000LVUS
Product Type Smart-UPS X, Line-Interactive (Extended Runtime)
Form Factor Rack/Tower Convertible 4U
Dimensions (H x W x D) 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm)
Weight 85.19 lb (38.64 kg)
Color Black
Number of Rack Units 4U
Cable Length 8 ft (2.4 m)
Cooling Not specified
[/properties]

[specifications]

Capacity 1920 VA / 1800 W
Input Voltage 120 V (other: 100 V, 110 V, 127 V) • Adjustable: 75–154 V; Operating: 70–153 V
Input Connection Type NEMA 5-20P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 120 V (other: 100 V, 110 V, 127 V)
Output Connections 6 × NEMA 5-15R, 3 × NEMA 5-20R, 1 × NEMA L5-20R
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 2–4 ms (typical 4 ms, max 8 ms)
Battery Type Lead-Acid
Battery Recharge Time 3 hours
Battery Life 3–5 years
Replacement Battery APCRBC143US
Battery Charge Power 229 W rated
Surge Energy Rating 540 J
Acoustic Noise 55 dBA
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 0–95%
Altitude 0–10,000 ft operating
Communications Multi-function LCD, LED status display, alarms, USB, RS-232, SmartSlot, EPO
Certifications BSMI, CSA, NOM, TÜV, VCCI Class A, TAA compliant
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
[/specifications]

[accesories]

Rack Mounting Hardware & Brackets Included in the box
Rack Mounting Support Rails Included in the box
Removable Support Feet Included in the box
Smart-UPS Signalling RS-232 Cable Included in the box
USB Cable Included in the box
Documentation Installation guide, Documentation CD, CD with software
[/accesories]

The APC Smart-UPS X SMX2000LVUS is a TAA-compliant 2000VA uninterruptible power supply designed to safeguard servers, network switches, routers, and business-critical IT systems. Delivering 1920VA/1800W in a compact 4U rack/tower form factor, it combines pure sine wave output, line-interactive topology, and an advanced LCD interface. With SmartSlot expandability and extended runtime capability, it ensures reliable power continuity for enterprise and government applications.

  • 2000VA / 1800W Capacity: Reliable backup power for servers, storage, and network hardware.
  • Line-Interactive Topology: Automatic Voltage Regulation ensures stable input without unnecessary battery usage.
  • Pure Sine Wave Output: Maintains consistent, high-quality power for sensitive IT equipment.
  • SmartSlot Expandability: Supports network management cards for advanced remote control.
  • LCD Control Panel: Multi-function display for monitoring and configuration on-site.
  • Extended Runtime Ready: Compatible with additional battery packs for longer backup.
  • Comprehensive Protection: 540 J surge suppression with full-time noise filtering.

The SMX2000LVUS employs line-interactive topology with Automatic Voltage Regulation (AVR), ensuring smooth power delivery during brownouts or surges. By correcting voltage fluctuations without relying on batteries, AVR reduces wear and extends overall UPS service life.

Its sine wave output is critical for safeguarding enterprise-grade servers, storage arrays, and sensitive networking devices. This clean waveform prevents malfunctions that can arise from less precise stepped-approximation UPS models.

With SmartSlot technology, the unit supports expansion with optional network management cards, allowing administrators to remotely monitor, control, and automate power management across distributed sites. Coupled with the intuitive LCD status console, it provides both remote and local operational visibility.

  • Enterprise and government servers requiring TAA compliance
  • Networking infrastructure such as switches, routers, and hubs
  • Data closets, branch offices, and edge computing sites
  • Retail POS systems requiring continuous uptime
  • Healthcare and finance environments with mission-critical systems

Q1: How is the SMX2000LVUS installed?
A: This model is a 4U rack/tower convertible UPS. It includes rack rails, brackets, and support feet for versatile installation.

Q2: What performance can I expect?
A: The UPS delivers 1920VA / 1800W of sine wave power with a 2–4 ms transfer time. Runtime varies by connected load and can be extended with external batteries. Actual runtime depends on load type, age of batteries, and environmental factors.

Q3: How can the UPS be managed?
A: It features a front-panel LCD for local control and includes a SmartSlot for optional network management cards, enabling advanced monitoring and integration with enterprise management platforms.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 1920VA / 1800W, Line-Interactive 4U Rack/Tower, Pure Sine Wave Output, LCD Console, SmartSlot Expandability [/shortdesc]

[properties]

Brand APC by Schneider Electric
Model SMX2000LVUS
Product Type Smart-UPS X, Line-Interactive (Extended Runtime)
Form Factor Rack/Tower Convertible 4U
Dimensions (H x W x D) 17.01" x 7.01" x 19.02" (43.2 x 17.8 x 48.3 cm)
Weight 85.19 lb (38.64 kg)
Color Black
Number of Rack Units 4U
Cable Length 8 ft (2.4 m)
Cooling Not specified
[/properties]

[specifications]

Capacity 1920 VA / 1800 W
Input Voltage 120 V (other: 100 V, 110 V, 127 V) • Adjustable: 75–154 V; Operating: 70–153 V
Input Connection Type NEMA 5-20P
Input Frequency 50/60 Hz ±3 Hz, auto-sensing
Output Voltage 120 V (other: 100 V, 110 V, 127 V)
Output Connections 6 × NEMA 5-15R, 3 × NEMA 5-20R, 1 × NEMA L5-20R
Waveform Type Sine wave
Topology Line Interactive
Transfer Time 2–4 ms (typical 4 ms, max 8 ms)
Battery Type Lead-Acid
Battery Recharge Time 3 hours
Battery Life 3–5 years
Replacement Battery APCRBC143US
Battery Charge Power 229 W rated
Surge Energy Rating 540 J
Acoustic Noise 55 dBA
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 0–95%
Altitude 0–10,000 ft operating
Communications Multi-function LCD, LED status display, alarms, USB, RS-232, SmartSlot, EPO
Certifications BSMI, CSA, NOM, TÜV, VCCI Class A, TAA compliant
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
[/specifications]

[accesories]

Rack Mounting Hardware & Brackets Included in the box
Rack Mounting Support Rails Included in the box
Removable Support Feet Included in the box
Smart-UPS Signalling RS-232 Cable Included in the box
USB Cable Included in the box
Documentation Installation guide, Documentation CD, CD with software
[/accesories]
Overview

The APC Smart-UPS X SMX2000LVUS is a TAA-compliant 2000VA uninterruptible power supply designed to safeguard servers, network switches, routers, and business-critical IT systems. Delivering 1920VA/1800W in a compact 4U rack/tower form factor, it combines pure sine wave output, line-interactive topology, and an advanced LCD interface. With SmartSlot expandability and extended runtime capability, it ensures reliable power continuity for enterprise and government applications.

Key Features & Benefits
  • 2000VA / 1800W Capacity: Reliable backup power for servers, storage, and network hardware.
  • Line-Interactive Topology: Automatic Voltage Regulation ensures stable input without unnecessary battery usage.
  • Pure Sine Wave Output: Maintains consistent, high-quality power for sensitive IT equipment.
  • SmartSlot Expandability: Supports network management cards for advanced remote control.
  • LCD Control Panel: Multi-function display for monitoring and configuration on-site.
  • Extended Runtime Ready: Compatible with additional battery packs for longer backup.
  • Comprehensive Protection: 540 J surge suppression with full-time noise filtering.
Technical Deep Dive

The SMX2000LVUS employs line-interactive topology with Automatic Voltage Regulation (AVR), ensuring smooth power delivery during brownouts or surges. By correcting voltage fluctuations without relying on batteries, AVR reduces wear and extends overall UPS service life.

Its sine wave output is critical for safeguarding enterprise-grade servers, storage arrays, and sensitive networking devices. This clean waveform prevents malfunctions that can arise from less precise stepped-approximation UPS models.

With SmartSlot technology, the unit supports expansion with optional network management cards, allowing administrators to remotely monitor, control, and automate power management across distributed sites. Coupled with the intuitive LCD status console, it provides both remote and local operational visibility.

Ideal Applications
  • Enterprise and government servers requiring TAA compliance
  • Networking infrastructure such as switches, routers, and hubs
  • Data closets, branch offices, and edge computing sites
  • Retail POS systems requiring continuous uptime
  • Healthcare and finance environments with mission-critical systems
Frequently Asked Questions (FAQs)

Q1: How is the SMX2000LVUS installed?
A: This model is a 4U rack/tower convertible UPS. It includes rack rails, brackets, and support feet for versatile installation.

Q2: What performance can I expect?
A: The UPS delivers 1920VA / 1800W of sine wave power with a 2–4 ms transfer time. Runtime varies by connected load and can be extended with external batteries. Actual runtime depends on load type, age of batteries, and environmental factors.

Q3: How can the UPS be managed?
A: It features a front-panel LCD for local control and includes a SmartSlot for optional network management cards, enabling advanced monitoring and integration with enterprise management platforms.
