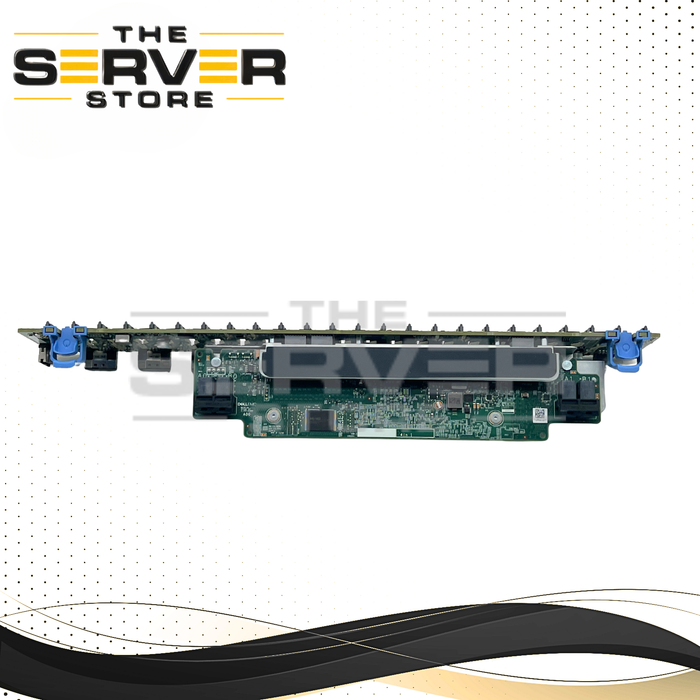

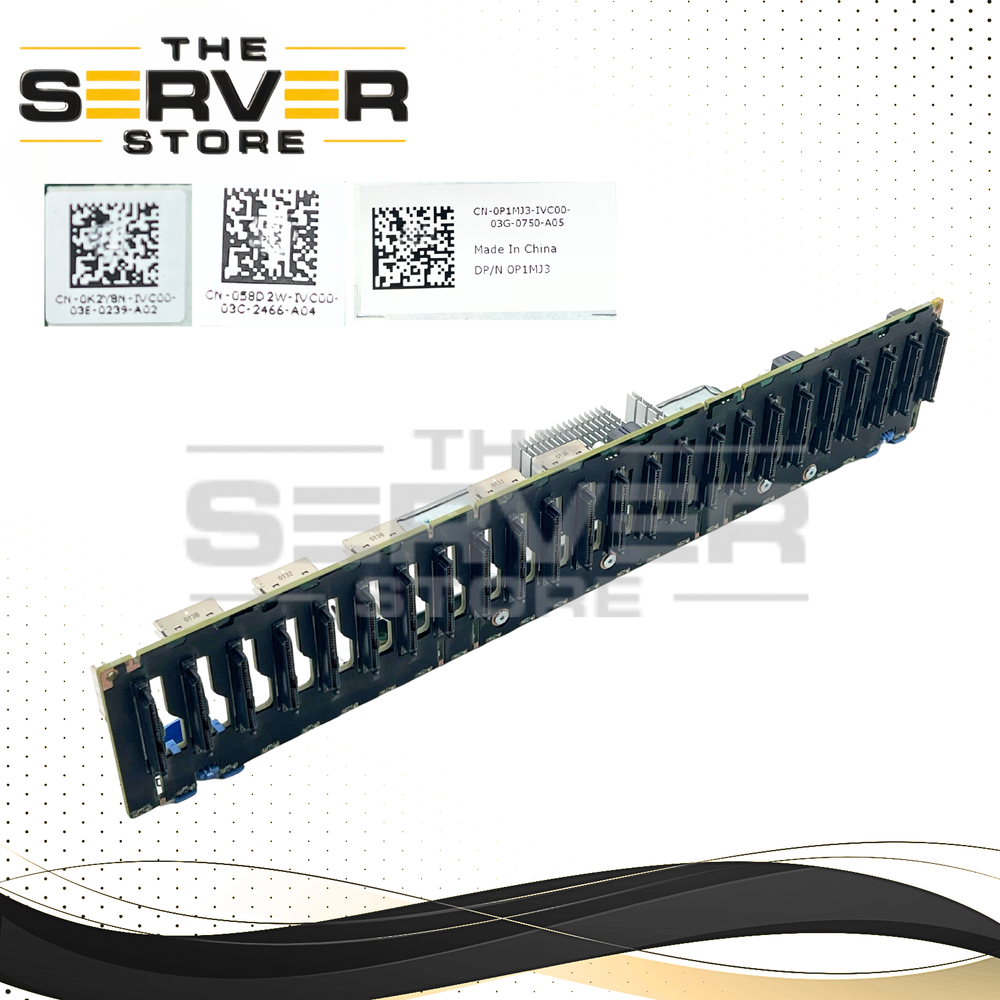

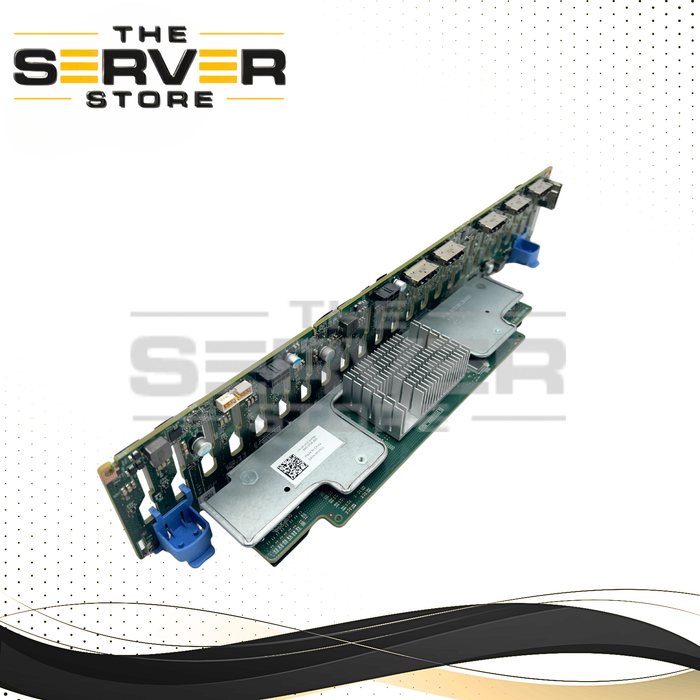

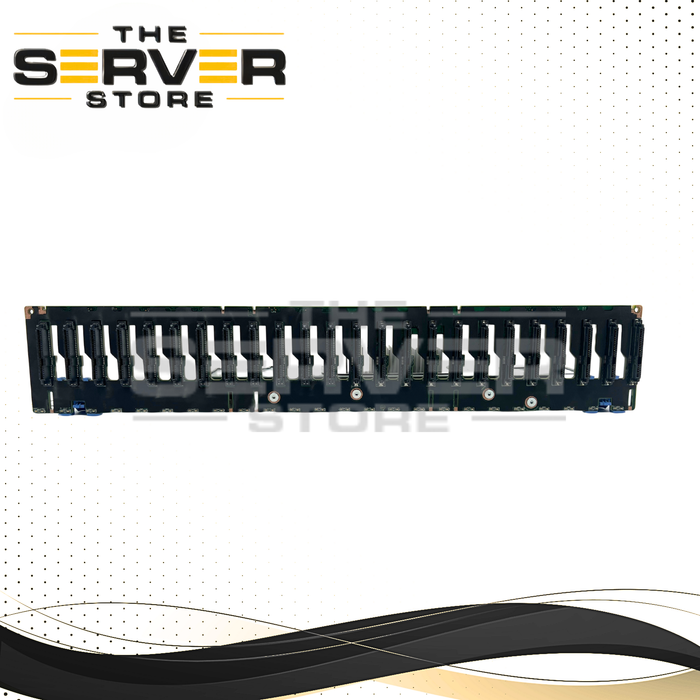

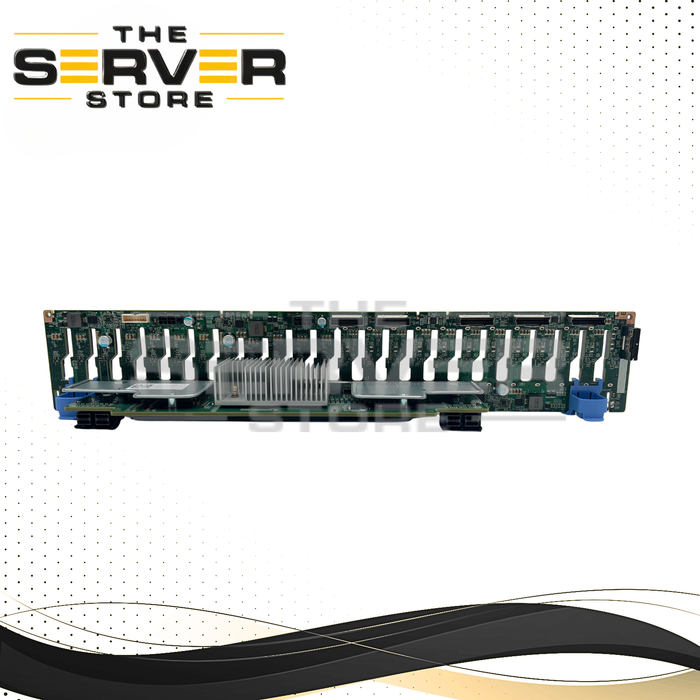

Dell Backplane 2.5" x 24 Bay 12 NVMe PowerEdge R740 R740XD P570F 0P1MJ3 P1MJ3 0K2Y8N K2Y8N

Genuine Dell EMC 24-Bay 2.5" SFF Backplane Assembly compatible with Dell PowerEdge R740, PowerEdge R740xd, and Dell EMC VxRail P570F servers. This backplane supports up to 24 x 2.5-inch drives and is designed for high-density enterprise storage environments, including SAS, SATA, and NVMe configurations.

The Dell EMC VxRail P570F is built on the same hardware platform as the Dell PowerEdge R740xd, making this backplane fully interchangeable across supported systems. Whether replacing a failed backplane or upgrading an existing storage configuration, this assembly provides a direct-fit solution.

Compatible Server Models

• Dell PowerEdge R740
• Dell PowerEdge R740xd
• Dell EMC VxRail P570F

Compatible Part Numbers

• 0P1MJ3
• P1MJ3
• 0K2Y8N
• K2Y8N
• 58D2W
• 058D2W

Key Features

• Supports 24 x 2.5" SFF drive bays
• Supports SAS, SATA, and NVMe drives
• Enterprise-grade Dell OEM hardware
• Direct replacement for original factory-installed backplane
• Fully compatible with Dell PowerEdge R740xd and VxRail P570F platforms
• Ideal for server repair, maintenance, or storage expansion

Compatibility Notes

The Dell EMC VxRail P570F is based on the Dell PowerEdge R740xd platform. As a result, the 0P1MJ3 and 0K2Y8N backplanes are fully compatible and interchangeable between:

• PowerEdge R740xd
• VxRail P570F
• PowerEdge R740 24-Bay SFF configurations

The 58D2W / 058D2W SAS Expander Daughterboard is commonly paired with these backplanes and is compatible with the same server platforms.

Included

• Dell 24-Bay 2.5" Backplane Assembly
• Part Number: 0P1MJ3 / P1MJ3 or 0K2Y8N / K2Y8N (depending on stock)
• Expander Board 58D2W / 058D2W (if included with listing)
